ZoneFlex 802.11ac Wave 2 multi-user MU-MIMO, supports dual-band 2.4 GHz (1x1:1) & 5 GHz (2x2:2), built-in BeamFlex+ world, 1 uplink 10/100/1000 interface and 2 10/100 Ethernet access interface, POE Gigabit input. Power adapter not included.
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Features and Benefits
As users bring more devices into hotel rooms, meeting rooms, and classrooms, Wi-Fi has become a critical amenity. But delivering great performance in every room can quickly become cost-prohibitive.

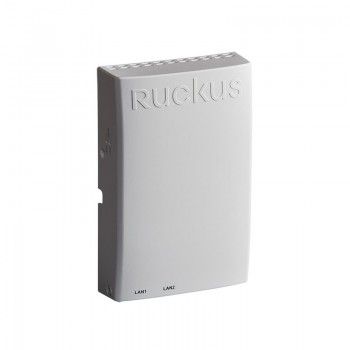

The RUCKUS H320 wall-mounted 802.11ac Wave 2 Wi-Fi access point and switch makes it easy to provide superior wired and wireless connectivity to every user and device. Designed for in-room deployments, the H320 can be discretely mounted over standard electrical junction boxes. With two Ethernet ports, it can securely connect IPTV set-tops, IP phones, and other wired devices without unsightly cabling, while delivering blazing-fast Wi-Fi.
Upgrade your in-room technology with the industry’s best Wi-Fi, along with converged wired connectivity in a single, cost-effective solution.
Specifications
General Specifications
| Antenna Gain | Up to 3 dBi |
| Antenna Patterns, per band | 4 |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 100 |
| Controller Support | Cloud Wi-Fi | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 1 x 1GbE | 2 x 10/100MbE |
| IoT Ready | No |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 150 Mb/s |
| PHY Rate at 5 GHz, maximum | 867 Mb/s |
| Radio Chains:Streams | 2x2:2 MU-MIMO 1x1:1 SU-MIMO |
| Rx Sensitivity at 2.4 GHz | -99 dBm |
| Rx Sensitivity at 5 GHz | -96 dBm |
| SmartMesh | No |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
Environmental Specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Specifications:
| ||||
|---|---|---|---|---|
|  |  |  |  |
Feature/Description | 802.11ac Wave 2 dual-concurrent wall switch with five GbE ports and BeamFlex+ | 802.11ac Wave 2 dual-concurrent wall switch with two 10/100MbE ports and BeamFlex+ | 802.11ac Wave2 dual-concurrent wall plate with built-in DOCSIS 3.0 cable modem | Mobile Indoor 802.11ac Wave 2 2x2:2 Wi-Fi AP with LTE Backhaul |
Maximum PHY rate | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 867 Mbps (5GHz) 150 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) |
Wi-Fi technology | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) |
Concurrent users | 100 | 100 | 100 | 512 |
Radio chains:streams |
2x2:2 | 5GHz: 2x2:2 MU MIMO 2.4GHz: 1x1:1 SU-MIMO |
2X2:2 |
2x2:2 |
Antenna patterns (per band) | 4 | 4 | 4 | 64 |
Antenna gain | Up to 1dBi | Up to 3dBi | Up to 3dBi | Up to 3dBi |
PD-MRC | ||||
Rx sensitivity (2.4/5GHz) | -99/-96dBm | -99/-96dBm | -96/-95dBm | -101/-95dBm |
ChannelFly | ||||
SmartMesh | — | (in future release) | ||
USB (IoT Ready) | — | |||
Ethernet ports |
5 x 1GbE | 2 x 10/100MbE 1 x 1GbE |
2 x 10/100MbE |
2 x 1GbE ports, RJ-45 |
Integrated BLE/ZigBee | — | — | — | — |
WLAN Control and Management | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed | · SmartZone · Unleashed |
