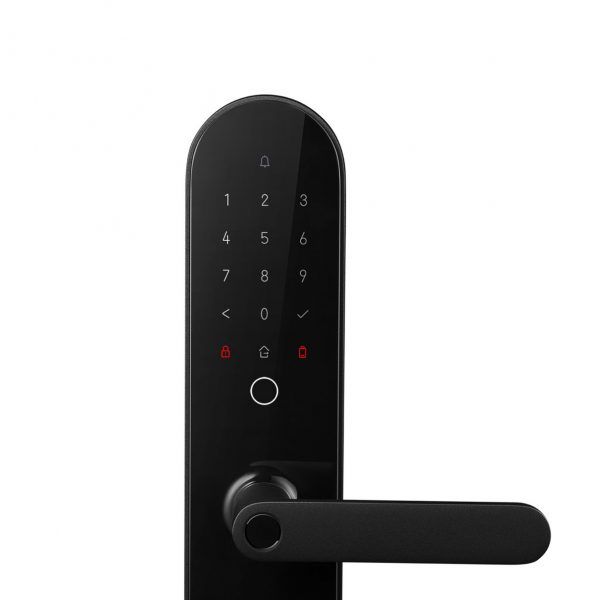

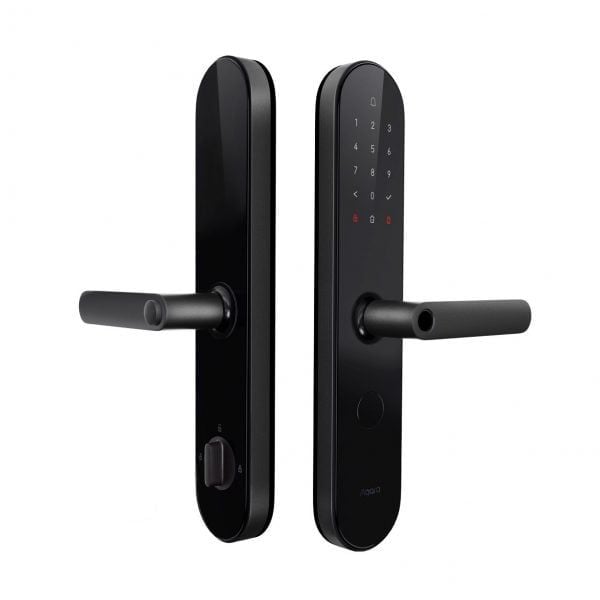

Aqara N100 Smart Door Lock ZNMS16LM Zigbee Edition

Xiaomi Aqara N100 – Smart lock with Dual Security Chip technology

Aqara N100 is a smart lock line compatible with Apple HomeKit and Mijia systems of Xiaomi company. This is the first smart door lock using Mijia and Apple dual security chip . The Aqara N100 features many new breakthroughs in functionality, durability and smart connectivity. The product is integrated with today's most popular and modern security technologies such as fingerprint, password, NFC and Bluetooth. At the same time, the highlight of this product is the ability to combine with devices and accessories in the Aqara ecosystem. In order to create the most modern, smart, comfortable and safe living environment for users.

Built-in 3D . semiconductor fingerprint recognition

Aqara N100 smart door lock uses 3D semiconductor fingerprint recognition. Unique groove design, large fingerprint recognition area. Not only fast fingerprint recognition, but also more secure and reliable than traditional optical unlock. The fingerprint recognition speed is ≤300ms and the recognition rate is as high as 98.7%.

In addition, the Aqara N100 applies a financial fingerprint detection algorithm produced by the Swedish company Precise Biometrics . Support rich fingerprint database, image matching point recognition algorithm, faster and more secure.

Hold the handle naturally, open the door in one step

The fingerprint recognition design right on the handle helps users to hold the hand naturally. Touch the fingerprint to the recognition area then turn the door, all in one step. Not too difficult to use, as well as ensuring the most convenience for your family.

Using dual security chip from Apple and Mijia

In addition to quick and easy unlocking, the Aqara N100 smart door lock is compatible with MioT and Apple HomeKit systems. Mijia custom security chip (MJSC) and Apple MFi authentication chip.

Each chip has its own security feature that allows encryption of all content over Bluetooth communication. The Apple Security Chip (MFi) can encrypt data end-to-end. User usage data will not be uploaded to Apple's cloud and cannot be shared to effectively protect user information.

C-lock cylinder enhances security

Aqara N100 smart door lock uses the most advanced class C lock cylinder in the standard of mechanical anti-theft core. While the clutch transmission is located in the center of the lock body, the main control chip is located on the rear panel. Even if the front panel is damaged or using an unorthodox unlocking tool. Still can't unlock the lock.

High anti-theft ability

Smart door lock Aqara N100 has the ability to alarm when it detects wrong fingerprint / password. If the external lock fails, the alarm mechanism will be activated immediately. At the same time, the door lock will alarm to the APP through the Bluetooth router port to perform security monitoring.

The door lock has many built-in sensors, which can comprehensively detect the state of the lock blade. And accurately distinguish user activity according to the state of the lock blade.

Seven unlocking methods

Rich unlocking methods can better meet users' needs, including:

1. 3D fingerprint recognition, recognition speed ≤300ms, accuracy 98.7%.
2. Numeric password (6-10 characters in length)
3. Temporary password (one-time password, password within the specified time)
4. NFC tag/smart watch
5. Bluetooth
6. Mechanical key
7. Unlock with Apple HomeKit app, Aqara Home

Supports MioT and Apple HomeKit smart linking

With the Mijia App or Apple HomeKit, the N100 can be linked to a variety of smart devices . You can set the context such as: Open the door to turn on the light in the evening, automatically turn on the security mode after 11pm, Open the door at 11am for the maid...

The product has  a thickness of 23.5+/- 0.2mm , so customers need to determine the type of door being used at home with this large thickness to be suitable for installation. In addition, the manufacturer also recommends using  Aqara N100 Zigbee Edition  with knock-on doors, fire-proof doors to set the best security effect!

• SKU: ZNMS16LM
• Product size: 380.7×76.8×23.5mm
• Material: Aluminum alloy
• Coating: Anti-fouling
• Battery: AA x 8
• Battery life: about 18 months
• Charging port: USB-C
• Product weight: 4200 grams
• Package weight: 5400 grams
• Bluetooth: v5.0
• Memory: Fingerprint x 50, Permanent password x 50, NFC x 25, Temporary password x 25, One-time password x 8.
• Standard: GA 374-2019, GA/T 73-2015 (Lock cylinder), GB21556-2008
• Operating temperature: -25 degrees Celsius to +70 degrees Celsius
• Security level: OLD
