Aruba 7005

Thương hiệu: Aruba Networking

Loại: Aruba Gateways & Controllers

Giá: (chưa bao gồm VAT)

HPE JW633A - Aruba 7000 Series Controllers

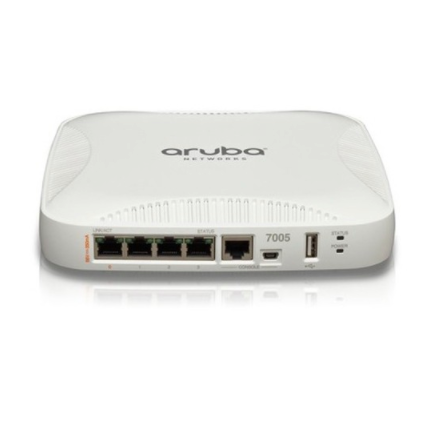

Aruba 7005 (RW) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller

Văn Phòng Công Ty

HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM

0907771575

(Xem bản đồ)

HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM

0987229729

(Xem bản đồ)

VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

0987229729

(Xem bản đồ)

MIỄN PHÍ VẬN CHUYỂN

THANH TOÁN ĐẢM BẢO

HỖ TRỢ 24/7

HOÀN TRẢ MIỄN PHÍ

W633A is the Aruba 7005 (RW) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller. Aruba 7000 Series Mobility Controllers optimize cloud services and secure enterprise applications for hybrid WAN at branch offices, while reducing the cost and complexity of deploying and managing the network.

Quick Spec

Table 1 shows the quick spec.

SKU	JW633A
Product Model	Aruba 7005 (RW) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller
Maximum campus AP licenses	16
Maximum remote AP licenses	16
Maximum concurrent users/devices	1,024
Maximum VLANs	4,094
Auto-negotiating 10/100/1000BASE-T	4
Dimension (H × W × D)	4.1 cm x 20 cm x 20 cm (1.6” x 7.9” x 7.9”)
Weight	0.92 kg (2.03 lbs)

JW633A Specification

JW633A Specification
Product Model	Aruba 7005 (US) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller
Maximum campus AP licenses	16
Maximum remote AP licenses	16
Maximum concurrent users/devices	1,024
Maximum VLANs	4,094
Active firewall sessions	16,384
Concurrent GRE tunnels	256
Concurrent IPsec sessions	512
Mobility Access Switch tunneled-node ports	512
Firewall throughput	2 Gbps
Encrypted throughput (3DES, AES-CBC)	1.2 Gbps
Encrypted throughput (AES-CCM)	1.6 Gbps
Form factor/footprint	Compact
Auto-negotiating 10/100/1000BASE-T	4
Gigabit Ethernet ports (GBIC or SFP)	N/A
USB 2.0	Yes
Management/status LEDs	Yes (1)
LINK/ACT and status LEDs	No
LCD panel and navigation buttons	No
Console port	Yes (micro USB/RJ-45)
Out-of-band management port	No
PoE Role/Mode	Powered Device (PD)
PoE In or Out	In – Port 0
Number of PoE+ capable Ports	-
Max concurrent of PoE Ports	-
Max concurrent PoE+ Ports	-
PoE Power Budget	-
Dimension (H × W × D)	4.1 cm x 20 cm x 20 cm (1.6” x 7.9” x 7.9”)
Weight	0.92 kg (2.03 lbs)
MTBF (hours, @ 25C)	323,896
Operating temperature	0° C to 40° C
Storage temperature	-40° C to 70° C
Humidity/storage humidity	10% to 95%,
NC Operating altitude	10,000 feet
Acoustic noise	0 dBA (fanless)
Maximum power consumption	16.6W (with USB)
Safety certifications	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition NOM (obtained by partners and distributors)
Electromagnetic emissions certifications	FCC Part 15 Class B CE AS/NZS CISPR22 Class B CISPR22 Class A (7010, 7024, 7030), Class B (7005) EN55022 Class A (7010, 7024, 7030), Class B (7005) ICES-003 Class A (7010, 7024, 7030), Class B (7005) VCCI Class A (7010, 7024, 7030), Class B (7005) EN61000-3-2 EN61000-3-3 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, AS/NZS 3548 KN22 Class B KCC CNS13438 Class B EN55024/CISPR24 KN24 Industry Canada Class B CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Telco	Common Language Equipment Identifier (CLEI) Code
Regulatory SKU information	ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030)
Minimum ArubaOS Release	7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0
