JX927A is the Aruba 7008 (RW) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller. Aruba 7000 Series Mobility Controllers optimize cloud services and secure enterprise applications for hybrid WAN at branch offices, while reducing the cost and complexity of deploying and managing the network.
Quick Spec
Table 1 shows the quick spec.
SKU | JX927A |
Product Model | Aruba 7008 (RW) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller |
Maximum campus AP licenses | 16 |
Maximum remote AP licenses | 16 |
Maximum concurrent users/devices | 1,024 |
Maximum VLANs | 4,094 |
Auto-negotiating 10/100/1000BASE-T | 8 |
Dimension (H × W × D) | 4.2 cm x 20.32 cm x 20.32 cm (1.65” x 8.0” x 8.0”) |
Weight | 1.0 kg (2.2 lbs) |
Product Details

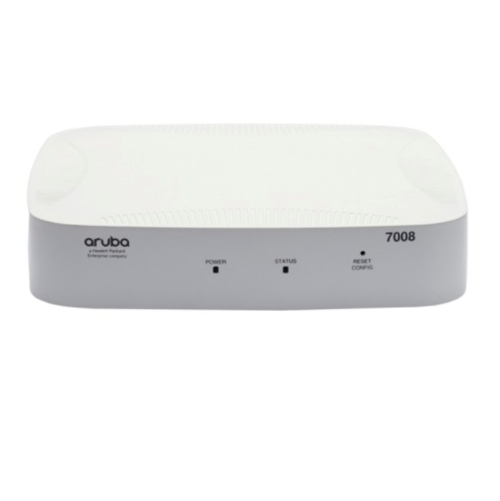

Figure 1 shows the front panel of Aruba 7008 controller.
Note:
Indicators: ① POWER ② STATUS ③ RESET CONFIG

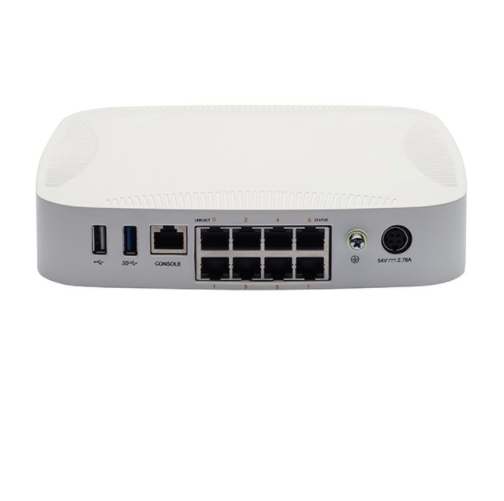

Figure 2 shows the back panel of Aruba 7008 controller.
Note:
① USB ② Console Port ③ 8 x Auto-negotiating 10/100/1000BASE-T
Table 2 shows the performance and capacity of Aruba 7000 controllers.
Model | 7005 | 7008 | 7010 | 7024 | 7030 |
Maximum campus AP licenses | 16 | 16 | 32 | 32 | 64 |
Maximum remote AP licenses | 16 | 16 | 32 | 32 | 64 |
Maximum concurrent users/devices | 1,024 | 1,024 | 2,048 | 2,048 | 4,094 |
Maximum VLANs | 4,094 | 4,094 | 4,094 | 4,094 | 4,094 |
Active firewall sessions | 16,384 | 16,384 | 32,768 | 32,768 | 65,536 |
Concurrent GRE tunnels | 256 | 256 | 512 | 512 | 1,024 |
Concurrent IPsec sessions | 512 | 512 | 1,024 | 1,024 | 2,048 |
Mobility Access Switch tunneled-node ports | 512 | 512 | 1,024 | 1,024 | 2,048 |
Firewall throughput | 2 Gbps | 2 Gbps | 4 Gbps | 4 Gbps | 8 Gbps |
Encrypted throughput (3DES, AES-CBC) | 1.2 Gbps | 1.2 Gbps | 2.4 Gbps | 2.4 Gbps | 2.4 Gbps |
Encrypted throughput (AES-CCM) | 1.6 Gbps | 1.6 Gbps | 3.4 Gbps | 3.4 Gbps | 4 Gbps |
JX927A Specification
JX927A Specification | |
Product Model | Aruba 7008 (RW) 8p 100W PoE+ 10/100/1000BASE-T 16 AP and 1K Client Controller |
Maximum campus AP licenses | 16 |
Maximum remote AP licenses | 16 |
Maximum concurrent users/devices | 1,024 |
Maximum VLANs | 4,094 |
Active firewall sessions | 16,384 |
Concurrent GRE tunnels | 256 |
Concurrent IPsec sessions | 512 |
Mobility Access Switch tunneled-node ports | 512 |
Firewall throughput | 2 Gbps |
Encrypted throughput (3DES, AES-CBC) | 1.2 Gbps |
Encrypted throughput (AES-CCM) | 1.6 Gbps |
Form factor/footprint | Compact |
Auto-negotiating 10/100/1000BASE-T | 8 |
Gigabit Ethernet ports (GBIC or SFP) | N/A |
USB 2.0 | Yes |
Management/status LEDs | Yes (2) |
LINK/ACT and status LEDs | No |
LCD panel and navigation buttons | No |
Console port | Yes (micro USB/RJ-45) |
Out-of-band management port | No |
PoE Role/Mode | Power Source Equipment (PSE) |
PoE In or Out | Out |
Number of PoE+ capable Ports | 8 |
Max concurrent of PoE Ports | 8 |
Max concurrent PoE+ Ports | 3 |
PoE Power Budget | 100W |
Dimension (H × W × D) | 4.2 cm x 20.32 cm x 20.32 cm (1.65” x 8.0” x 8.0”) |
Weight | 1.0 kg (2.2 lbs) |
MTBF (hours, @ 25C) | 300,000 |
Operating temperature | 0° C to 40° C |
Storage temperature | -40° C to 70° C |
Humidity/storage humidity | 10% to 95%, |
NC Operating altitude | 10,000 feet |
Acoustic noise | 0 dBA (fanless) |
Maximum power consumption | 126W with PoE (26W without PoE) |
Safety certifications | UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition NOM (obtained by partners and distributors) |
Electromagnetic emissions certifications | FCC Part 15 Class B CE AS/NZS CISPR22 Class B CISPR22 Class A (7010, 7024, 7030), Class B (7005) EN55022 Class A (7010, 7024, 7030), Class B (7005) ICES-003 Class A (7010, 7024, 7030), Class B (7005) VCCI Class A (7010, 7024, 7030), Class B (7005) EN61000-3-2 EN61000-3-3 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, AS/NZS 3548 KN22 Class B KCC CNS13438 Class B EN55024/CISPR24 KN24 Industry Canada Class B CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC |
Telco | Common Language Equipment Identifier (CLEI) Code |
Regulatory SKU information | ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030) |
Minimum ArubaOS Release | 7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0 |
