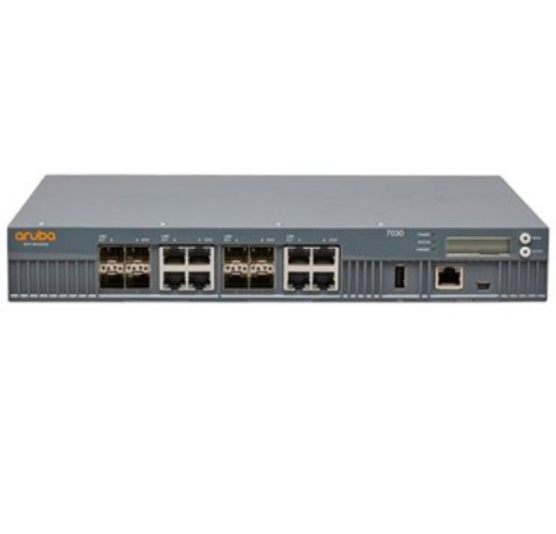

The 7000 Series Mobility Controller running ArubaOS delivers industry-leading network services that maximize Wi-Fi performance, ensure seamless roaming, and extends secure VPN access for Remote APs, Instant APs and VIA VPN clients.
The 7000 Series also serves as the key policy enforcement agent within the Dynamic Segmentation solution. Enforcement is accomplished through an industry-first user firewall (PEF), built-in Layer 7 application visibility and control, and web content filtering (WebCC).
As part of a controller cluster managed by Aruba's Mobility Master, the 7000 Series can take advantage of the full ArubaOS feature set, including centralized configuration hierarchy, AI-powered AirMatch, live firmware upgrades and secure multi-tenant SSID segmentation (MultiZone).
With support for up to 64 access points (APs), 24 Ethernet ports, and multiple WAN connections, the 7000 Series can provide up to 6 Gbps of firewall throughput—plenty of capacity for the most demanding distributed enterprise environments.
| PERFORMANCE AND CAPACITY |
|---|
| FEATURES | 7005 | 7008 | 7010 | 7024 | 7030 |
|---|
| Maximum campus or remote AP licenses | 16 | 16 | 32 | 32 | 64 | | Maximum concurrent users/devices | 1,024 | 1,024 | 2,048 | 2,048 | 4,096 | | Maximum VLANs | 4,096 | 4,096 | 4,096 | 4,096 | 4,096 | | Active firewall sessions | 64k | 64k | 64k | 64k | 64k | | Concurrent GRE tunnels | 256 | 256 | 512 | 512 | 1,024 | | Concurrent IPsec sessions | 1,024 | 1,024 | 2,048 | 2,048 | 4,096 | | Concurrent SSL sessions | 1,024 | 1,024 | 2,048 | 2,048 | 4,096 | | Firewall throughput (Gbps) | 4 | 4 | 8 | 8 | 8 | | Wired Bridged throughput (Gbps) | 4 | 4 | 8 | 8 | 8 | | Encrypted throughput 3DES (Gbps) | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 | | Encrypted throughput AES-CBC-256 (Gbps) | 1.3 | 1.3 | 2.6 | 2.6 | 2.6 | | Encrypted throughput AES-CCM (Gbps) | 2.0 | 2.0 | 3.4 | 3.4 | 4.0 | | Encrypted throughput AES-GCM-256 (Gbps) | 1.7 | 1.7 | 3.3 | 3.3 | 3.4 |
|
| INTERFACES AND INDICATORS |
|---|
| FEATURES | 7005 | 7008 | 7010 | 7024 | 7030 |
|---|
| Form factor/footprint | Desktop/fanless | Desktop/fanless | 1xRU | 1xRU | 1xRU | | 10/100/1000BASE-T | 4 | 8 | 16 | 24 | 8 (combo) | | 1000BASE-X | - | - | 2xSFP | - | 8 (combo) | | 10G Ports (10G or 1G supported) | - | - | - | 2xSFP+ | | | USB 2.0 | 1 | 2 | 2 | 1 | 1 | | Management/status LEDs | Yes | Yes | Yes | Yes | Yes | | LINK/ACT and status LEDs | Yes | Yes | Yes | Yes | Yes | | LCD panel and navigation buttons | No | No | Yes | Yes | Yes | | Console port | mini USB,
RJ-45 | RJ-45 | mini USB,
RJ-45 | micro USB,
RJ-45 | mini USB,
RJ-45 | | Out-of-band management port | No | No | Yes | Yes | No |
|
| POWER OVER ETHERNET (PoE) SUPPORT |
|---|
| FEATURES | 7005 | 7008 | 7010 | 7024 | 7030 |
|---|
| PoE1 Role/Mode | Powered Device (PD) | Power Source Equipment (PSE) | PSE | PSE | - | | PoE In or Out | In – Port 0 | Out | Out | Out | - | | Max concurrent of PoE Ports | - | 8 | 12 | 24 | - | | Max2 concurrent PoE+ Ports | - | 8 | 12 | 24 | - | | PoE Power Budget | - | 100W | 150W | 400W | - |
|
1 PoE: 802.3af, up to 15.4W from the PSE and up to 12.95W at the PD, not to exceed the total PoE Power Budget.
2 PoE+: 802.3at, up to 30W per port from the PSE and up to 25.5W at the PD, not to exceed the total PoE Power Budget.
| PHYSICAL |
|---|
| FEATURES | 7005 | 7008 | 7010 | 7024 | 7030 |
|---|
| Dimensions (H x W x D) | 4.1 cm x 20 cm x 20 cm
(1.6" x 7.9" x 7.9") | 4.2 cm x 20.32 cm x 20.32 cm
(1.65" x 8.0" x 8.0") | 4.42 cm x 31.75 cm x 33.7 cm
(1.74" x 12.75" x 13.3") | 4.37 cm x 44.2 cm x 31.3 cm
(1.72" x 17.4" x 12.32") | 4.4 cm x 30.5 cm x 21.1 cm
(1.7" x 12" x 8.3") | | Weight | 0.92 kg (2.03 lbs) | 1.0 kg (2.2 lbs) | 3.4 kg (7.5 lbs) | 5.127 kg (11.3 lbs) | 2.06 kg (4.54 lbs) | | MTBF (hours, @ 40C) | 323,896 | 300,000 | 232,843 | 311,901 | 390,679 |
|
| ENVIRONMENTAL RANGE |
|---|
| FEATURES | 7005 | 7008 | 7010 | 7024 | 7030 |
|---|
| Operating temperature | 0° C to 40° C | 0° C to 40° C | 0° C to 40° C | 0° C to 40° C | 0° C to 40° C | | Storage temperature | -40° C to 70° C | -40° C to 70° C | -40° C to 70° C | -40° C to 70° C | -40° C to 70° C | | Humidity/Storage humidity | 5% to 95%, NC | 5% to 95%, NC | 5% to 95%, NC | 10% to 95%, NC | 5% to 95%, NC | | Operating altitude | 10,000 feet | 10,000 feet | 10,000 feet | 10,000 feet | 10,000 feet | | Acoustic noise3 | 0 dBA (fanless) | 0 dBA (fanless) | 39.8 – 58.6 dBA | 34.3 – 71.2 dBA | 29.1 – 57.4 dBA | | Maximum heat dissipation (BTU/hour) | 51.18 | 430 | 300 | 1,842 | 168 | | Maximum power consumption | 16.6W (with USB) | 126W (with PoE) | 190W (with PoE) | 450W (with PoE) | 55W | | Power Source | PoE or 12v - 30W | 150-watt power supply | internal power supply | internal power supply | internal power supply |
|
3 Sound power per ETSI 300 753 in accordance with ISO 7779
| POWER ADAPTER AND SUPPLY SPECIFICATIONS |
|---|
| FEATURES | 12V - 30W | 150-WATT |
|---|
| Input voltage range | 90 VAC to 264 VAC | 90 VAC to 264 VAC | | Output voltage | +12VDC, 4A | 54VDC, 2.78A | | Input frequency | 47-63 Hz | 47-63 Hz | | AC line input current (steady state) | 1.0A | 2.0A | | Operating Temperature | 0° C to 40° C | 0° C to 40° C | | Cooling | - | - | | Weight | 0.24 kg (0.53 lbs) | 0.72 kg (1.58 lbs) |
|
