ASA 5506-X with FirePOWER services, 8GE, AC, 3DES/AES
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

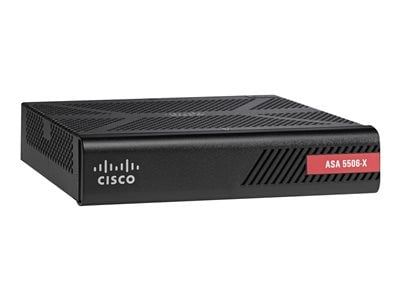

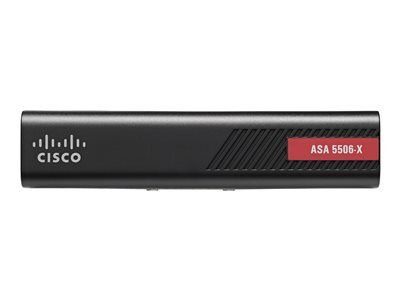

Cisco ASA5506-K9, designed for small or mid-size enterprise or branch offices, is one of the Cisco ASA 5500-X Next-generation series firewalls with Firepower services.
Quick Specs
Product Code | ASA5506-K9 |
Interfaces | 8 x 1 Gigabit Ethernet interface,1 management port |
Stateful inspection throughput (multiprotocol) | 300 Mbps |
Maximum 3DES/AES VPN throughput | 100 Mbps |
IPsec site-to-site VPN peers | 10; 50 with Security Plus license |
Virtual interfaces (VLANs) | 5; 30 with Security Plus license |
Memory | 4GB |
Flash | 8GB |
Power (AC or DC) | AC only |
Height (rack units) | Desk Top |
Dimensions (D x H x W) | 9.23 in x 1.72 in x 7.871 in |
Package Weight | 3.78 Kg |
ASA5506-K9 Specification
ASA5506-K9 Specifications | |
Type | Cisco ASA 5506-X w/ FirePOWER Services |
Throughput: Application Control (AVC) | 250 Mbps |
Throughput: Application Control (AVC) and IPS | 125 Mbps |
Maximum concurrent sessions | 20,000; 50000 |
Maximum New Connections per second | 5,000 |
Supported applications | More than 3,000 |
URL categories | 80+ |
Number of URLs categorized | More than 280 million |
Centralized configuration, logging, monitoring, and reporting | Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center |
On-Device Management | ASDM (version 7.3 or higher required) |
Feature | Cisco ASA 5506-X w/ FirePOWER Services |
Stateful inspection throughput (maximum1) | 750 Mbps |
Stateful inspection throughput (multiprotocol2) | 300 Mbps |
Triple Data Encryption Standard/ | 100 Mbps |
Users/nodes | Unlimited |
IPsec site-to-site VPN peers | 10; 50 |
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5 | 50 |
Virtual interfaces (VLANs) | 5; 30 |
Security contexts5(included; maximum) | N/A |
High availability | Requires Security Plus License; Active/ |
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) | N/A |
Expansion slot | N/A |
User-accessible Flash slot | No |
USB 2.0 ports | USB port type ‘A’, High Speed 2.0 |

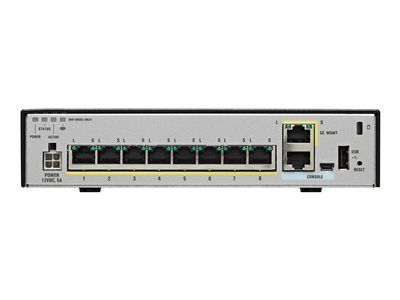

Integrated I/O | 8 x 1 Gigabit Ethernet (GE) |
Expansion I/O | N/A |
Dedicated management port | Yes (To be shared with FirePOWER Services), 10/100/1000 |
Serial ports | 1 RJ-45 and Mini USB console |
Solid-state drive | 50 GB mSata |
Memory | 4 GB |
System flash | 8 GB |
System bus | Multibus architecture |
Temperature | 32 to 104°F (0 to 40 °C) |
Relative humidity | 90 percent noncondensing |
Altitude | Designed and tested for 0 to 10,000 ft (3048 m) |
Acoustic | Fanless |
Temperature | -13 to 158ºF (-25 to 70ºC) |
Relative humidity | 10 to 90 percent noncondensing |
Altitude | Designed and tested for 0 to 15,000 ft (4572 m) |
AC range line voltage | External, 90 to 240 volts alternating current (VAC) |
AC normal line voltage | 90 to 240 VAC |
AC current | N/A |
AC frequency | 50/60 Hz |
Dual-power supplies | None |
DC domestic line voltage | N/A |
DC international line voltage | N/A |
DC current | N/A |
Steady state | 12V @2.5A |
Maximum | 12V @ 5A |
Maximum | 103 British thermal units (Btu)/hr |
Form factor | Desktop, rack mountable |
Dimensions (H x W x D) | 1.72 x 7.871 x 9.23 in. |
(4.369 x 19.992 x 23.444 cm) | |
Weight (with AC power supply) | 4 lb (1.82 kg) |
