Bluetooth Beacon Gateway Bluetooth 5.0

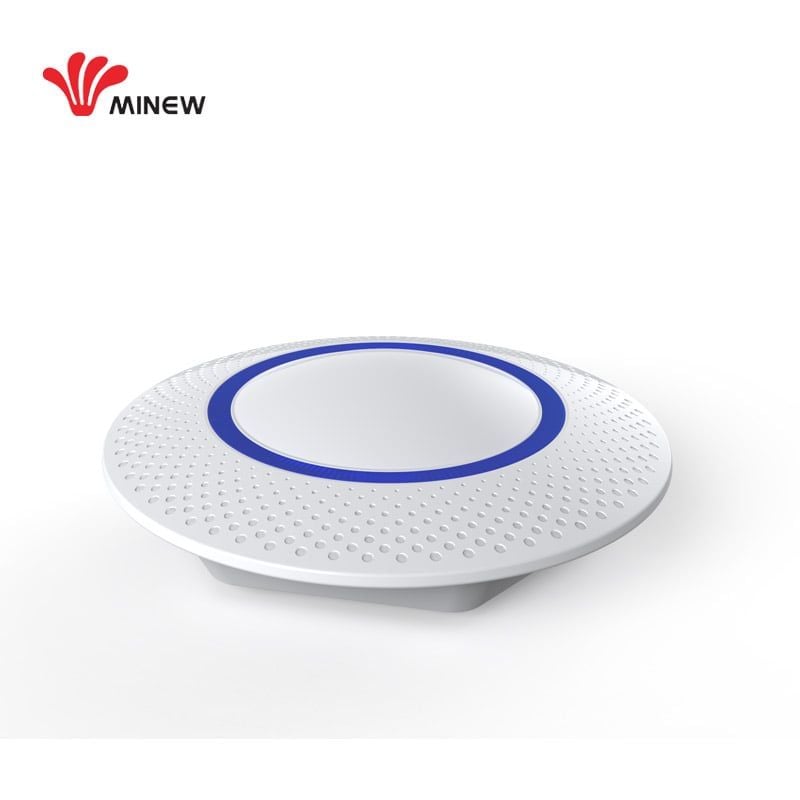

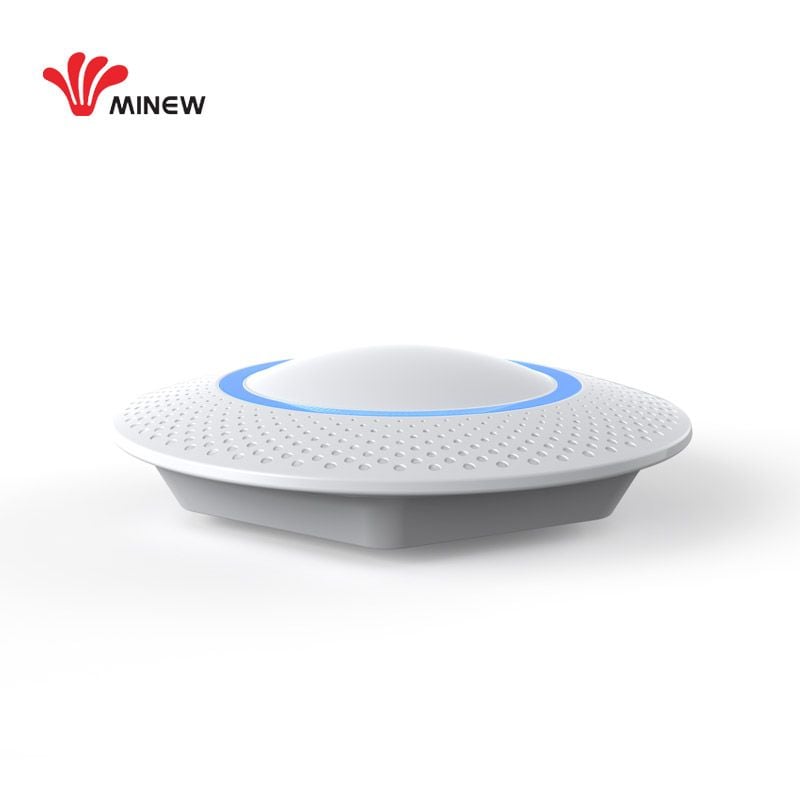

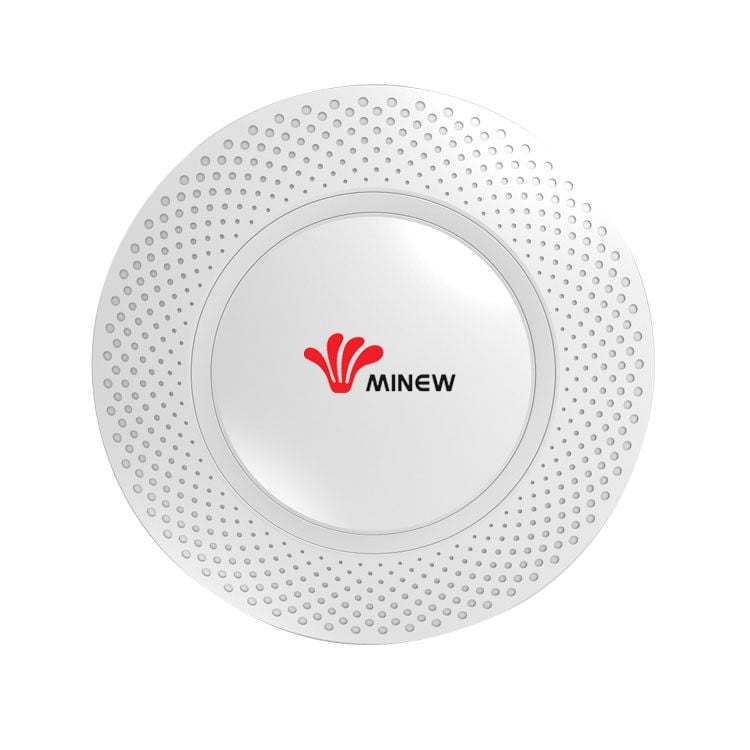

G1 Bluetooth to Wifi Gateway

G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps.

The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices,and then sends to the local server or remote cloud server by HTTP / MQTT protocol over Wi-Fi / Ethernet.

The user is easy to configure the G1 gateway via a very simple web UI.

General specification

Input: DC 5.0V, 1A, micro-USB
Supports 802.3af PoE standard
Supports firmware upgrade Over-the-Air,USB
Operating temperature: -25℃ to 65℃
Reads multiple BLE devices in the same time
Supports MQTT/MQTT over SSL/TLS&HTTP/HTTPS
RGB LED string as the status indicator

Wi-Fi specification
Up to 300 Mbps PHY data rate
With 3dBi flexible FPC antenna
100 meters range in open space
2T2R 2.4GHz frequency band
IEEE 802.11b/g/n
Web based UI for configuration
Connects to the local server or remote cloud

BLE Specification

Bluetooth 5.0 hardware nRF52832
With a power amplifier
With 3dBi flexible FPC antenna
300 meters range in open space
Rx sensitivity -108dBm
Bi-directional (reads data / sends command)

How it works

Capature

Detect and collect the data of bluetooth device in ranges,Including all popuar protocols : iBeacon, Eddystone as well as custom sensor format.

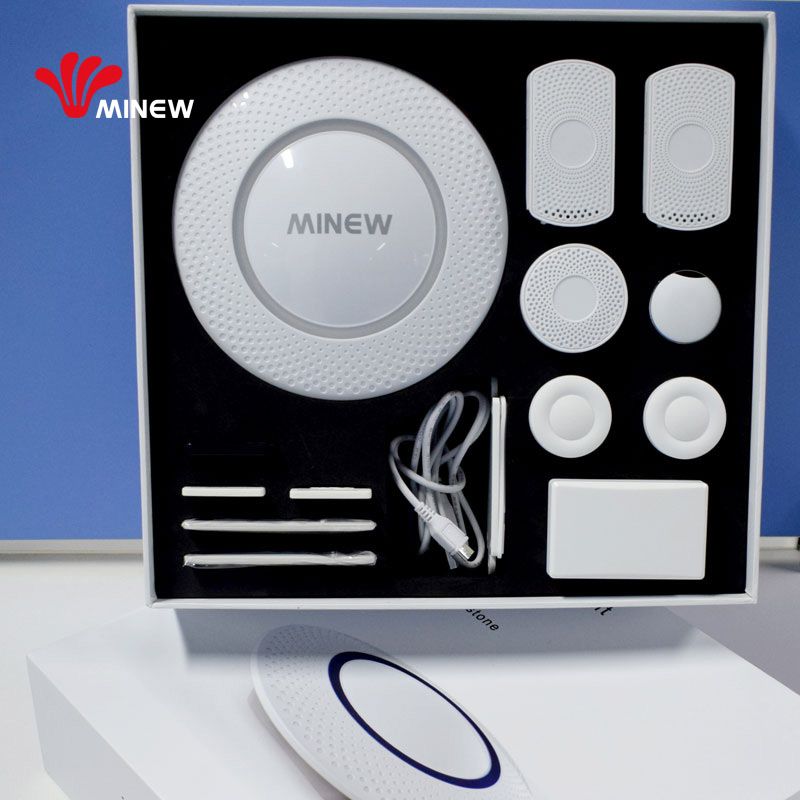

G1 bluetooth&wifi gateway can work perfectly with our Minew beacon device.

Communicate
Send all the data to the local server or remote cloud server by MQTT/MQTT over SSL/TLS&HTTP/HTTPS protocol.
