GC110

Thương hiệu: NetGear
Loại: Smart Switch
Giá: (chưa bao gồm VAT)

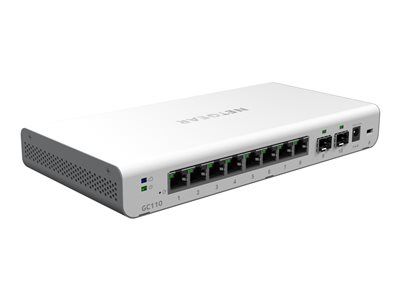

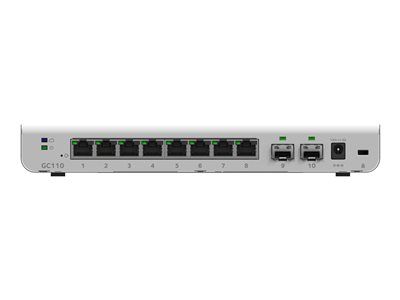

GC110: 8-Port Gigabit Ethernet App Managed Smart Cloud Switch w/2 SFP Fiber Ports

GC110
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

8-Port Gigabit Ethernet App Managed Smart Cloud Switch w/2 SFP Fiber Ports:
. CPU/RAM/Flash: 400 MHz Cortex-A9 Single Core/256MB RAM/8MB SP+256 NAND FLASH
. 8 port 100/1000 RJ-45 + 2 1G SFP (dedicated)
. Bandwidth: 20 Gbps
. MAC/VLAN/Buffer/Jumbo: 16K/256/1,5MB/Up to 9,216 packet size
. Feature Set: L2+
. Static Routes: IPv4: 32 / IPv6: 31
. PSU: External Adaptor Input: 12V/1.5A
. Form Factor: Desktop, Wallmount

Specifications

General
Device TypeSwitch - 10 ports - L2+ - smart
Enclosure TypeDesktop, wall-mountable
SubtypeGigabit Ethernet
Ports8 x 10/100/1000 (PoE) + 2 x SFP
PerformanceFabric throughput: 20 Gbps ¦ 1 Gbps copper latency (64-byte packets): 3000 µs ¦ 1 Gbps fiber latency (64-byte packets): 2400 µs ¦ Packet forwarding rate: 14.9 Mfps ¦ 1 Gbps fiber latency (1518-byte packets): 2140 µs
CapacityACL: 100 ¦ VLANs supported: 256 ¦ Priority queues: 8 ¦ IGMP multicast groups: 512
MAC Address Table Size16K entries
Jumbo Frame Support9KB
Remote Management ProtocolHTTPS, TFTP
Encryption AlgorithmMD5, SSL, TLS, PEAP
Authentication MethodRADIUS, TACACS+, Extensible Authentication Protocol (EAP)
FeaturesIGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, fanless, LACP support, DHCP relay, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP), dual firmware images, loop prevention, Strict Priority (SP), security lock slot (cable lock sold separately), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, Protocol-based VLANs support, cable test, DNS client, Voice VLAN, LLDP-MED, Private VLAN, Guest VLAN, ingress rate limiting, protected ports, Zero-touch provisioning (ZTP), BPDU Filter, MAC based VLAN, Auto VoIP, MAC lockdown
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, UPnP
Processor1 Cortex-A9: 400 MHz
RAM256 MB
Flash Memory264 MB
Status IndicatorsPower, link/activity/speed
Expansion / Connectivity
Interfaces8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Power
Power DeviceExternal power adapter
Power Consumption Operational10.1 Watt
Miscellaneous
MTBF4,013,311 hours
Compliant StandardsBSMI CNS 13438 Class A, UL 60950-1 Second Edition, KCC, GB 9254-2008, K60950-1, GB4943.1-2011, RCM, BSMI CNS 14336-1, IEC 60950-1:2005 Second Edition, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, EN 55024:2010+A1:2015, KN32, KN35, EN 55032:2012+AC:2013 Class A, AS/NZS 60950-1:2015, CISPR 32:2015 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, ICES-003:2016, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
LocalizationLatin America, North America
Dimensions & Weight
Width9.6 in
Depth4.8 in
Height1.3 in
Weight26.1 oz
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 5 years - response time: next business day ¦ Limited warranty - power supply - 2 years ¦ Technical support - 90 days
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature113 °F
Humidity Range Operating0 - 90% (non-condensing)
Min Storage Temperature-4 °F
Max Storage Temperature158 °F
Humidity Range Storage0 - 95% (non-condensing)
