GS324T

Thương hiệu: NetGear
Loại: Smart Switch
Giá: (chưa bao gồm VAT)

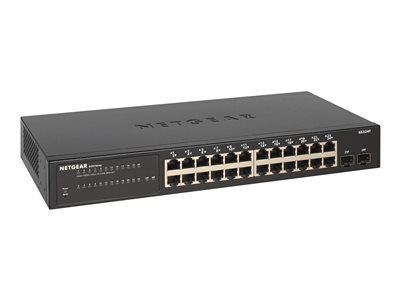

S350 Series 24-Port Gigabit Ethernet Smart Managed Pro Switch with 2 SFP Ports

Tạo tùy chọn mới
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

S350 Series 24-Port Gigabit Ethernet Smart Managed Pro Switch with 2 SFP Ports:
. 10/100/1000 RJ45: 24
. 1G SFP: 2 x Dedicated
. Bandwidth: 52 Gbps
. CPU/RAM/Flash: 800MHz single core/512MB DDR RAM/2MB SPI NOR 128MB FLASH
. Buffer Memory/ACLs/MAC/VLANs: 512KB/100 shared/16K MAC/64 VLANs
. Jumbo Frame support: Up to 9216 packet size
. Feature Set: L2.
. PSU: Internal
. Form Factor: Rack 1U

Specifications

General
Device TypeSwitch - 24 ports - smart
Enclosure TypeDesktop, rack-mountable
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 + 2 x SFP
PerformanceSwitch fabric speed: 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.6 Mpps
CapacityACL: 100 ¦ IGMP multicast groups: 512 ¦ Priority queues: 4 ¦ DHCP snooping entries: 8000
MAC Address Table Size16K entries
Jumbo Frame Support9216 bytes
Routing ProtocolIGMPv2, IGMP, IGMPv3
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Encryption AlgorithmTLS
Authentication MethodRADIUS, TACACS+
FeaturesVLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), fanless, LACP support, DHCP client, 512KB packet buffer, dual firmware images, Strict Priority Queuing (SPQ), Class of Service (CoS), Strict Priority (SP), Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, rate limit, IGMP querier, Voice VLAN, VLAN management, Guest VLAN, Weighted Round Robin (WRR), MAC based VLAN, Auto VoIP, MAC lockdown, SNTP client
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor: 800 MHz
RAM512 MB
Flash Memory128 MB
Status IndicatorsPower, link/activity, speed
Expansion / Connectivity
Interfaces24 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Power
Power DeviceInternal power supply
Installed Qty1
Power Consumption Operational13.5 Watt
Miscellaneous
Included AccessoriesRubber feet
Rack Mounting KitIncluded
MTBF1,999,947 hours
Compliant StandardsBSMI CNS 13438 Class A, EN 60950, UL 1950, SCC, GB4943.1-2011, CNS 14336, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, FCC CFR47 Part 15 A, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
LocalizationLatin America, North America
Dimensions & Weight
Width12.9 in
Depth6.7 in
Height1.7 in
Weight3.57 lbs
Manufacturer Warranty
Service & SupportLimited warranty - 5 years ¦ Limited warranty - replacement - 5 years - response time: next business day ¦ Technical support - phone consulting - 90 days
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature113 °F
Humidity Range Operating95% (non-condensing)
