GS724TP

Thương hiệu: NetGear
Loại: Smart Switch
Giá: (chưa bao gồm VAT)

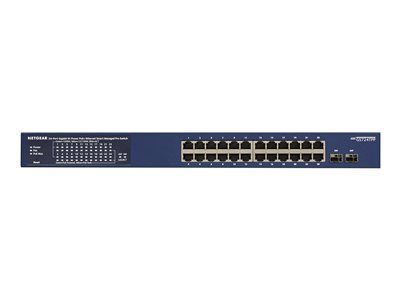

GS724TP: 24-Port Gigabit Ethernet PoE+ Smart Managed Pro Switch with 2 SFP Ports and Cloud Management

GS724TP
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

24-Port Gigabit Ethernet PoE+ Smart Managed Pro Switch with 2 SFP Ports and Cloud Management:
. CPU/RAM/Flash: 500 Mhz MIPS-4KEc CPU/128MB RAM/32MB SPI FLASH
. 24 x PoE+ 10/100/1000 RJ45 + 2 x SFP Dedicated
. Bandwidth: 52 Gbps
. Buffer Memory/ACLs/MAC/VLANs: 512 KB/100 shared/8K MAC/64 VLANs
. Jumbo frame: Up to 9216 packet size
. Feature Set: L2
. PoE Budget (Watts): 24 PoE+ (190W PoE budget)
. PSU: Internal 100-240VAC 50-60Hz
. Form Factor: Rack 1U

Specifications

General
Device TypeSwitch - 24 ports - L3 - smart
Enclosure TypeRack-mountable
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget380 W
PerformanceBandwidth (full duplex): 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.6 Mpps ¦ 1 Gbps copper latency (64-byte packets): 3.563 ¦ 1 Gbps copper latency (1518-byte packets): 3.717 ¦ 1 Gbps copper latency (9216-byte packets): 3.464
CapacityPriority queues: 8 ¦ Multicast groups: 128 ¦ VLANs supported: 64 ¦ DHCP snooping entries: 256 ¦ ACL: 100 ¦ IGMP multicast groups: 128
MAC Address Table Size8K entries
Jumbo Frame Support9216 bytes
Routing ProtocolIGMP, static IP routing, MLDv2, MLD
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Encryption AlgorithmTLS 1.2
Authentication MethodRADIUS, TACACS+, Extensible Authentication Protocol (EAP)
FeaturesFlow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, MLD snooping, IPv4 support, Link Aggregation Control Protocol (LACP), DHCP client, 512KB packet buffer, Dynamic VLAN Support (GVRP), dual firmware images, loop prevention, static routing, Class of Service (CoS), Strict Priority (SP), cloud managed, DiffServ Code Point (DSCP) support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, Link Aggregation Group (LAG), security slot (Kensington security lock compatible)
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor1: 500 MHz
RAM128 MB
Flash Memory32 MB
Status IndicatorsPort transmission speed, PoE, link/activity
Expansion / Connectivity
Interfaces24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP uplink
Power
Power DeviceInternal power supply
Installed Qty1
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational446.7 Watt
Power Consumption Stand by24.7 Watt
Miscellaneous
Included AccessoriesFoot pad set
Rack Mounting KitIncluded
MTBF634,966 hours
LocalizationLatin America, North America
Dimensions & Weight
Width17.3 in
Depth8 in
Height1.7 in
Weight8.16 lbs
Manufacturer Warranty
Service & SupportLimited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature122 °F
Humidity Range Operating95% (non-condensing)
Min Storage Temperature-4 °F
Max Storage Temperature158 °F
Humidity Range Storage95% (non-condensing)
