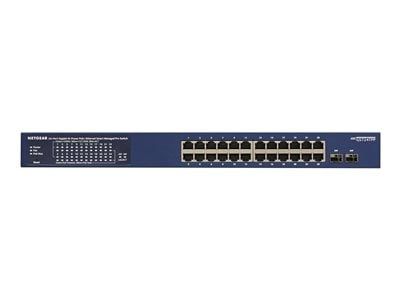

GS724TPP: 24-Port Gigabit PoE+ Smart Managed Switch with 2 SFP Ports and Cloud Management
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ
24-Port Gigabit PoE+ Smart Managed Switch with 2 SFP Ports and Cloud Management:
. 24 x PoE+ 10/100/1000 RJ45
. 2 x SFP Dedicated
. Switching Fabric: 52 Gbps
. CPU 500 Mhz MIPS-4KEc,128MB RAM, 32MB SPI FLASH
. Buffer Memory/ACLs/MAC/VLANs: 512 KB/100 shared/8K MAC/64 VLANs
. Jumbo frame: Up to 9216 packet size
. Feature Set: L2
. PoE Budget (Watts): 380W
. PSU: Internal 100-240VAC 50-60Hz
. Form Factor: Rack 1U
Specifications
General | |
---|---|
Device Type | Switch - 24 ports - L3 - smart |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 380 W |
Performance | Bandwidth (full duplex): 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.6 Mpps ¦ 1 Gbps copper latency (64-byte packets): 3.563 ¦ 1 Gbps copper latency (1518-byte packets): 3.717 ¦ 1 Gbps copper latency (9216-byte packets): 3.464 |
Capacity | Priority queues: 8 ¦ Multicast groups: 128 ¦ VLANs supported: 64 ¦ DHCP snooping entries: 256 ¦ ACL: 100 ¦ IGMP multicast groups: 128 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9216 bytes |
Routing Protocol | IGMP, static IP routing, MLDv2, MLD |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
Encryption Algorithm | TLS 1.2 |
Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
Features | Flow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, MLD snooping, IPv4 support, Link Aggregation Control Protocol (LACP), DHCP client, 512KB packet buffer, Dynamic VLAN Support (GVRP), dual firmware images, loop prevention, static routing, Class of Service (CoS), Strict Priority (SP), cloud managed, DiffServ Code Point (DSCP) support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, Link Aggregation Group (LAG), security slot (Kensington security lock compatible) |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Processor | 1: 500 MHz |
RAM | 128 MB |
Flash Memory | 32 MB |
Status Indicators | Port transmission speed, PoE, link/activity |
Expansion / Connectivity | |
---|---|
Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP uplink |
Power | |
---|---|
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 446.7 Watt |
Power Consumption Stand by | 24.7 Watt |
Miscellaneous | |
---|---|
Included Accessories | Foot pad set |
Rack Mounting Kit | Included |
MTBF | 634,966 hours |
Localization | Latin America, North America |
Dimensions & Weight | |
---|---|
Width | 17.3 in |
Depth | 8 in |
Height | 1.7 in |
Weight | 8.16 lbs |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
Environmental Parameters | |
---|---|
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 95% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 95% (non-condensing) |
