GSM7228S

Thương hiệu: NetGear
Loại: Managed Switches
Giá: (chưa bao gồm VAT)
Giá so sánh: 25,827,000₫

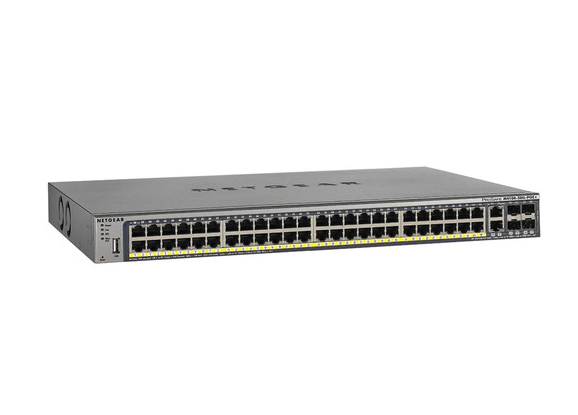

GSM7228S: ProSAFE M5300-28G Gigabit Managed Switch

GSM7228S
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

ProSAFE M5300-28G Gigabit Managed Switch:
. 10/100/1000 RJ45: 24
. 100/1G SFP:  4 x shared
. 1G/10G RJ45/SFP+: 2 x Combo
. Bandwidth/Throughput :144 Gbps/107.1 Mpps
. CPU/RAM/FLASH: 800Mhz/512M RAM/128M Flash
. MAC/ARP Table/Routing Entries/ACL Rules: 32K/6,144/12,256/16,384
. VLAN/Buffer Memory/Jumbo Frames: 4K/16 MB/12K
. Stacking: Up to 8 switches
. Feature Set: L2+, Full L3 (Static Routing & Dynamic Routing) with License
. PSU: Internal, Redundant Power Supply with RPS
. Form Factor: Rack 1U

Specifications

General
Device TypeSwitch - 24 ports - L3 - managed - stackable
Enclosure TypeDesktop 1U
SubtypeGigabit Ethernet
Ports24 x Gigabit RJ45 + 4 x shared 10/100/1000
PerformanceSwitching capacity: 144 Gbps ¦ Throughput: 107.1 Mbps
Capacity224 ¦ IP router interfaces: 128
MAC Address Table Size8K entries
Jumbo Frame Support9000 bytes
Routing ProtocolOSPF, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption AlgorithmTLS 1.0, SSL 3.0
Authentication MethodRADIUS, TACACS+
FeaturesLayer 3 switching, BOOTP support, ARP support, VLAN support, IGMP snooping, traffic shaping, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, MLD snooping, IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
Processor1: 666 MHz
RAM256 MB
Flash Memory32 MB
Status IndicatorsPort transmission speed, power, status, RPS (Redundant Power Supply), link/activity
Expansion / Connectivity
Interfaces4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x management (RS-232) ¦ 24 x SFP (mini-GBIC)
Expansion Slots4 (total) / 4 (free) x expansion slot
Power
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included1 x null modem cable
Rack Mounting KitIncluded
MTBF117,747 hours
Compliant StandardsFCC Class A certified, C-Tick, CISPR 22 Class A, cUL, EN 60950, UL 1950, VCCI Class A ITE, IEC 60950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1
Dimensions & Weight
Width17.3 in
Depth15.4 in
Height1.7 in
Weight13.89 lbs
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature122 °F
Humidity Range Operating0 - 90% (non-condensing)
Min Storage Temperature-4 °F
Max Storage Temperature158 °F
Humidity Range Storage0 - 95% (non-condensing)
Rack 1U - Stackable
