HPE JH328A - Aruba 1420 Switch
HP OfficeConnect 1420 5G PoE+ (32W) Gigabit Unmanaged Switch
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

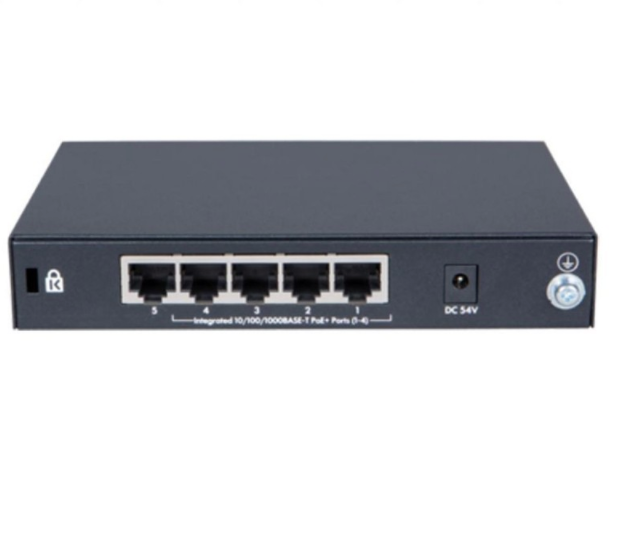

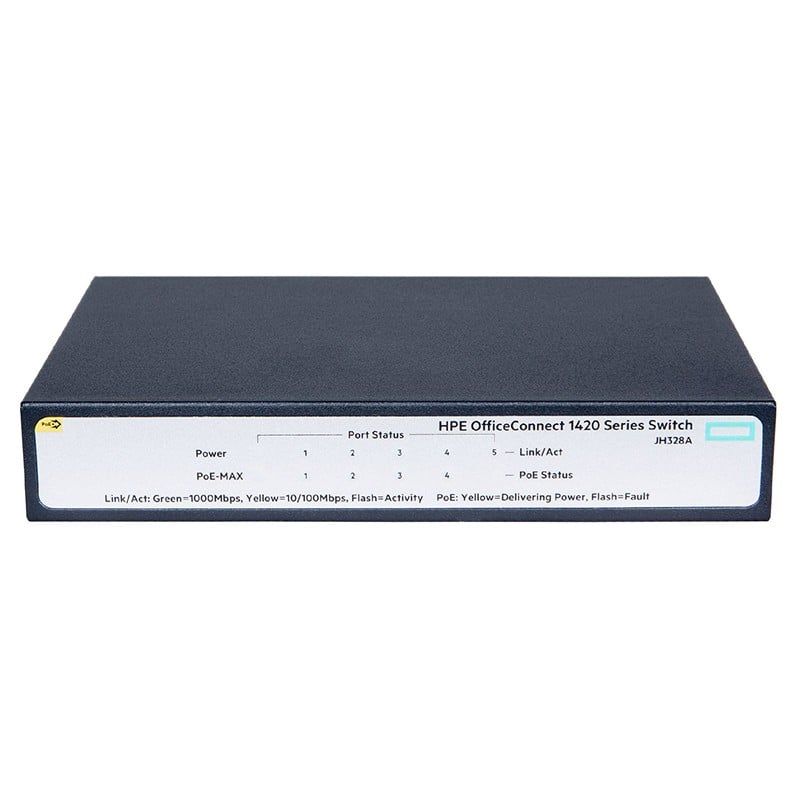

HPE OfficeConnect 1420 Series switches are Gigabit unmanaged Layer 2 switches for plug and play connectivity, in a metal enclosure. This JH328A has 5 x 10/100/1000 rear-facing ports with its LED display on the front. Four of five ports (1 - 4) support PoE+ with a total switch PoE power budget of 32W. It is a desktop configuration with a universal power adapter plus localized core. Part of the OfficeConnect portfolio of small business networking products from Hewlett Packard Enterprise.
Quick Spec
Product Code | JH328A |
Type | HPE Officeconnect 1420 5G POE+ (32W) Switch |
I/O ports and slots | 5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only |
Throughput | up to 7.4 Mp/s |
Switching capacity | 10 Gb/s |
Dimensions | 2.69 x 15.77 x 10.49 cm (1.06 x6.21 x4.13 in) |
Weight | 0.3 kg (0.66 lb) |
JH328A Specification
JH328A Specifications | |
Type | HPE Officeconnect 1420 5G POE+ (32W) Switch |
I/O ports and slots | 5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only |
Memory and processor | Packet buffer size: 1Mb |
Mounting and enclosure | Desktop (rear port) |
100Mb latency | < 3 μs |
1000Mb latency | < 2.6 μs |
10 Gb/s Latency | N/A |
Throughput | up to 7.4 Mp/s |
Switching capacity | 10 Gb/s |
MAC address table size | 2048 entries |
Reliability: MTBF (years) | N/A |
Dimensions | 2.69 x 15.77 x 10.49 cm (1.06 x6.21 x4.13 in) |
Weight | 0.3 kg (0.66 lb) |
Frequency | 50/60 Hz |
Maximum heat dissipation | N/A |
Voltage | 100 - 240 V ac (rated) |
Current | N/A |
Maximum power rating | 3.0 W3 |
PoE power | N/A |
Operating temperature | 0°C to 40°C(32°F to 104°F) |
Operating relative humidity | 5% to 95%, non condensing |
Non operating/Storage temperature | -40°C to 70°C(-40°F to 158°F) |
Non operating/Storage relative humidity | 5% to 95%, non condensing |
Altitude | N/A |
Acoustic | Fanless |
Safety | UL 60950 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1-03 |
Emissions | FCC Rules Part 15, Subpart B Class A |
Generic | EN 55022 CISPR 22 |
EN | EN 55024, CISPR 24 |
ESD | IEC 61000-4-2 |
Radiated | IEC 61000-4-3 |
EFT/Burst | IEC 61000-4-4 |
Surge | IEC 61000-4-5 |
Conducted | IEC 61000-4-6 |
Power frequency magnetic field | IEC 61000-4-8 |
Voltage dips and interruptions | IEC 61000-4-11 |
Harmonics | IEC 61000-3-2 |
Flicker | IEC 61000-3-3 |
