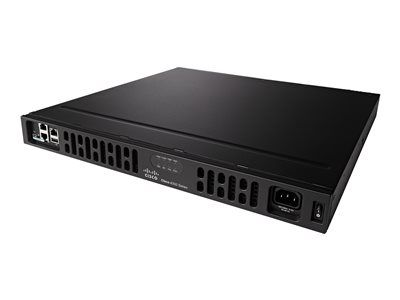

Cisco ISR 4331 (3GE,2NIM,1SM,4G FLASH,4G DRAM,IPB)
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.
Quick Specs
Product Code | Cisco ISR4331/K9 |
Aggregate Throughput | 100 Mbps to 300 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 2 |
SFP-based ports | 2 |
Enhanced service-module (SM-X) slot | 1 |
NIM (Network Interface Modules) slots | 2 |
Onboard ISC slot | 1 |
Memory | 4 GB (default) / 16 GB (maximum) |
Flash Memory | 4 GB (default) / 16 GB (maximum) |
Power-supply options | Internal: AC and PoE |
Rack height | 1 RU |
Dimensions (H x W x D) | 44.45 x 438.15 x 438.15 mm |
Package Weight | 12.96 Kg |
ISR4331/K9 Specification
Cisco ISR4331/K9 Specification | |
Aggregate Throughput | 100 Mbps to 300 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 2 |
SFP-based ports | 2 |
Enhanced service-module slots | 1 |
Doublewide service-module slots | 0 |
NIM slots | 2 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 16 GB |
External USB 2.0 slots (type A) | 1 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 3 to 1.3A |
AC input surge current | 60 A peak and less than 5 Arms per half cycle |
Typical power (no modules) (watts) | 42 |
Maximum power with AC power supply (watts) | 250 |
Maximum power with PoE power supply (platform only) (watts) | 530 |
Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
