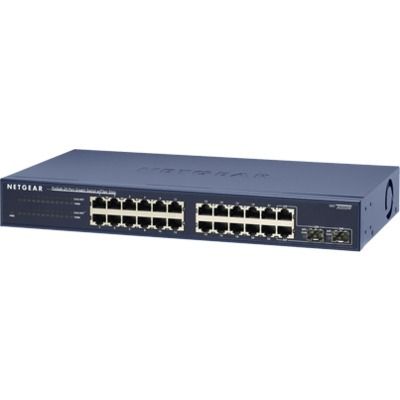

JGS524 - 24 Port Gigabit Ethernet Unmanaged Switch
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
NETGEAR's JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. These switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10-, 100-, and 1000-Mbps devices, these unmanaged, rack-mountable switches feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of their ability to deliver large amounts of multimedia, image, and video information in no time at all. They are ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.
Specification
| NETGEAR JGS524v2 - switch - 24 ports - unmanaged - rack-mountable | |
|---|---|
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching capacity: 48 Gbps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Energy Efficient Ethernet, Type of Service (ToS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Power | AC 100/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 32.8 cm x 16.9 cm x 4.3 cm |
| Weight | 1.65 kg |
| Localisation | Europe |
| Manufacturer Warranty | NETGEAR lifetime warranty |
Extended Specification
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Device Type | Switch - 24 ports - unmanaged |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Energy Efficient Ethernet, Type of Service (ToS) |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Switching capacity: 48 Gbps |
| Ports | 24 x 10/100/1000 |
| Status Indicators | Port transmission speed, power, link/activity |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 16.9 cm |
| Height | 4.3 cm |
| Weight | 1.65 kg |
| Width | 32.8 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 10 - 95% |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 1000Base-T RJ-45 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | NETGEAR lifetime warranty |
| Miscellaneous | |
|---|---|
| Compliant Standards | Plug and Play, cUL, EN55022, EN55024, CISPR 22, CB, CCC, UL 60950-1, EN 60950-1, KCC, FCC Part 15 A, C-Tick Class A, LVD, VCCI Class A, EAC |
| Localisation | Europe |
| MTBF | 238,872 hours |
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Power Consumption Operational | 17.9 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100/230 V (50 - 60 Hz) |
