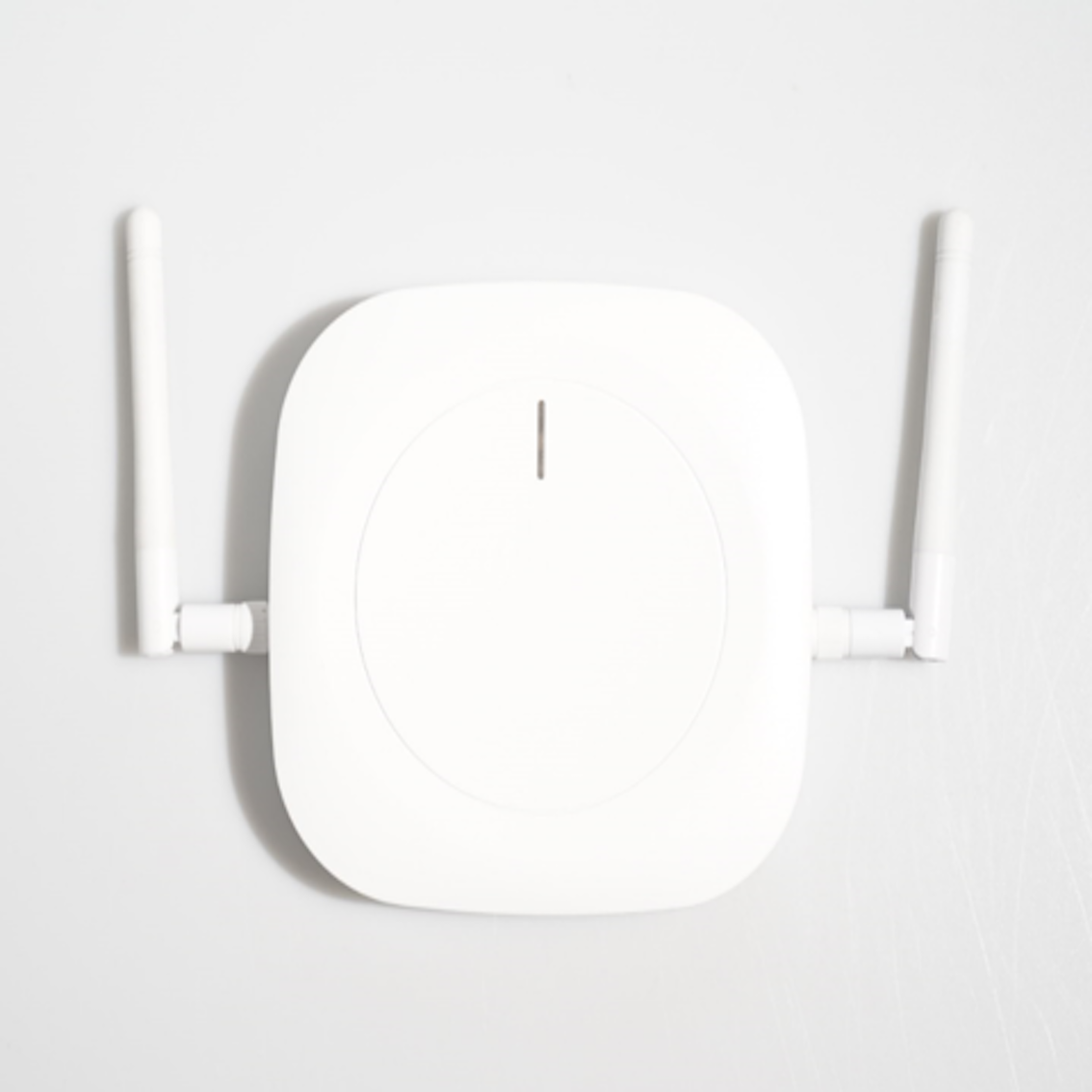

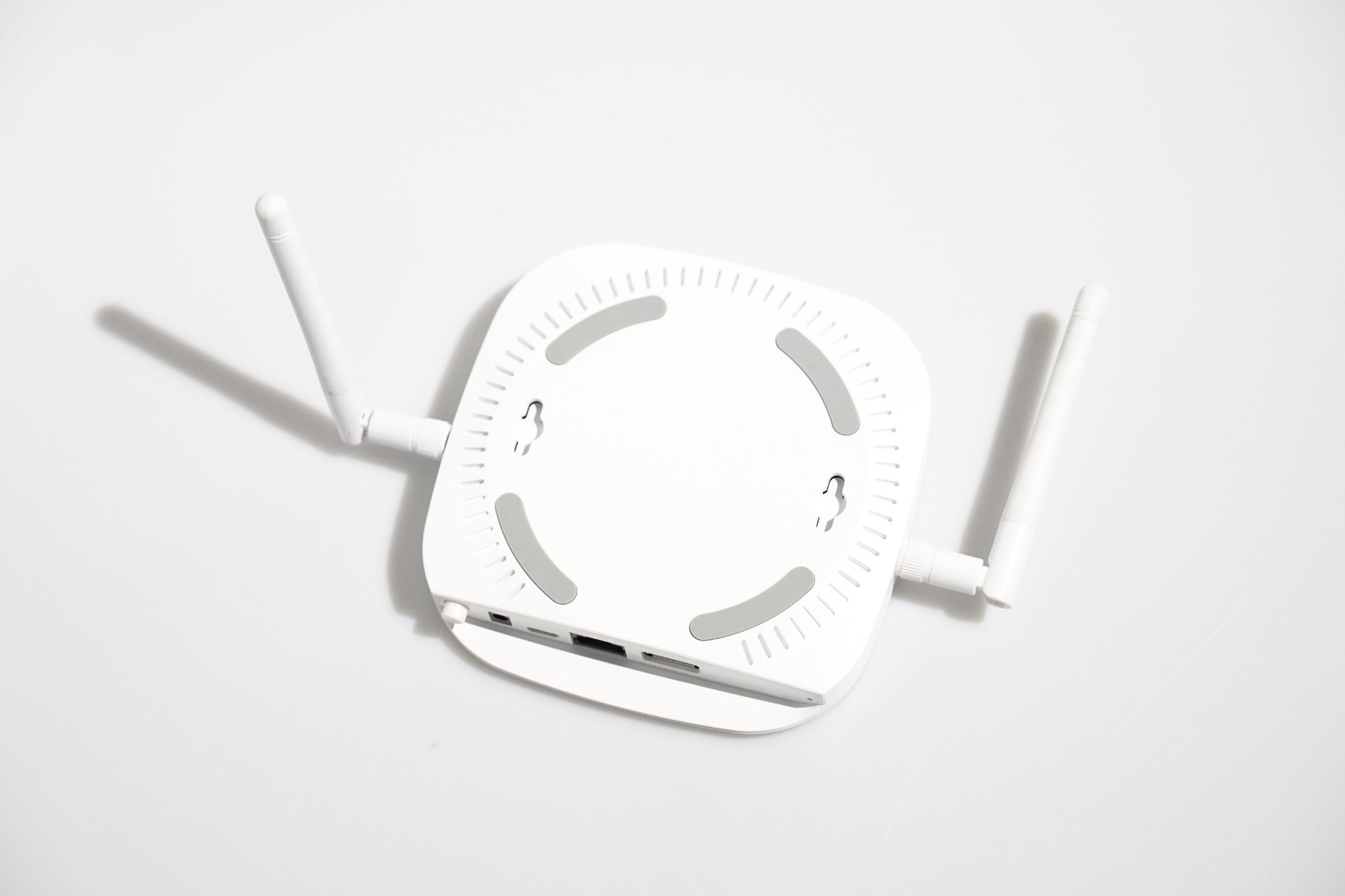

Thiết bị LoRaWan IoT gateway -MKGW2-LW

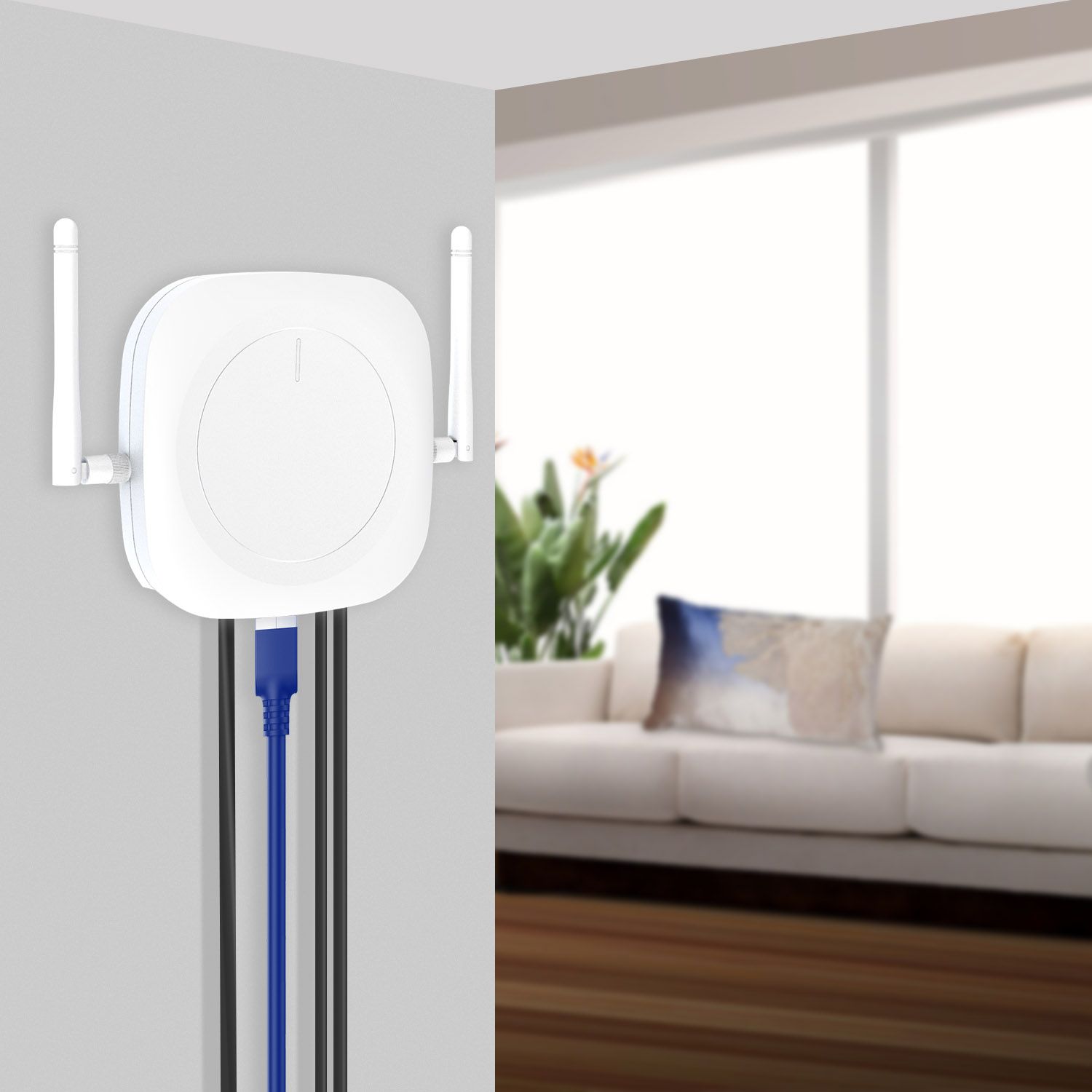

MOKO 8 channels gateway MKGW2 is based on LoRaWAN protocol, which is embedded with Semtech’s high performance multi-channel transceiver SX1301/SX1257 and MTK platform. It is for indoor use and easy for installation. MKGW2-LW includes 2 modes: AP and STA as router, offers 2.4Ghz Wi-Fi and wired Ethernet for connecting internet. The gateway built-in OpenWRT operating system, users can flexibly configure network parameters and LoRaWAN protocol parameters through the Web management platform. The MKGW2-LW Gateway can be connected to LoRaWAN terminals in various application nodes, collects useful information and sends the data to cloud server. And it supports POE, DC, Micro USB to provide power supply。

Product Application

Prefect for professional asset management tracking and location

Smart animal farming

Logistica and supply chain management

Smart cities Safety of people and objects

Smart factory

Smart Building

Smart Meter.

CPU: TR7688AB
Memory 128M DDR/ 32M flash
LoRa Chipset 1x SX1301/2x SX1257
LoRa Standard LoRaWAN V1.0.2 for Class A and Class C
LoRa frequency EU868/US915/AU915/AS923/IN865
LoRa Transimit Power Max 23dBm
LoRa Sensitivity -140dBm@SF12,BW=125kHz
LoRa Communication Distance Max 3Km in urban
WiFi standard IEEE 802.11b/g/n
WiFi Data Rate Max 150Mbps
WiFi Transimit Power 18 dBm
WiFi Communication distance Max 300m
Power Supply DC: 12V/1A
POE: 48V/1A USB: 5V/2A
WiFi antenna: 5dBi
LoRa antenna: 5dBi

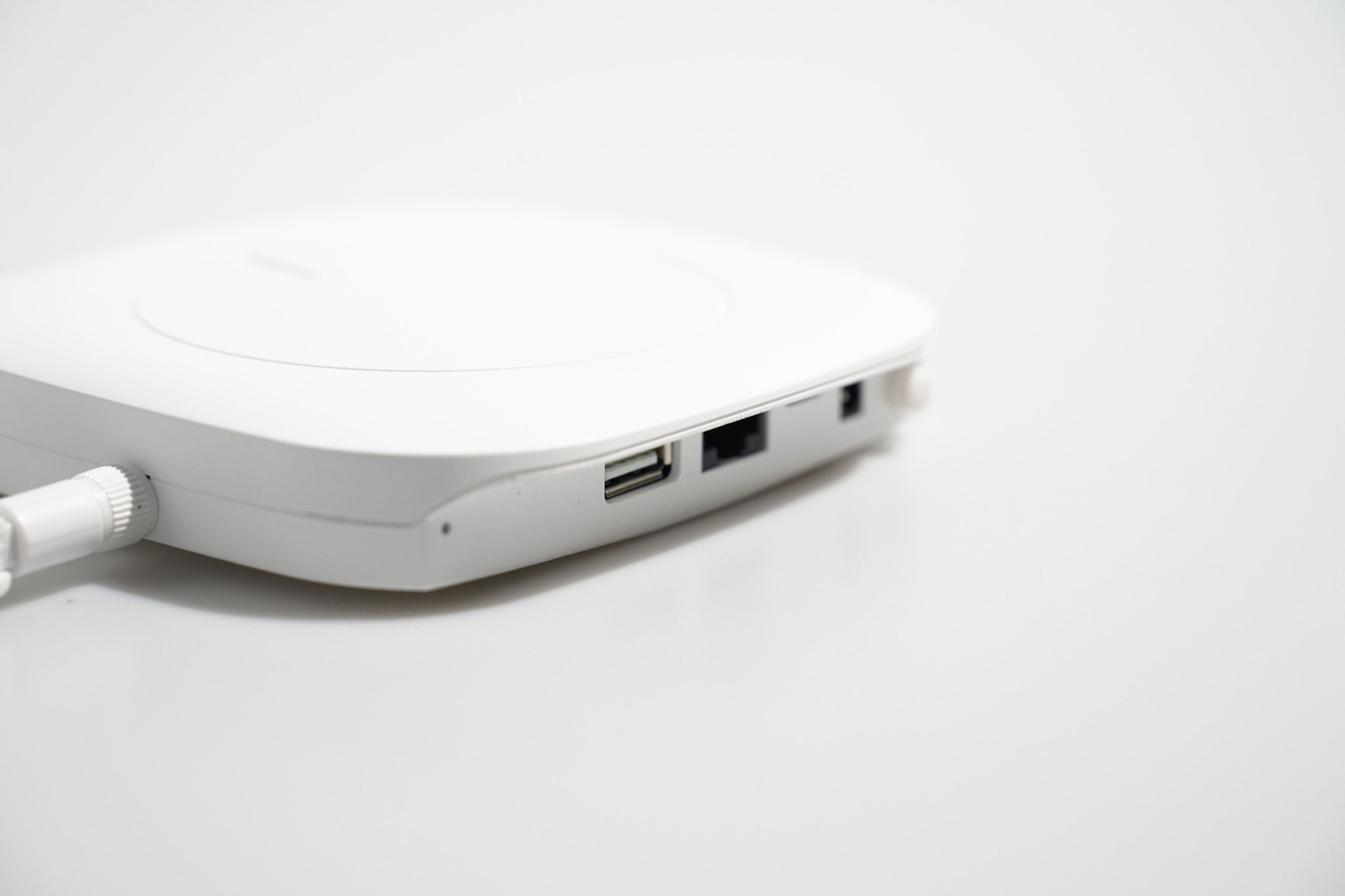

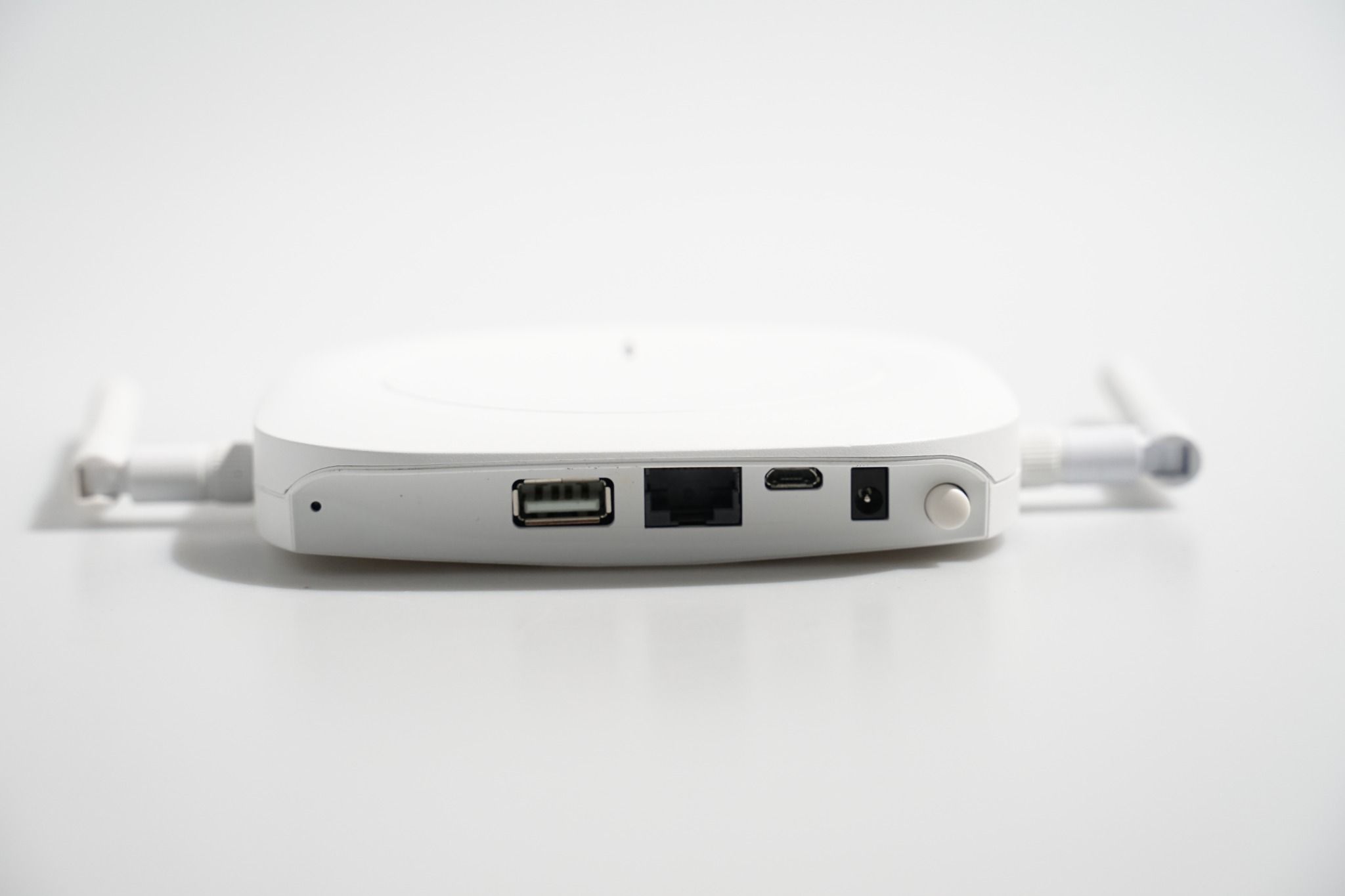

Interface Reset button PoE Port/DC Power Port/Micro USB Port/RJ45 Network Port/USB Upgrade Port/3xLED/2x Antenna
Dimension 120mm x 120mm x 22.5mm (without antenna)
Operationg Temperature 0~55°C
Storage Temperature -20~65°C
