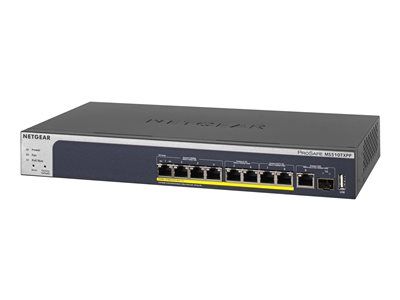

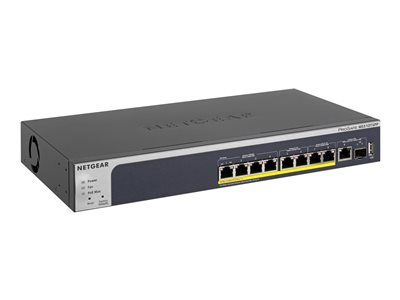

MS510TXPP

Thương hiệu: NetGear

Loại: Smart Switch

Giá: (chưa bao gồm VAT)

Giá so sánh: 12,798,000₫

MS510TXPP: Multi-Gigabit Ethernet Smart Managed Pro Switches with PoE+

4 x 10/100/1000 (PoE+)

2 x 100/1000/2.5G/5G (PoE+) + 2 x 100/1000/2.5G (PoE+)

PoE

180W

Smart Switch

3 Years Warranty

Số lượng

Văn Phòng Công Ty

HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM

0907771575

(Xem bản đồ)

HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM

0987229729

(Xem bản đồ)

VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

0987229729

(Xem bản đồ)

MIỄN PHÍ VẬN CHUYỂN

THANH TOÁN ĐẢM BẢO

HỖ TRỢ 24/7

HOÀN TRẢ MIỄN PHÍ

Multi-Gigabit Ethernet Smart Managed Pro Switches with PoE+:
. 10M/100M/1G Copper Ports PoE+: 4
. 100M/1G/2.5G Copper Ports PoE+: 2
. 100M/1G/2.5G/5G Copper Ports PoE+: 2
. 100M/1G/2.5G/5G/10G Copper Ports: 1
. 1G/10G SFP+ Fiber Ports: 1
. PoE Budget: 180 watt
. Bandwidth: 160 Gbps
. CPU: 800MHz Dual-Core, 512MB RAM,256MB NAND Flash
. MAC/VLAN/Buffer/Jumbo: 16K/256/1.5MB/10K
. Feature Set: L2, Web Managed (Plus)
. PSU: Fixed internal PSU
. Form Factor: Rack 1U

Specifications

General
Device Type	Switch - 8 ports - L3 Lite - smart
Enclosure Type	Desktop, rack-mountable
Subtype	10 Gigabit Ethernet
Ports	4 x 10/100/1000 (PoE+) + 2 x 100/1000/2.5G/5G (PoE+) + 2 x 100/1000/2.5G (PoE+)
Power Over Ethernet (PoE)	PoE+
PoE Budget	180 W
Performance	Bandwidth: 78 Gbps ¦ Latency (10 Gbps): <2.36µs ¦ Latency (SFP+): <2.6µs ¦ Packet forwarding rate: 58 Mpps
Capacity	LAG groups: 8 ¦ MAC addresses: 16000 ¦ ACL entries (ingress): 164 ¦ Virtual interfaces (VLANs): 256 ¦ RP/NDP table: 512 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ IGMP multicast groups: 512 ¦ ARP entries: 512 ¦ VLAN routing interfaces: 32 ¦ Jumbo frame size: 10000 ¦ DHCP snooping entries: 1000 ¦ Multicast groups: 512 ¦ Priority queues: 8
MAC Address Table Size	16K entries
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, RMON, SNMP 3, SNMP 2c, HTTP
Encryption Algorithm	SSL
Authentication Method	RADIUS
Features	IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), LACP support, LLDP support, Energy Efficient Ethernet, Class of Service (CoS), Denial of Service (DoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, MAC and IP-based ACLs support, 1 fan, Voice VLAN, VLAN management, Guest VLAN, Weighted Round Robin (WRR), Auto VoIP, MAC lockdown, IPv6 management
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, ITU-T H.323, IEEE 802.3bz
Processor	: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Power, PoE, fan, link/activity/speed

Expansion / Connectivity
Interfaces	4 x 1000Base-T RJ-45 PoE+ ¦ 2 x 100/1000/2.5G/5G RJ-45 PoE+ ¦ 2 x 100/1000/2.5G RJ-45 PoE+ ¦ 1 x 100/1000/2.5G/5G/10GBase-T SFP+ dedicated ¦ 1 x 10GBase-X SFP+ dedicated ¦ USB

Power
Power Device	Internal power supply

Miscellaneous
Rack Mounting Kit	Included
MTBF	376,434 hours
Compliant Standards	EN 60950, UL 1950, ANSI C63.4, EN 60950-1:2006, GB4943.1-2011, IEC 60950-1:2005, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012, CNS 14336-1, IEC 950, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A
Localization	Latin America, North America

Dimensions & Weight
Width	12.9 in
Depth	6.7 in
Height	1.7 in
Weight	4.19 lbs

Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - phone consulting - 90 days

Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-4 °F
Max Storage Temperature	158 °F
