SF550X-48P-K9-EU

Thương hiệu: Cisco Small Business
Giá: (chưa bao gồm VAT)
Giá so sánh: 34,200,000₫

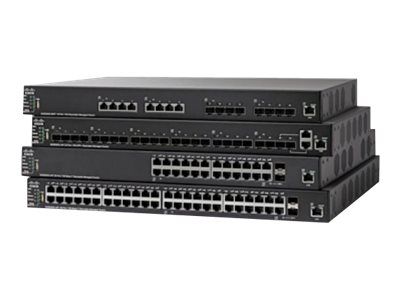

Cisco SF550X-48P 48-port 10/100 PoE Stackable Switch

Cisco 550 Series
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

ETHERNET PORT CONFIGURATION

48-port 10/100, 4 x 10G uplinks (SFP+)

POWER OVER ETHERNET

48 PoE ports with 382W total power budget, PoE, PoE+, 60W PoE

CONFIGURATION & CONTROL

Stackable (8 units), easy-to-use web GUI interface, CLI, SNMP, Cisco FindIT Network Manager, PnP, Auto Smartports

L2+/L3 FEATURES

Dynamic routing, RIP, VRRP, Policy-based Routing, IGMP querier, Time-based Access Control Lists, 802.1x, Web-based Authentication, IPv6 First Hop Security, Dynamic ARP Inspection

PEACE OF MIND

Limited-lifetime warranty, next-business-day replacement, one-year technical support, and free software fixes for the term of the warranty

Product Specifications

General
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeRack-mountable
SubtypeFast Ethernet
Ports48 x 10/100 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x combo 10GBase-T (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget382 W
PerformanceForwarding performance (64-byte packet size): 66.66 Mpps | Switching capacity: 89.6 Gbps
CapacityVLANs supported: 4094 | QoS hardware queues: 8 | IPv4 routes (static): 7000 | IPv6 routes (static): 7000 | ACL rules: 3000 | IP router interfaces: 256 | QoS hardware queues: 8
MAC Address Table Size16K entries
Jumbo Frame Support9000 bytes
Max Units In A Stack8
Routing ProtocolRIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), VRRPv2, VRRPv3, CIDR
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Encryption AlgorithmMD5, SSL
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
FeaturesDHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), IP-MAC binding, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 3MB packet buffer, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard, User Datagram Protocol (UDP)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
ProcessorX ARM: 800 MHz
RAM512 MB
Flash Memory256 MB
Status IndicatorsPort transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Expansion / Connectivity
Interfaces48 x 100Base-TX RJ-45 PoE+ | 4 x 10GBase-X SFP+ uplink | 2 x 10GBase-T RJ-45 uplink | 1 x console RJ-45 | 1 x USB Type A
Power
Power DeviceInternal power supply
Power RedundancyYes
Power Redundancy Scheme3+1
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational461.8 Watt
Miscellaneous
Cables Included1 x serial cable
Rack Mounting KitIncluded
MTBF495,885 hours
Compliant StandardsUL 60950, FCC Part 15 A, CSA 22.2, FCC CFR47 Part 15 A, USGv6
LocalizationNorth America
Dimensions & Weight
Width17.3 in
Depth13.8 in
Height1.7 in
Weight11.22 lbs
Manufacturer Warranty
Service & SupportLimited warranty - replacement - lifetime - response time: next business day | Technical support - phone consulting - 1 year | Technical support - web support - 1 year
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature122 °F
Humidity Range Operating10 - 90% (non-condensing)
Min Storage Temperature-4 °F
Max Storage Temperature158 °F
Humidity Range Storage10 - 90% (non-condensing)
