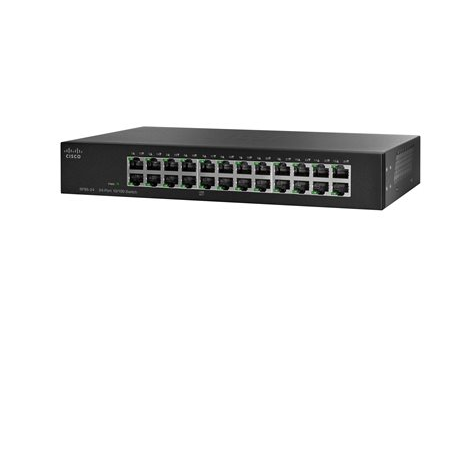

SF 95-24 24-Port 10/100 Switch
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Ease of use
Cisco SF95D-08 works right out of the box, with no software to install and nothing to configure. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standard-based Cisco solution, SF95D-08 is also designed to immediately accommodate all of the devices in your network.
High performance
Cisco SF95D-08 switch delivers the performance you need to run your business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. It supports Gigabit Ethernet speeds, unlocking a different level of capacity and performance in your business network and letting you transfer large files in seconds.
Reduced energy costs
Cisco SF95D-08 switch is designed to help conserve energy by optimizing power use without compromising performance, which protects the environment and reduces your energy costs. In addition, it supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
Support for advanced technologies
The switch includes advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
Specifications
General | |
---|---|
Device Type | Switch - 24 ports - unmanaged |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Fast Ethernet |
Ports | 24 x 10/100 |
Performance | Switching capacity: 4.8 Gbps ¦ Forwarding performance (64-byte packet size): 3.6 Mpps |
Capacity | Jumbo frame size: 9216 |
Jumbo Frame Support | 9216 bytes |
Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Quality of Service (QoS), fanless, Head of Line Blocking Prevention |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Status Indicators | Power, system, link/activity |
Expansion / Connectivity | |
---|---|
Interfaces | 24 x 100Base-TX RJ-45 |
Power | |
---|---|
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
---|---|
Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A |
Dimensions & Weight | |
---|---|
Width | 11 in |
Depth | 6.7 in |
Height | 1.7 in |
Weight | 2.91 lbs |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
---|---|
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
