UG63 Small Indoor IoT LoRaWAN

Hardware System

CPU

528 MHz, ARM Cortex-A7

Memory

256 MB DDR4 RAM

Flash

4 GB eMMC

LoRaWAN

Antenna

2 × Internal Antennas

Channel

8 (Half/Full-duplex)

Frequency Band

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Sensitivity

-140dBm Sensitivity @292bps

Output Power

27dBm Max

Protocol

V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

LBT

Support

Ethernet Interface

Port

1 × RJ45 (PoE PD supported)

Physical Layer

10/100 Base-T (IEEE 802.3)

Data Rate

10/100 Mbps (Auto-Sensing)

Interface

Auto MDI/MDIX

Mode

Full or Half Duplex (Auto-Sensing)

Others

Reset Button

1 × RST

Console Port

1 × Type-C

LED Indicators

1 × SYS, 1 × LoRa

Built-in

Watchdog, RTC, Timer

Software

Network Protocols

PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.

VPN Tunnel

OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN

Management

Web, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform

App

Python SDK

Power Supply

Power Input

1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port

Physical Characteristics

Ingress Protection

IP30

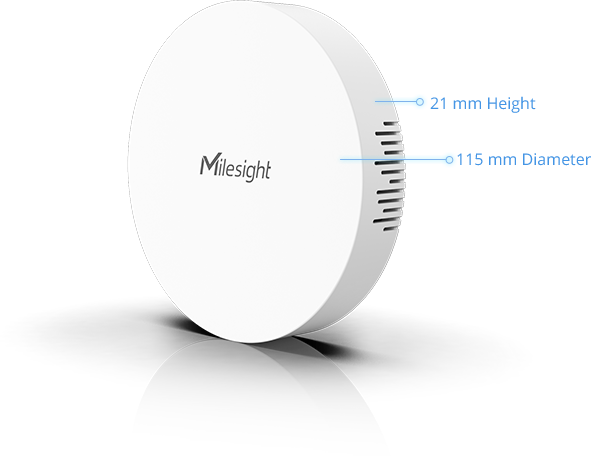

Dimensions

Ф 115 x 21 mm (Ф 4.52 x 0.83 in)

Color & Material

White, PC + ABS

Installation

Desktop, Wall or Ceiling Mounting

Environmental

Operating Temperature

-20°C to +50°C (-4℉ to +122℉)

Storage Temperature

-40°C to +85°C (-40℉ to +185℉)

Ethernet Isolation

1.5 kV RMS

Relative Humidity

0% to 95% (non-condensing) at 25°C/77℉
