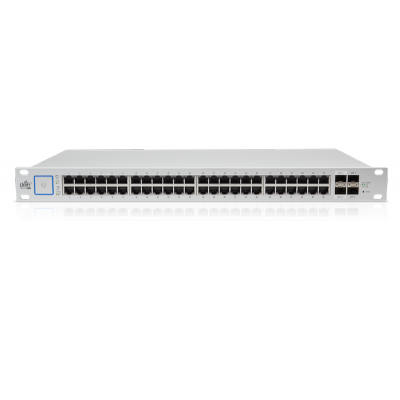

Ubiquiti UniFi Switch US-48-750W - Switch - managed - 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP - rack-mountable - PoE+
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Advanced port management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).
Optical fiber connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ support
The UniFi Switch features auto-sensing IEEE 802.3 af/at and 24 V passive PoE to power multiple devices on the network.
Seamless integration
The UniFi Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations - all controlled from a single interface.
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Non-blocking switching capacity: 70 Gbps | Switching capacity: 140 Gbps | Forwarding performance: 104.16 Mpps |
| Remote Management Protocol | HTTP |
| Features | Non blocking ports |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Port transmission speed, PoE, link/activity |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 34.2 W | 2 x 1000Base-X SFP | 2 x 10GBase-X SFP+ | 1 x console RJ-45 |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Power Provided | 750 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
|---|---|
| Compliant Standards | IC, FCC, RoHS, WEEE, ETSI 300 019 |
| Dimensions & Weight | |
|---|---|
| Width | 19.1 in |
| Depth | 13.7 in |
| Height | 1.7 in |
| Weight | 11.68 lbs |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
