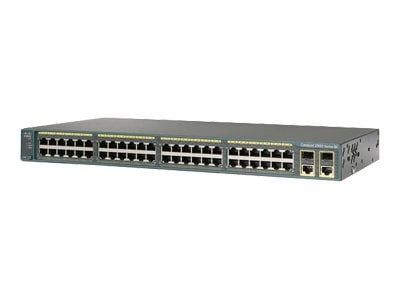

Catalyst 2960 Plus 48 10/100 + 2 T/SFP LAN Lite
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Enterprise-class quality of service
The Cisco 2960-Plus series dwitches offer intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.
Cisco Catalyst SmartOperations
Cisco Catalyst SmartOperations is a comprehensive set of capabilities that simplify LAN planning, deployment, monitoring, and troubleshooting. Deploying SmartOperations tools reduces the time and effort required to operate the network and lowers total cost of ownership (TCO).
Cisco EnergyWise
Cisco EnergyWise empowers IT teams to measure and manage the power consumed by devices connected to the network, providing measurable energy savings and reduced greenhouse gas emissions. EnergyWise policies can be used to control the power consumed by PoE-powered endpoints, desktop and data-center IT equipment, and a wide range of building infrastructure. EnergyWise technology is included on all Cisco Catalyst 2960-Plus series switches.
Network management
The Cisco Catalyst 2960-Plus series switches offer a superior CLI for detailed configuration and administration. 2960-Plus switches are also supported in the full range of Cisco network management solutions.
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 48 x 10/100 + 2 x combo Gigabit SFP |
| Performance | Switching capacity: 16 Gbps | Forwarding performance (64-byte packet size): 10.1 Mpps |
| Capacity | Active VLANs: 255 |
| Jumbo Frame Support | 9018 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | Full duplex capability, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Shaped Round Robin (SRR), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), MAC Address Notification, Management Information Base (MIB), Class of Service (CoS), DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| RAM | 128 MB |
| Flash Memory | 64 MB |
| Status Indicators | Port status, port transmission speed, port duplex mode, power, system, link/activity |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 48 x 100Base-TX RJ-45 | 2 x SFP uplink | 2 x 1000Base-T RJ-45 uplink |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 30.6 Watt |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
|---|---|
| MTBF | 623,000 hours |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, RoHS 2011/65/EU, EN 300386 |
| Software / System Requirements | |
|---|---|
| Software Included | Cisco LAN Base software |
| Dimensions & Weight | |
|---|---|
| Width | 17.7 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 7.94 lbs |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day | Technical support - consulting - 90 days |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
