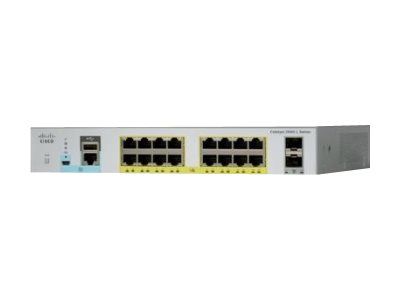

WS-C2960L-16PS-LL

Thương hiệu: Cisco Systerm
Giá: (chưa bao gồm VAT)
Giá so sánh: 25,876,000₫

Catalyst 2960L 16 port GigE with PoE, 2 x 1G SFP, LAN Lite

Cisco 2900 Series
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

Network security

The Cisco Catalyst 2960-L series switches provide a range of security features to limit access to the network and mitigate threats.

Enhanced quality of service

The Cisco Catalyst 2960-L series switches offers intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.

Intelligent power over Ethernet Plus

Cisco Catalyst 2960-L series switches support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ to deliver lower total cost of ownership for deployments. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments

Product Specifications

General
Device TypeSwitch - 16 ports - managed
Enclosure TypeDesktop, rack-mountable
SubtypeGigabit Ethernet
Ports16 x 10/100/1000 + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget120 W
PerformanceSwitching bandwidth: 36 Gbps | Forwarding bandwidth: 18 Gbps
CapacityMAC addresses: 8000 | VLANs supported: 4094 | Active VLANs: 64 | SPAN bidirectional sessions: 1
Jumbo Frame Support10240 bytes
Routing ProtocolIGMP
Remote Management ProtocolSNMP 3, CLI
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+
FeaturesLayer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
ProcessorARM7: 800 MHz
RAM512 MB
Flash Memory256 MB
Status IndicatorsSystem, status, PoE, link/speed
Expansion / Connectivity
Interfaces16 x 1000Base-T RJ-45 PoE+ | 1 x console RJ-45 | 1 x console (mini-USB) Type B | 1 x USB Type A | 2 x 1000Base-X SFP uplink
Power
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Miscellaneous
MTBF2,416,689 hours
Compliant StandardsCISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386
Software / System Requirements
Software IncludedCisco IOS LAN Lite
Dimensions & Weight
Width10.6 in
Depth9.4 in
Height1.7 in
Weight5.73 lbs
Manufacturer Warranty
Service & SupportLimited warranty - replacement - lifetime - response time: next business day | Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature23 °F
Max Operating Temperature104 °F
Humidity Range Operating5 - 90%
Min Storage Temperature-13 °F
Max Storage Temperature158 °F
Humidity Range Storage5 - 95%
