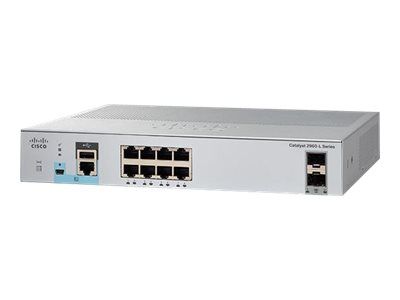

Catalyst 2960L 8 port GigE with PoE, 2 x 1G SFP, LAN Lite
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ
Increase reliability
The Cisco Catalyst 2960L is a high value switch that helps you increase reliability in branches and other deployments while increasing cost effectiveness.
Improve efficiency
The 2960L can be configured with IEEE 802.1x Multi-Domain Authentication to use the same switch port for appropriate voice and data VLANs.
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 67 W |
| Performance | Switching bandwidth: 20 Gbps | Forwarding bandwidth: 10 Gbps |
| Capacity | MAC addresses: 8000 | VLANs supported: 4094 | Active VLANs: 64 | SPAN bidirectional sessions: 1 |
| Jumbo Frame Support | 10240 bytes |
| Routing Protocol | IGMP |
| Remote Management Protocol | SNMP 3, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az |
| Processor | ARM7: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | System, status, PoE, link/speed |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 8 x 1000Base-T RJ-45 | 1 x console RJ-45 | 1 x console (mini-USB) Type B | 1 x USB Type A | 2 x 1000Base-X SFP uplink |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
|---|---|
| MTBF | 2,416,689 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386 |
| Software / System Requirements | |
|---|---|
| Software Included | Cisco IOS LAN Lite |
| Dimensions & Weight | |
|---|---|
| Width | 10.6 in |
| Depth | 9.4 in |
| Height | 1.7 in |
| Weight | 5.64 lbs |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 90% |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% |
