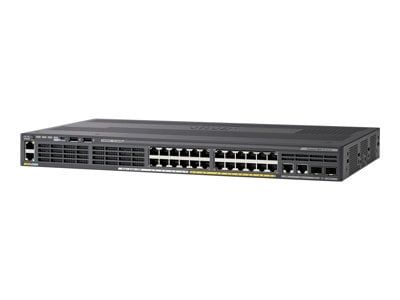

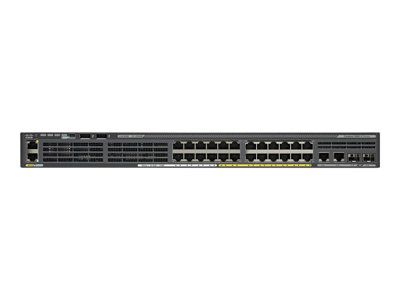

Catalyst 2960-X 24 GigE 2 x 1G SFP LAN Lite
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Network security
The Cisco Catalyst 2960-X series switches provide a range of security features to limit access to the network and mitigate threats.
Redundancy and resiliency
Cisco Catalyst 2960-X series switches offer a number of redundancy and resiliency features to prevent outages and help ensure that the network remains available.
Enhanced Quality of Service
The Cisco Catalyst 2960-X series switches offers intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.
Application visibility
Catalyst 2960-X series switches support NetFlow Lite, which enables IT teams to understand the mix of traffic on their network and identify anomalies by capturing and recording specific packet flows. NetFlow Lite supports flexible sampling of the traffic, and exports flow data in the NetFlow Version 9 format for analysis on a wide range of Cisco and third-party collectors.
Cisco Catalyst SmartOperations
Cisco Catalyst SmartOperations is a comprehensive set of capabilities that simplify LAN planning, deployment, monitoring, and troubleshooting. Deploying SmartOperations tools reduces the time and effort required to operate the network and lowers total cost of ownership (TCO).
Power management
The 2960-X series switches offer a range industry leading features for effective energy efficiency and energy management.
Network management
The Cisco Catalyst 2960-X series switches offer a superior CLI for detailed configuration and administration. 2960-X series switches are also supported in the full range of Cisco network management solutions.
Security management
Cisco Identity Services Engine (ISE) support enables the 2960-X series of switches to offer security management for all devices connected to it.
Product Specifications
General | |
---|---|
Device Type | Switch - 24 ports - managed |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x Gigabit SFP |
Performance | Switching capacity: 100 Gbps | Forwarding performance (64-byte packet size): 68.5 Mpps |
Capacity | Virtual interfaces (VLANs): 64 |
Jumbo Frame Support | 9216 bytes |
Max Units In A Stack | 8 |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
Features | Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX |
Processor | : 600 MHz |
RAM | 512 MB |
Flash Memory | 64 MB |
Status Indicators | Port transmission speed, port duplex mode, system, status, link/activity |
Expansion / Connectivity | |
---|---|
Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | 1 x console - RJ-45 management | 1 x console - mini-USB Type B management | 1 x USB Type A | 1 x 10Base-T/100Base-TX - RJ-45 management | 2 x SFP (mini-GBIC) |
Power | |
---|---|
Power Device | Internal power supply |
Power Redundancy | Optional |
Voltage Required | AC 120/230 V (50/60 Hz) |
Features | Redundant Power System (RPS) connector |
Miscellaneous | |
---|---|
MTBF | 622,350 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, CNS 13438(95) Class A, EN 55022 Class A, EN 300 386 |
Software / System Requirements | |
---|---|
Software Included | Cisco IOS LAN Lite |
Dimensions & Weight | |
---|---|
Width | 17.5 in |
Depth | 11 in |
Height | 1.8 in |
Weight | 8.16 lbs |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty - advance parts replacement - lifetime - response time: 10 days | Technical support - consulting - 90 days |
Environmental Parameters | |
---|---|
Min Operating Temperature | 23 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 10 - 95% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 95% (non-condensing) |
