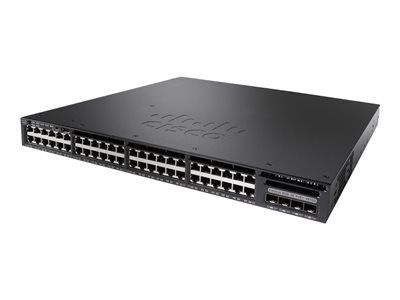

Cisco Catalyst 3650 48 Port Data 4x1G Uplink IP Services
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Converged wired plus wireless access
The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and Flexible Netflow (FNF) across wired and wireless in a seamless fashion.
Cisco StackWise-160 technology
Cisco StackWise-160 technology is built on the highly successful industry-leading StackWise technology, which is a premium stacking architecture. StackWise-160 has a stack bandwidth of 160 Gbps. StackWise-160 uses Cisco IOS software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is managed by an "active" switch elected by the member switches.
Efficient switch operation
Cisco Catalyst 3650 series switch, designed and engineered by Cisco, provides optimum power-saving, EEE, low-power operations for industry best-in-class power management and power consumption capabilities. The Cisco Catalyst 3650 ports are capable of reduced power modes so that ports not in use can move into a lower power utilization state.
Environmentally responsible
Organizations may choose to turn off access point radios to reduce power consumption during off-peak hours. The integrated Wireless LAN controller avoids the deployment of additional devices in the network.
Network management tools
The Cisco Catalyst 3650 series switch offers both a superior CLI for detailed configuration and Cisco Prime infrastructure for unified wired plus wireless management. Prime infrastructure provides day 0 and ongoing provisioning, ongoing monitoring and maintenance, configuration templates, and device and user 360-degree views and serves as the FNF collector for user traffic views.
Superior QoS
The Cisco Catalyst 3650 series offers Gigabit Ethernet speed with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed
Product Specifications
General | |
---|---|
Device Type | Switch - 48 ports - L3 - managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 4 x SFP |
Performance | Switching capacity: 176 Gbps | Forwarding performance: 130.95 Mpps |
Capacity | IPv4 routes: 24000 | NetFlow entries: 48000 | Virtual interfaces (VLANs): 4000 | Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
RAM | 4 GB |
Flash Memory | 2 GB |
Status Indicators | Port transmission speed, port duplex mode, system, active, status |
Expansion / Connectivity | |
---|---|
Interfaces | 48 x 1000Base-T RJ-45 | 1 x USB Type A | 1 x serial (console) RJ-45 management | 1 x management (Gigabit LAN) RJ-45 management | 1 x management (mini-USB) Type B management | 4 x 1000Base-X SFP uplink |
Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
Power | |
---|---|
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 (with optional power supply) |
Power Provided | 250 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
---|---|
Rack Mounting Kit | Included |
MTBF | 527,580 hours |
Compliant Standards | CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A |
Software / System Requirements | |
---|---|
Software Included | Cisco IOS IP Services |
Dimensions & Weight | |
---|---|
Width | 17.5 in |
Depth | 17.6 in |
Height | 1.7 in |
Weight | 15.9 lbs |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty - replacement - lifetime - response time: next business day | Technical support - phone consulting - 90 days |
Environmental Parameters | |
---|---|
Min Operating Temperature | 23 °F |
Max Operating Temperature | 113 °F |
Humidity Range Operating | 5 - 96% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
