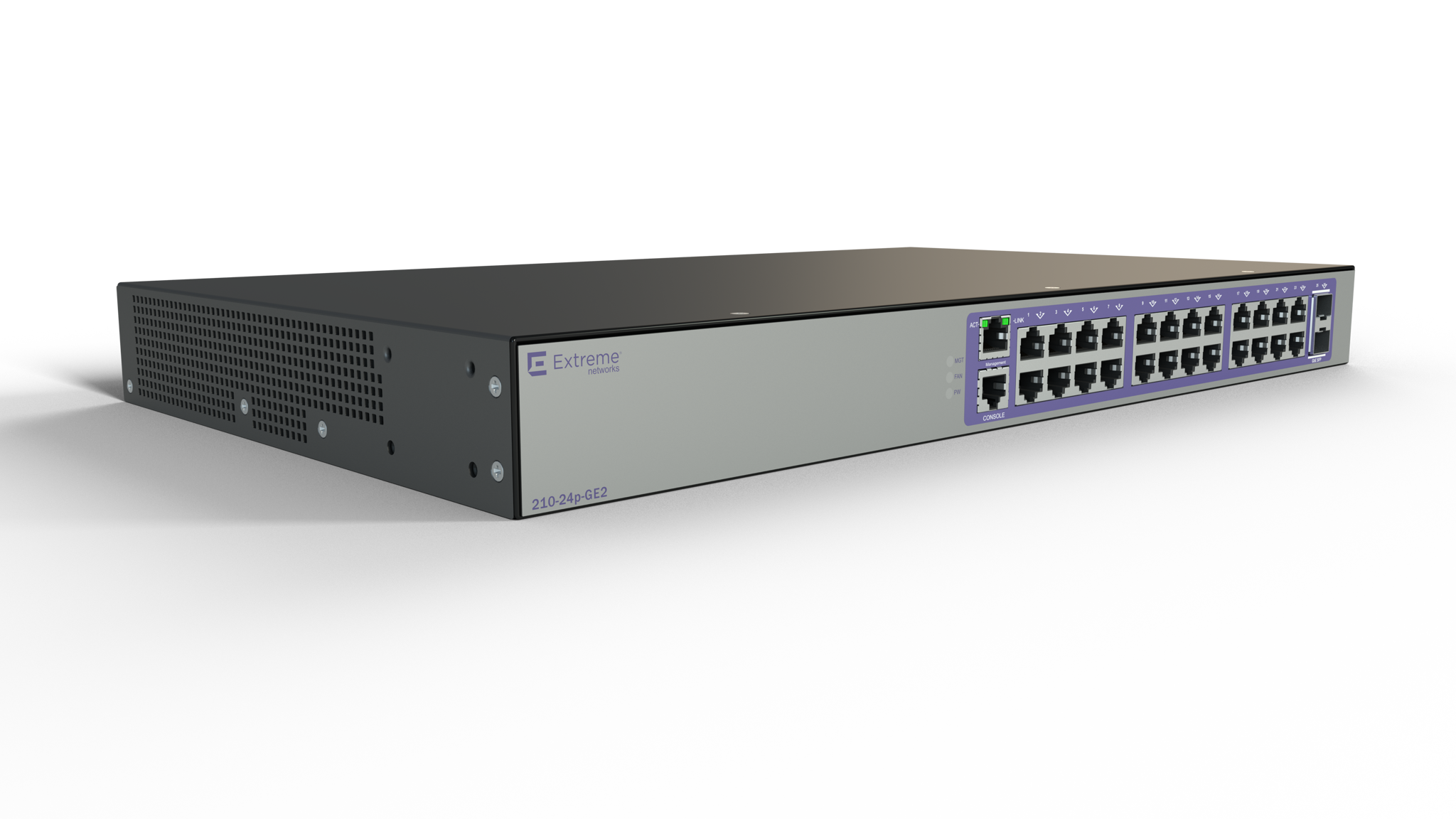

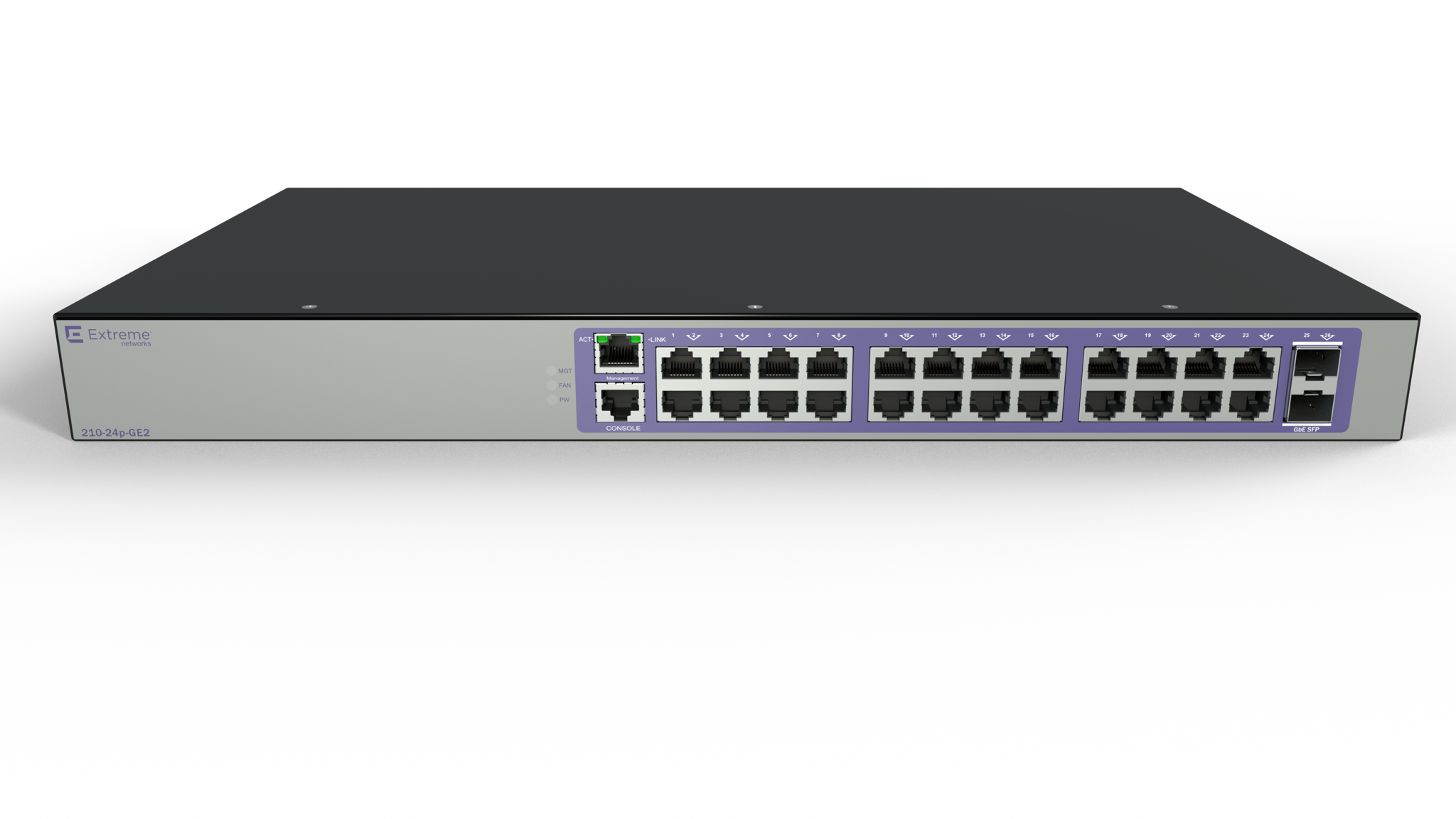

210-Series 24 port 10/100/1000BASE-T PoE+ 2 1GbE unpopulated SFP ports 1 Fixed AC PSU L2 Switching with Static Routes 1 country-specific power cord
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Ideal for Businesses of all Sizes

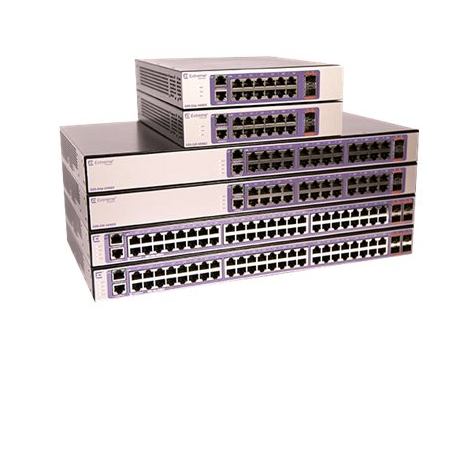

The ExtremeSwitching 200 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices, and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.
Multiple Office Deployment Options
The series provides non-blocking Gigabit per port performance and include either 2 or 4 SFP or SFP+ ports for fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments
Flexible Management Options
The 200 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser or managed by ExtremeManagement for centralized provisioning, monitoring, and troubleshooting.
Specifications
General | |
---|---|
Device Type | Switch - 24 ports - managed |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 185 W |
Performance | Switching throughput: 52 Gbps ¦ Switching throughput: 38.7 Mpps |
Capacity | VLANs supported: 1024 ¦ LAG groups: 6 ¦ ACL: 100 ¦ Traffic classes (queues): 8 ¦ IPv4 routes (static): 60 ¦ MSTP instances: 4 |
MAC Address Table Size | 16000 entries |
Routing Protocol | Static IPv4 routing |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, CLI |
Encryption Algorithm | TLS 1.0, SSL 3.0 |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, E-mail alert, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Equal-Cost Multipath (ECMP), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Remote Switch Port Analyzer (RSPAN), dynamic IP mode, Management Information Base (MIB), MAC address lockout, Multicast VLAN Registration (MVR), Class of Service (CoS), tagged VLAN, Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, Internet Control Message Protocol (ICMP), Secure Copy (SCP), GARP Multicast Registration Protocol (GMRP), Link Aggregation, Management Information Base (MIB) II, Authentication, Authorization and Accounting (AAA), Voice VLAN, LLDP-MED, Guest VLAN, STP BPDU Guard, Industry Standard Discovery Protocol, protected ports, Internal Authentication Server, STP loop guard |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at |
Processor | 1 x ARM Cortex-A9: 400 MHz |
RAM | 512 MB |
Flash Memory | 128 MB |
Expansion / Connectivity | |
---|---|
Interfaces | 24 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x serial RJ-45 ¦ 1 x management (LAN) RJ-45 |
Power | |
---|---|
Power Device | Internal power supply |
Power Consumption Operational | 243 Watt |
Miscellaneous | |
---|---|
Compliant Standards | CB, AS/NZS 60950-1, CCC, EMC, ICES-003 Class A, FCC, UL 60950-1 Second Edition, KCC, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, RoHS 2011/65/EU, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-11:2004, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, WEEE 2012/19/EU, China RoHS SJ/T 11364-2006, EMC 2014/30/EU, EN 61000-3-2:2014, EN 61000-4-5:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, EN 61000-4.4:2012, IEC 60825-1:2007 Class 1, ANSI/TIA-1057, ETSI EN 300 019-2-3 V2.1.2, ETSI EN 300 019-2-2 V2.1.2, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753, ASTM D3580, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Second Edition, EN 55032:2015 Class A, CISPR 32:2015 Class A, CISPR 24:2010 Class A, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, ACMA RCM, AS/NZS CISPR 32 |
Dimensions & Weight | |
---|---|
Width | 17.4 in |
Depth | 10 in |
Height | 1.7 in |
Weight | 8.11 lbs |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
---|---|
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 95% (non-condensing) |
