220-12p-10GE2

Thương hiệu: Extreme Networks
Giá: (chưa bao gồm VAT)
Giá so sánh: 20,093,000₫

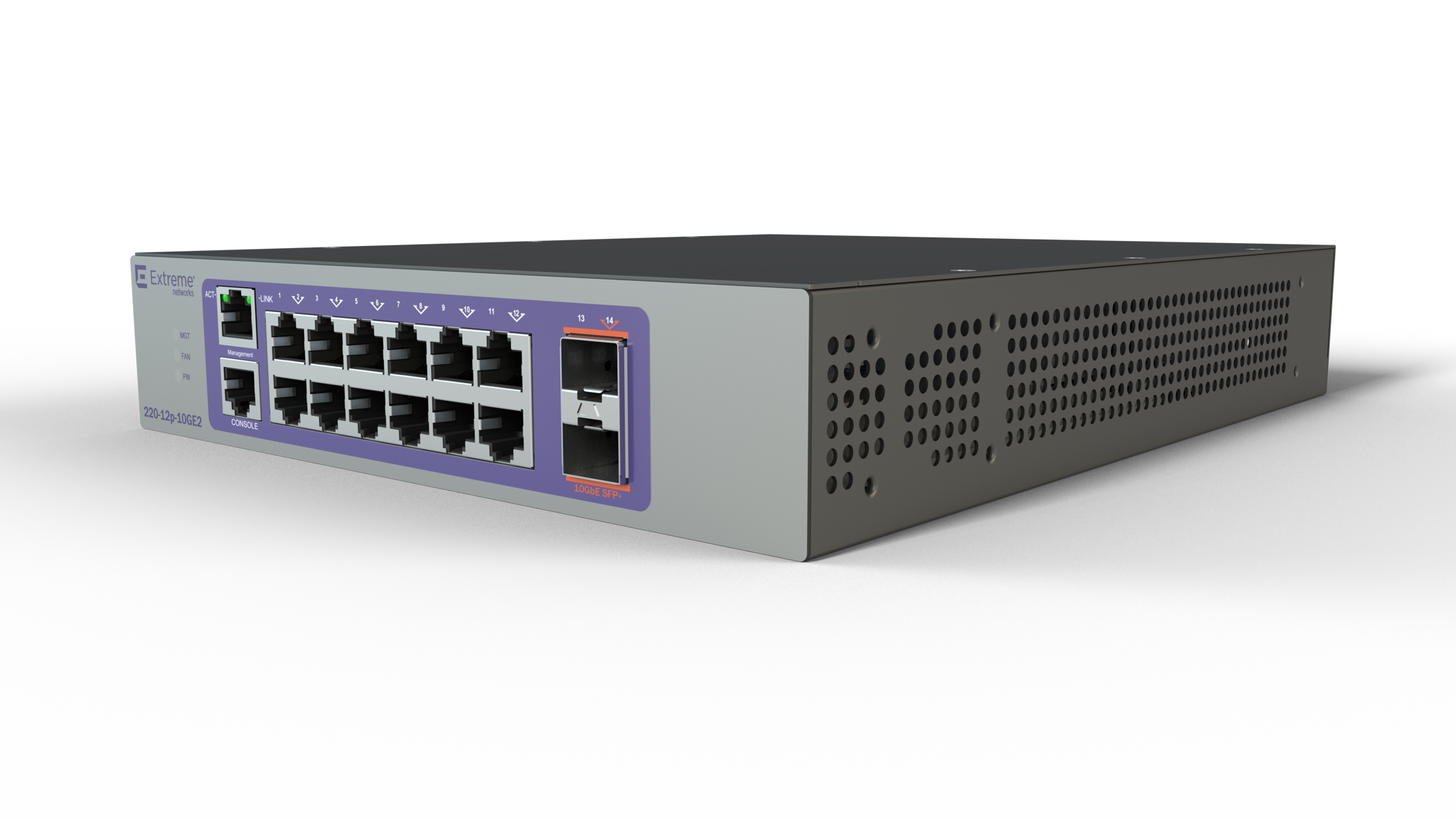

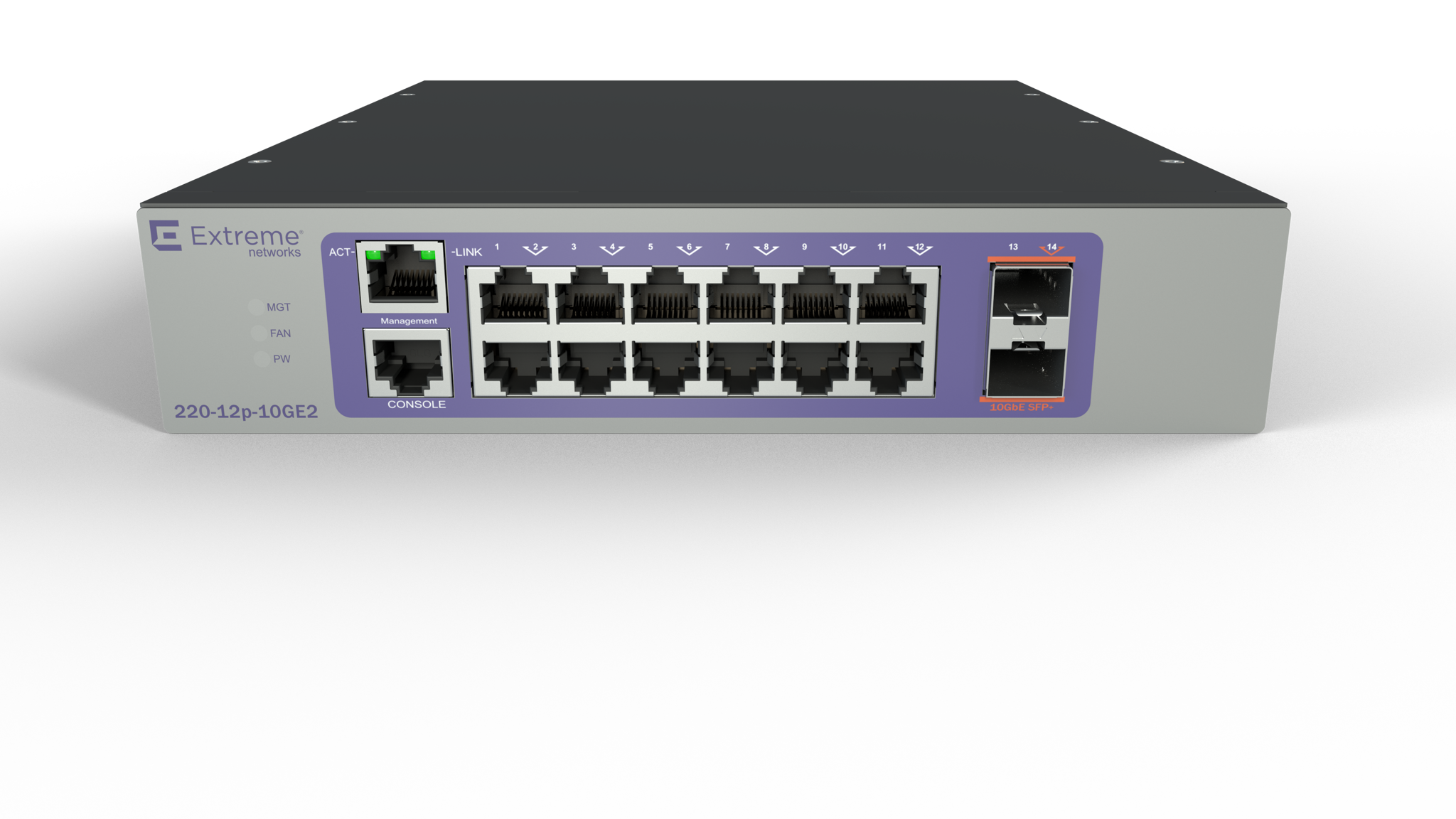

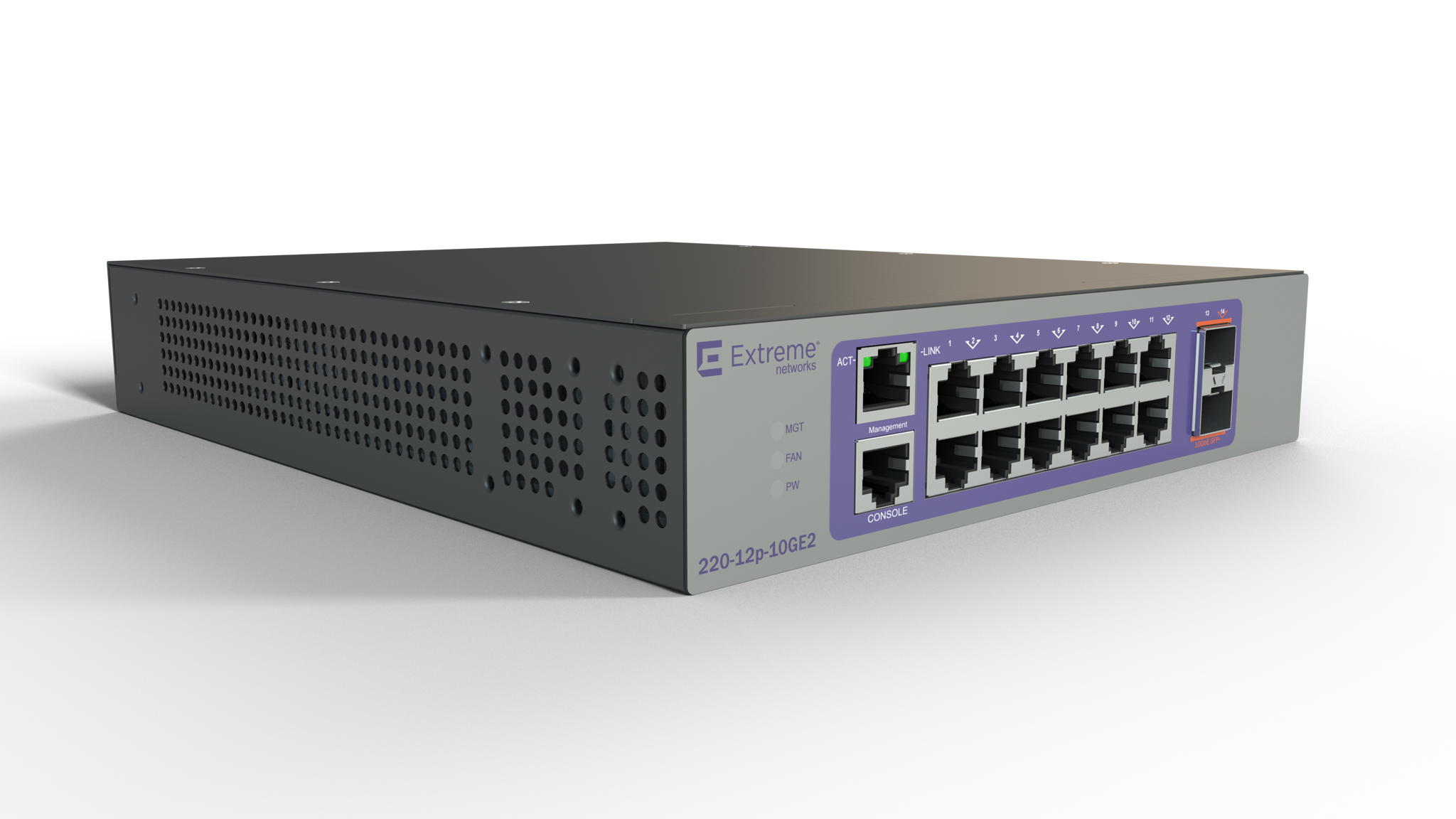

220-Series 12 port 10/100/1000BASE-T PoE+ 2 10GbE unpopulated SFP+ ports 1 Fixed AC PSU L2 Switching with RIP and Static Routes 1 country-specific power cord

200 Series
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

Ideal for Businesses of all Sizes

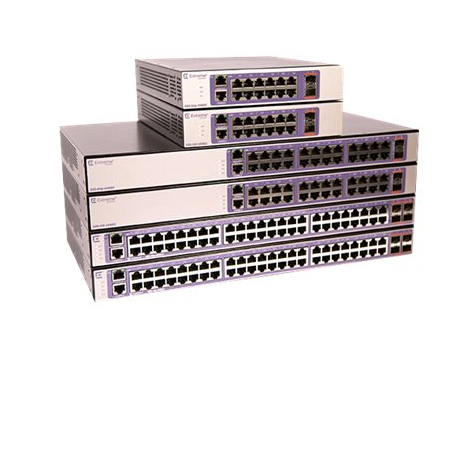

The ExtremeSwitching 200 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices, and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.

Multiple Office Deployment Options

The series provides non-blocking Gigabit per port performance and include either 2 or 4 SFP or SFP+ ports for fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments

Flexible Management Options

The 200 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser or managed by ExtremeManagement for centralized provisioning, monitoring, and troubleshooting.

Specifications

General
Device TypeSwitch - 12 ports - L3 - managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
SubtypeGigabit Ethernet
Ports12 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
PoE Budget123 W
PerformanceSwitching throughput: 64 Gbps ¦ Switching throughput: 47.6 Mpps
CapacityVLANs supported: 1024 ¦ LAG groups: 6 ¦ ACL: 100 ¦ Traffic classes (queues): 8 ¦ IPv6 routes (static): 64
MAC Address Table Size16000 entries
Max Units In A Stack4
Routing ProtocolRIP, RIP-2, IGMP, static IP routing, static IPv6 routing
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, CLI
Encryption AlgorithmTLS 1.0, SSL 3.0
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
FeaturesFlow control, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, E-mail alert, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), dynamic IP mode, Management Information Base (MIB), MAC address lockout, Multicast VLAN Registration (MVR), Class of Service (CoS), tagged VLAN, Loopback, Generic Attribute Registration Protocol (GARP), GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, Internet Control Message Protocol (ICMP), Secure Copy (SCP), GARP Multicast Registration Protocol (GMRP), Link Aggregation, Management Information Base (MIB) II, policy based routing, Authentication, Authorization and Accounting (AAA), Voice VLAN, LLDP-MED, Guest VLAN, STP BPDU Guard, Industry Standard Discovery Protocol, protected ports, Internal Authentication Server, STP loop guard, ICMP throttling, proxy ARP
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at
Processor1 x ARM Cortex-A9: 1 GHz
RAM512 MB
Flash Memory128 MB
Expansion / Connectivity
Interfaces12 x 1000Base-T RJ-45 PoE+ ¦ 2 x 10GBase-X SFP+ ¦ 1 x serial RJ-45 ¦ 1 x management (LAN) RJ-45
Power
Power DeviceInternal power supply
Power RedundancyOptional
Power Consumption Operational155 Watt
Miscellaneous
Compliant StandardsCB, AS/NZS 60950-1, CCC, EMC, ICES-003 Class A, FCC, KCC, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, RoHS 2011/65/EU, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-11:2004, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, WEEE 2012/19/EU, China RoHS SJ/T 11364-2006, EMC 2014/30/EU, EN 61000-3-2:2014, EN 61000-4-5:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, EN 61000-4.4:2012, IEC 60825-1:2007 Class 1, ANSI/TIA-1057, ETSI EN 300 019-2-3 V2.1.2, ETSI EN 300 019-2-2 V2.1.2, UL 60950-1:2014, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753, ASTM D3580, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Second Edition, EN 55032:2015 Class A, CISPR 32:2015 Class A, CISPR 24:2010 Class A, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, ACMA RCM, AS/NZS CISPR 32
Dimensions & Weight
Width8.2 in
Depth10 in
Height1.7 in
Weight4.14 lbs
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Environmental Parameters
Min Operating Temperature32 °F
Max Operating Temperature122 °F
Humidity Range Operating10 - 95% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
Humidity Range Storage10 - 95% (non-condensing)
