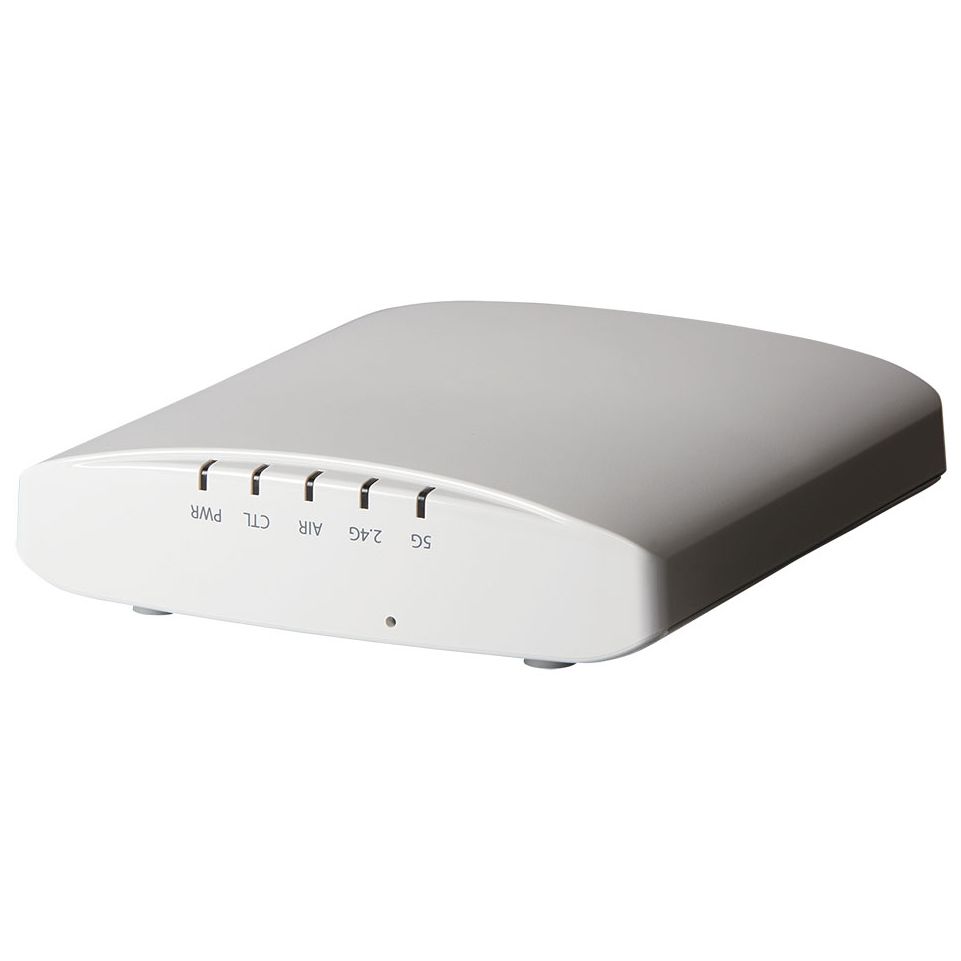

ZoneFlex R320 802.11AC Wave2 MU-MIMO indoor AP, 2*2:2, supports 2.4GHz and 5GHz dual carrier frequency, 1 Ethernet port, 802.3af/at POE power input and 12VDC power supply. Without 12VDC power module.
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Overview:
Smaller locations can face big-time demands on their wireless infrastructure. Whether working out of a small office or connecting to a public hotspot, users are often still accessing the same high-bandwidth applications and content they’d consume anywhere else. And they expect strong, reliable connectivity.
The Ruckus R320 Unleashed delivers consistent, reliable 802.11ac Wave 2 wireless networking at an affordable price. It features the patented Ruckus performance optimization and interference mitigation technologies found in our premier access points to deliver superior user experiences at extended ranges. But it provides them in an ultra-compact form factor built for small and midsize businesses and low-density hotspot environments.
Get industry-leading Wi-Fi performance in a package designed for smaller venues—with a price tag to match.
How can you provide it without breaking the bank? The Ruckus R320 Unleashed delivers consistent, reliable 802.11ac wave 2 wireless networking at an affordable price. It features the patented Ruckus BeamFlex adaptive antenna technology for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences at extended ranges. But it provides them in an ultra-compact form factor built for small venues—with a price tag to match. The R320 is an ideal choice for low-density enterprise and hotspot environments including smalland medium-size businesses, retail locations, restaurants, and multi-tenant small offices and branch offices. The R320 802.11ac wave 2 Wi-Fi AP incorporates patented technologies found only in the Ruckus WiFi portfolio.
- Extended coverage with BeamFlex utilizing multi-directional antenna patterns.
- Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.
The R320 provides an ideal combination of features and performance for smaller environments. Additionally, it supports up to 256 clients per AP. Whether you’re deploying ten or ten thousand APs, the R320 is also easy to manage through Ruckus’ appliance, virtual, controller-less and cloud management options.
Specifications:
| |||||
|---|---|---|---|---|---|
|  |  |  |  |  |
Feature/Description | Mid-range Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+ | Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+ | Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+ | Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex | Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex |
Maximum PHY rate | 2400 Mbps (5GHz) 574 (2.4GHz) | 1300 Mbps (5GHz) 450 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) | 867 Mbps (5GHz) 300 Mbps (2.4GHz) |
Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) |
Concurrent users | 512 | 512 | 512 | 256 | 100 |
Radio chains:streams | 5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO |
3x3:3 |
2x2:2 |
2x2:2 |
2x2:2 |
Antenna patterns (per band) | 128 | 512 | 64 | 64 | 64 |
Antenna gain | Up to 3dBi | Up to 3dBi | Up to 3dBi | Up to 3dBi | Up to 3dBi |
PD-MRC | — | — | |||
Rx sensitivity (2.4/5GHz) | -101dBm | -100dBm | -103dBm | -101dBm | -99dBm |
ChannelFly | |||||
SmartMesh | — | — | |||
USB (IoT Ready) | — | — | |||
Ethernet ports | 1 x 1 GbE 1 x 2.5 GbE |
2 x 1GbE |
2 x 1GbE |
1 x 1GbE |
1 x 1GbE |
Integrated BLE/ZigBee | — | — | — | — | |
WLAN Control and Management | · ZoneDirector · SmartZone · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
