901-R510-WW00

Overview:

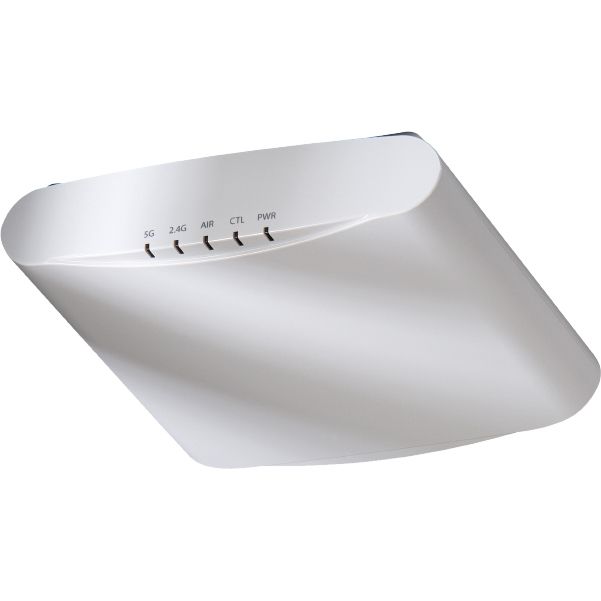

High Performance, 802.11ac Wave 2 Mid-Range Smart Wi-Fi Access Points with Adaptive Antenna Technology

Ruckus R510 Unleashed enables controller-less Wi-Fi architecture for small business environments with superior performance, lower costs and simplified management. Separate controllers and access point licenses are no longer needed, significantly reducing upfront costs. Set-up is also easy, thanks to a simplified web interface that helps businesses configure Wi-Fi in just 60 seconds.

The Ruckus ZoneFlex R510 Unleashed delivers high-performance and reliable 802.11ac wireless networking with MU-MIMO (Multi-User Multiple-Input Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance.

The R510 Unleashed, through its USB port, also enables IoT readiness for technologies like BLE, which helps drive business efficiencies from both a revenue and cost perspective. It does this with existing 802.3af power, obviating the need for expensive, capital intensive switch upgrades.

Each ZoneFlex R510 Unleashed integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antenna design that continually forms and directs each Wi-Fi packet over the best performing signal path.

Using dual-polarized antennas, the R510 Unleashed adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance.

MU-MIMO

MU-MIMO helps Wave 2 and non-Wave 2 clients. The R510 Unleashed can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput.

Advanced WLAN Applications

The ZoneFlex R510 Unleashed supports a wide range of valueadded applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. The ZoneFlex R510 Unleashed works with a wide range of authentication servers including Microsoft’s Active Directory, LDAP, and RADIUS.

Complete Local And Remote Management

The ZoneFlex R510 Unleashed can be securely managed from anywhere at anytime using any browser on any device.

Features:

Superior network efficiency at an affordable price

• Two-stream MU-MIMO 2x2:2 for simultaneous downlink transmissions to multiple Wave 2 client devices
• Concurrent dual-band (5GHz/2.4GHz) support
• 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of user data rate
• Up to 4dB of signal-to-interference and noise (SINR) improvement and up to 10dB of interference mitigation
• Capable of supporting up to 512 clients
• Novel channel selection approach delivering up to 50 percent capacity gain over alternative background scanning approaches

Consistent and predictable performance

• R510 delivers up to twice the range and coverage of competitive products
• Adaptive antenna technology optimizes Wi-Fi performance in most environments
• Automatic interference mitigation, optimized for high-density environments
• Dual-polarized adaptive antennas with 64 antenna patterns per radio for ultra-reliability

Other Features

• 802.11ac Multi-User MIMO (MU-MIMO)
• Dual-band concurrent (5Ghz/2.4GHz)
• BeamFlex+ (PD-MRC) smart antenna, with support for 64 unique antenna patterns enables up to 4 dB of additional gain and up to 10 dB of additional interference mitigation
• Up to an additional 4dB BeamFlex gain / 10dB interference mitigation / 3 dBi physical antenna gain
• Automatic interference mitigation, optimized for high-density environments
• 802.11ac standard Tx Beamforming
• Standard 802.3af Power over Ethernet (PoE)

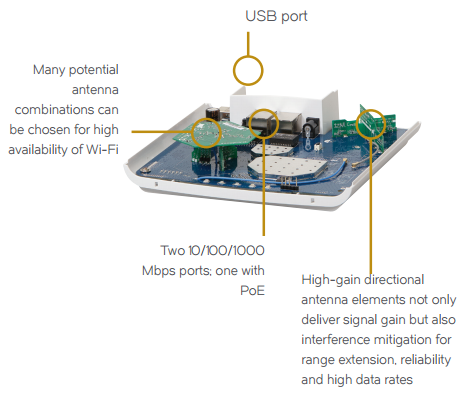

• Two 10/100/1000 Ethernet ports, one with 802.3af Power over Ethernet (PoE)
• USB Port for IoT technologies
• Gateway mode with NAT and DHCP services
• IP multicast video streaming support
• Advanced QoS packet classification and automatic priority for latency-sensitive traffic
• Dynamic, pre-user rate-limiting for hotspot WLANs
• WPA-PSK (AES), 802.1X support for RADIUS and Active Directory*
• Ethernet 802.1x port-based authentication (authenticator and supplicant)
• Dynamic PSK
• Admission control/load balancing
• Band balancing and airtime fairness support
• Captive portal and guest accounts
• Application recognition and control
• SmartWay Bonjour gateway
• SecureHotspot
• SmartMesh

Specifications:

	R650	R610	R510	R320	R310
Feature/Description	Mid-range Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Mid-range 802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+	Entry level 802.11ac Wave 2 dual-concurrent AP with BeamFlex	Entry level 802.11ac Wave 1 dual-concurrent AP with BeamFlex
Maximum PHY rate	2400 Mbps (5GHz) 574 (2.4GHz)	1300  Mbps (5GHz) 450  Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)	867 Mbps (5GHz) 300 Mbps (2.4GHz)
Wi-Fi technology	802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)	802.11ac (5GHz) 802.11n (2.4GHz)
Concurrent users	512	512	512	256	100
Radio chains:streams	5GHz: 4x4:4 MU-MIMO 2.4GHz: 2x2:2 MU-MIMO	3x3:3	2x2:2	2x2:2	2x2:2
Antenna patterns (per band)	128	512	64	64	64
Antenna gain	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi	Up to 3dBi
PD-MRC				—	—
Rx sensitivity (2.4/5GHz)	-101dBm	-100dBm	-103dBm	-101dBm	-99dBm
ChannelFly
SmartMesh				—	—
USB (IoT Ready)				—	—
Ethernet ports	1 x 1 GbE 1 x 2.5 GbE	2 x 1GbE	2 x 1GbE	1 x 1GbE	1 x 1GbE
Integrated BLE/ZigBee		—	—	—	—
WLAN Control and Management	·   ZoneDirector ·   SmartZone ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud	·   ZoneDirector ·   SmartZone ·   Unleashed ·   RUCKUS Cloud
