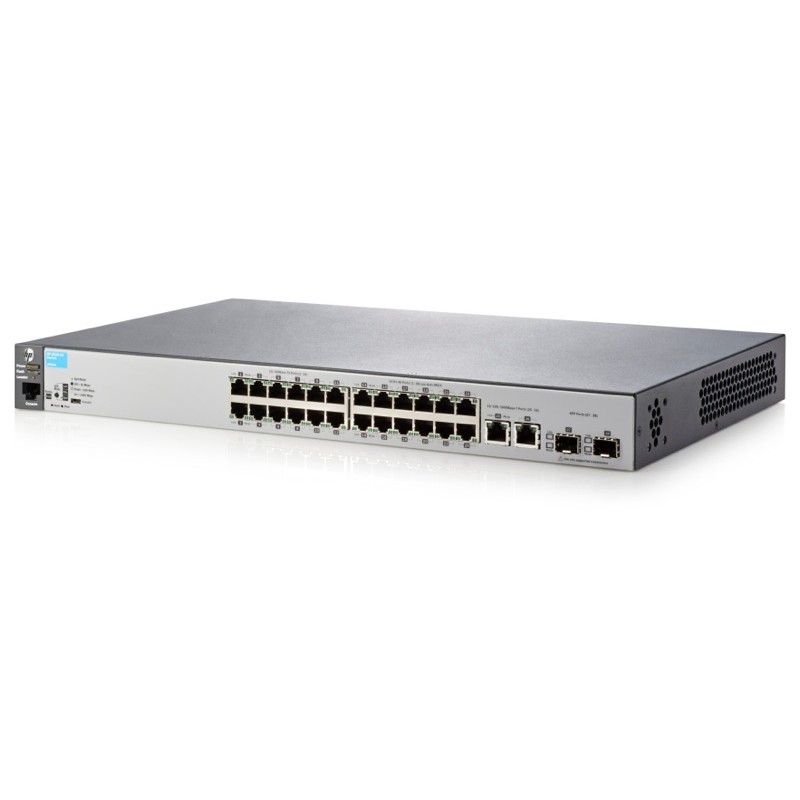

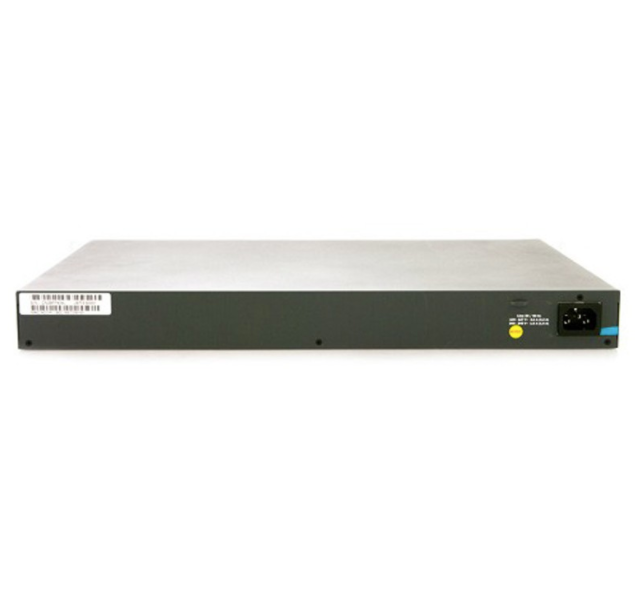

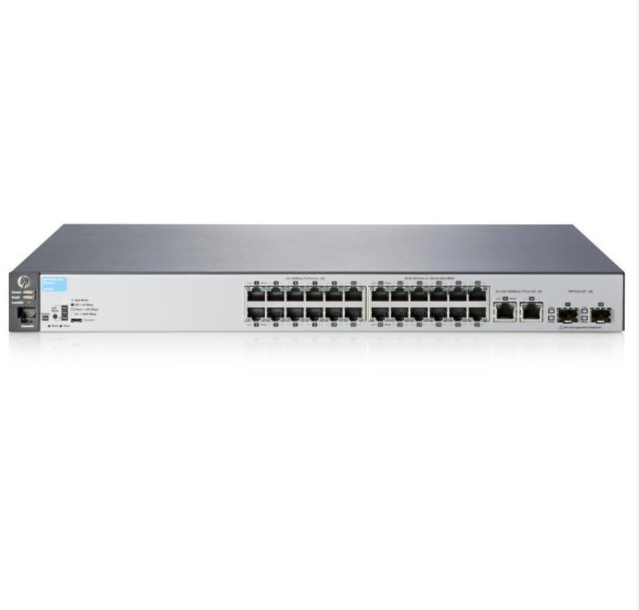

HPE J9782A - Aruba 2530 24 Switch
Aruba 2530 24 Switch
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Aruba 2530 Series Fast Ethernet devices are fully managed Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9782A has 24 x 10/100 ports. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports. Designed for entry level to midsize enterprise networks, these switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 host support.
Quick Spec
Product Code | J9782A |
Type | Aruba 2530-24 Switch |
Ports |
|
Throughput | up to 9.5 million pps (64-byte packets) |
Switching capacity | 12.8 Gb/s |
Dimensions (W x D x H) | 44.2 x 24.64 x 4.45 cm (17.4 x 9.7 x 1.75 in) (1U height) |
Weight | 2.59 kg (5.7 lb) |
J9782A Specification
J9782A Specifications | |
Type | Aruba 2530-24 Switch |
System specifications | |
Ports |
|
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
Performance (IPv6 Ready Certified) | |
1000 Mb latency | < 1.1 µs (LIFO 64-byte packets) |
100 Mb Latency | < 1.7 µs (LIFO 64-byte packets) |
Throughput | up to 9.5 million pps (64-byte packets) |
Switching capacity | 12.8 Gb/s |
MAC address table size | 16000 entries |
Physical specifications | |
Dimensions (W x D x H) | 44.2 x 24.64 x 4.45 cm (17.4 x 9.7 x 1.75 in) (1U height) |
Weight | 2.59 kg (5.7 lb) |
Electrical specifications | |
Maximum heat dissipation | 50 BTU/hr (52.75 kJ/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 0.3/0.2 A |
Idle power | 8.4 W |
Maximum power rating | 14.7 W |
Frequency | 50/60 Hz |
NOTE: 1: Idle power is the actual power consumption of the device with no ports connected. 2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. | |
Environmental specifications | |
Operating temperature | 0° to 45°C (32° to 113°F) |
Operating relative humidity | 15% to 95% @ 40°C (104°F), noncondensing |
Non-operating/storage temperature | -40° to 70°C (-40° to 158°F) |
Non-operating/storage relative humidity | 15% to 90% @ 65°C (149°F), noncondensing |
Altitude | up to 10,000 ft (3 km) |
Acoustic | Power: 0 dB, Pressure: 0 dB |
Safety agency certifications | |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required. | |
