J9780A

Product Code

J9780A

Type

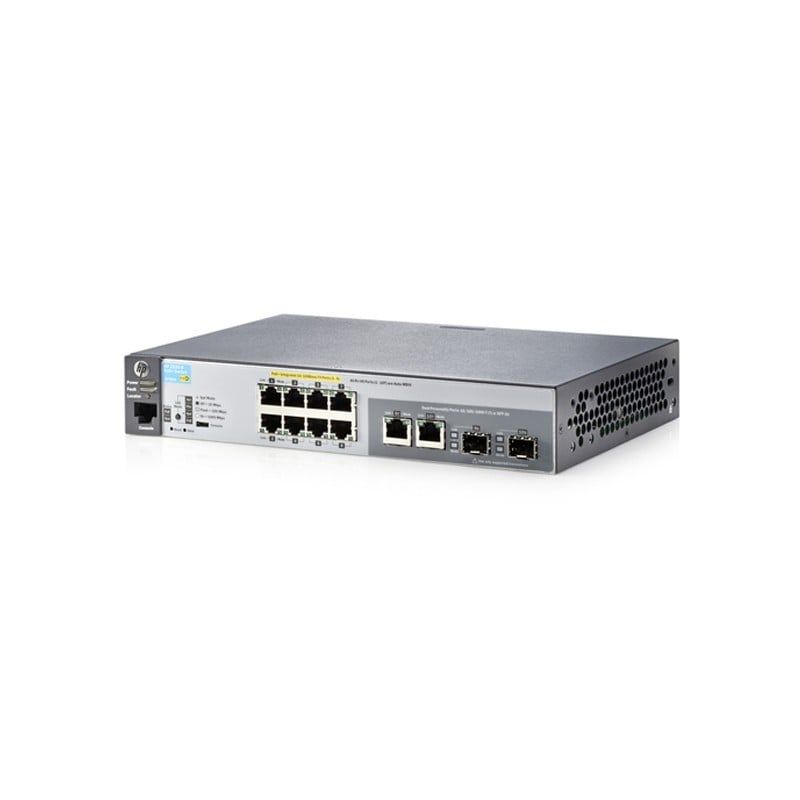

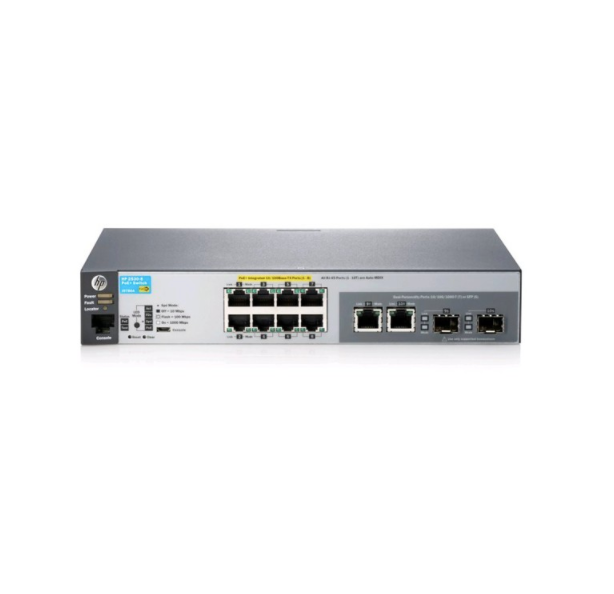

Aruba 2530-8-PoE+ Switch

Ports

• · 8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
• · 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports.
• · 1 dual-personality (RJ-45 or USB micro-B) serial console port.

PoE power

67 W

Throughput

Up to 4.1 Mp/s (64-byte packets)

Switching capacity

5.6 Gb/s

Dimensions (W x D x H)

25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)

Weight

2.0 lb (0.91 kg)

J9780A Specifications

Type

Aruba 2530-8-PoE+ Switch

System specifications

Ports

• · 8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
• · 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports.
• · 1 dual-personality (RJ-45 or USB micro-B) serial console port.

Memory and processor

Processor ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated.

Mounting

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.

Management

IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.

Performance (IPv6 Ready Certified)

1000 Mb latency

< 2.3µs (LIFO 64-byte packets)

100 Mb Latency

< 1.3 µs (LIFO 64-byte packets)

Throughput

Up to 4.1 Mp/s (64-byte packets)

Switching capacity

5.6 Gb/s

MAC address table size

16000 entries

Physical specifications

Dimensions (W x D x H)

25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)

Weight

2.0 lb (0.91 kg)

Electrical specifications

Maximum heat dissipation

29 BTU/hr (30.6 kJ/hr), (switch only: 29 BTU/hr; combined switch + max. PoE devices: 262 TU/hr).

Voltage

100 - 127 / 200 - 240 V ac

Current

1.4 A

Idle power

5.8 W

Maximum power rating

76.7 W

PoE power

67 W

Frequency

50/60 Hz

NOTE: 1: Idle power is the actual power consumption of the device with no ports connected.

2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports.

Environmental specifications

Operating temperature

0° to 45°C (32° to 113°F)

Operating relative humidity

15% to 95% @ 40°C (104°F), noncondensing

Non-operating/storage temperature

-40° to 70°C (-40° to 158°F)

Non-operating/storage relative humidity

15% to 90% @65°C ( 149°F), noncondensing

Altitude

Up to 3 km (10,000 ft)

Acoustic

Power: 0 dB, Pressure: 0 dB

Safety agency certifications

Safety

UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1

NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
