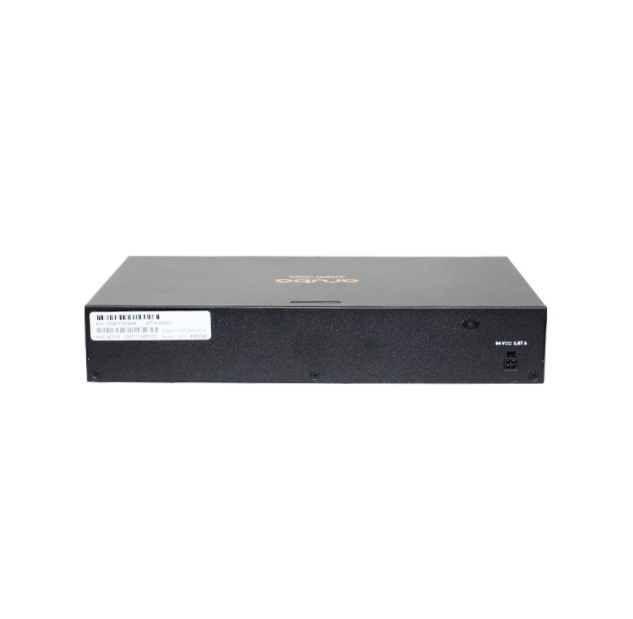

HPE J9774A - Aruba 2530 Switch

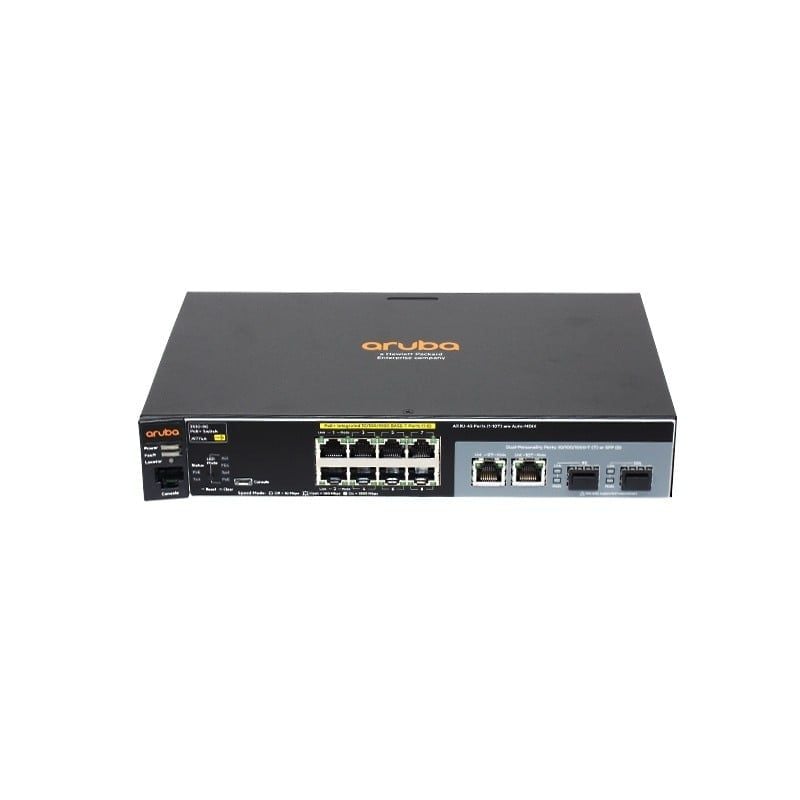

Aruba 2530 8G PoE+ Switch
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Aruba 2530 Series Gigabit Ethernet devices are enterprise class, fully managed, Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. Designed for entry level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 host support. This J9774A has 8 x 10/100/1000 PoE+ ports with a power budget of 67W. Additionally the switch has two Gigabit 10/100/1000 dual personality shared with two SFP ports.
Quick Spec
Product Code | J9774A |
Type | Aruba 2530-8G-PoE+ Switch |
Ports | · 8 × RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) · 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
Switching capacity | 20 Gb/s |
PoE power | 67 W |
Minimum dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
Weight | 1 kg (2.2 lb) |
J9774A Specification
J9774A Specifications | |
Type | Aruba 2530-8G-PoE+ Switch |
System specifications | |
Ports | · 8 × RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 2 × dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) · 1 dual-personality (RJ-45 or USB micro-B) serial console port. |
Memory and processor | Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated. |
Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB. |
Performance (IPv6 Ready Certified) | |
1000 Mb latency | < 2.6 µs (LIFO 64-byte packets) |
100 Mb Latency | < 7.4µs (LIFO 64-byte packets) |
Throughput | Up to 14.8 million pps (64-byte packets) |
Switching capacity | 20 Gb/s |
MAC address table size | 16000 entries |
Physical specifications | |
Dimensions (W x D x H) | 25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height) |
Weight | 1 kg (2.2 lb) |
Electrical specifications | |
Maximum heat dissipation | 65 BTU/hr (68.58 kJ/hr), (switch only: 65 BTU/hr; combined switch + max. PoE devices: 293 BTU/hr) |
Voltage | 100 - 127 / 200 - 240 V ac |
Current | 1.4 A |
Idle power | 13.4 W |
Maximum power rating | 86 W |
PoE power | 67 W |
Frequency | 50/60 Hz |
Environmental specifications | |
Operating temperature | 0° to 45°C (32° to 113°F) |
Operating relative humidity | 15% to 95% @ 40°C (104°F), non-condensing |
Non-operating/storage temperature | -40° to 70°C (40° to 158°F) |
Non-operating/storage relative humidity | 15% to 90% @ 65°C (149°F), noncondensing |
Altitude | Up to 3 km (10,000 ft) |
Acoustic | Power: 0 dB, Pressure: 0 dB |
Safety agency certifications | |
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
