Aruba AP-275

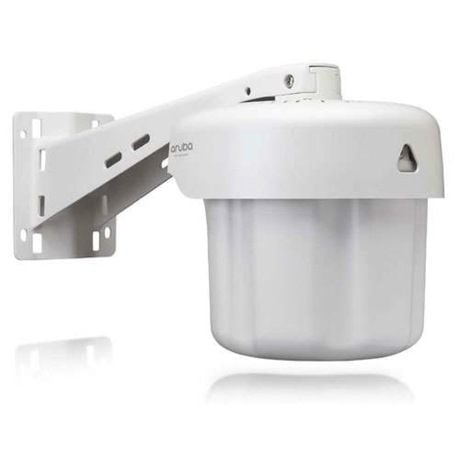

Innovative and aesthetically-designed, our 270-series outdoor APs deliver fast and reliable 802.11ac Wi-Fi performance under any weather conditions.

The three-stream 270 series also enables 802.11n mobile devices to operate up to three-times faster at the same distance from the AP.

Purpose-built for the harshest outdoor environments, 270-series APs can withstand extreme temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

• ACCESS POINT MODELS

  AP-275 and IAP-275 2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max) radios, each with 3×3 MIMO and three integrated omni-directional antennas AP-274 and IAP-274 2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max) radios, each with 3×3 MIMO and three external antenna connectors AP-277 and IAP-277 2.4-GHz and 5-GHz radios, each with 3x3 MIMO and three integrated 80° H x 80° V beamwidth directional antennas

  WIRELESS RADIO SPECIFICATIONS

  AP type: Outdoor, dual radio, 5-GHz 802.11ac and 2.4-GHz 802.11n In addition to 802.11n data rates, the 2.4-GHz radio supports 802.11ac data rates using 256-QAM modulation. This gives TurboQAM-enabled clients a 33% boost above the maximum supported data rate to deliver up to 600 Mbps. 3×3 MIMO with three spatial streams and up to 1.3 Gbps wireless data rate Supported frequency bands (country-specific restrictions apply): 2.4000 GHz to 2.4835 GHz 5.150 GHz to 5.250 GHz 5.250 GHz to 5.350 GHz 5.470 GHz to 5.725 GHz 5.725 GHz to 5.875 GHz Available channels: Dependent upon configured regulatory domain Dynamic frequency selection (DFS) optimizes the use of available RF spectrum Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-pision multiplexing (OFDM) 802.11n/ac: 3×3 MIMO with up to three spatial streams Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (with TurboQAM clients) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (aggregate, conducted total) transmit power (limited) by local regulatory requirements): 2.4-GHz band: +28 dBm (23 dBm per chain) 5-GHz bands: +28 dBm (23 dBm per chain) Advanced cellular coexistence (ACC) feature to minimize interference from cellular systems Maximum ratio combining (MRC) for improved receiver performance Cyclic delay persity (CDD) for improved downlink RF performance Short guard interval for 20-MHz, 40-MHz and 80-MHz channels Space-time block coding (STBC) for increased range and improved reception Low-density parity check (LDPC) for high-efficiency error correction and increased throughput Explicit transmit beam-forming (TxBF) for increased reliability in signal delivery Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 450 (MCS0 to MCS23, 1 to 3 spatial streams) 802.11ac: 6.5 to 1,300 (MCS0 to MCS9, 1 to 3 spatial streams 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80 802.11n/ac packet aggregation: A-MPDU, A-MSDU Power Maximum power consumption: 23 watts. Direct AC source: 100-240 Volt AC Power over Ethernet (PoE): 48 Vdc (nominal) 802.3at compliant source

  ANTENNAS

  AP-274: Six N-type female connectors for external antennas. AP-275: Six integrated omni-directional antennas for 3×3 MIMO with maximum antenna gain of 5 dBi in 2.4 GHz and 5 dBi in 5 GHz. Built-in antennas are optimized for horizontal mounted orientation of AP-275. AP-277: Six integrated multipolarized directional antennas with 80° H x 80° V beamwidths for 3 x 3 MIMO with maximum antenna gain of 6.5 dBi in 2.4 GHz and 5GHz.

  REGULATORY MODEL NUMBERS
  AP-274 and IAP-274: APEX0101 AP-275 and IAP-275: APEX0100 AP-277 and IAP-277: APEX0102

  WARRANTY
  Aruba limited lifetime warranty

• MOUNTING

  Must be ordered separately Optional mounting kits: AP-270-MNT-V1: Aruba 270 series AP long mount kit for pole/wall mounting. Reduces impact of obstruction by pole or extends away from corner. AP-270-MNT-V2: Aruba 270 series AP short mount kit for pole/wall mounting AP-270-MNT-H1: Aruba 270 series AP mount kit for hanging from inclined/horizontal structures AP-270-MNT-H2: Low profile mount primarily for AP-277

  ENVIRONMENTAL
  Operating: Temperature: -40° C to +65° C (-40° F to +150°F) Humidity: 5% to 95% non-condensing Storage and transportation Temperature: -40° C to +70° C (-40° F to +158°F) Maximum operating altitude: 3000m Chassis rating: IP66 and IP67 Wind survivability: Up to 165 mph Shock and vibration: ETSI 300-19-2-4 spec T41.E 4M3

  OTHER INTERFACES

  One PoE+ PD port 10/100/1000BASE-T Ethernet network interfaces (RJ-45) Auto-sensing link speed and MDI/MDX One port 10/100/1000BASE-T Ethernet network interfaces (RJ-45) Auto-sensing link speed and MDI/MDX AC power interface, power cords sold separately Serial console interface (micro USB) Reset button Visual indicator (LED): Power/system status; automatically disabled after initial operation period

  MECHANICAL

  AP-274 Dimensions/weight (excluding mount): 23 cm (W) x 24 cm (D) x 19 cm (H) with aesthetic cover 9.0” (W) x 9.4” (D) x 7.5” (H) 2.7 kg/6 lbs 23 cm (W) x 24 cm (D) x 14 cm (H) without aesthetic cover 9.0” (W) x 9.4” (D) x 5.5” (H) 2.4 kg/5.3 lbs AP-275 Dimensions/weight (excluding mount): 23 cm (W) x 24 cm (D) x 27 cm (H) 9.0” (W) x 9.4” (D) x 10.6” (H) 2.4 kg/5.3 lbs AP-277 Dimensions/weight (excluding mount): 23 cm (W) x 22 cm (D) x 13 cm (H) 9.0" (W) x 8.7" (D) x 5.1" (H) 2.1 kg/4.6 lbs

  REGULATORY
  FCC/Industry of Canada CE Marked R&TTE Directive 1999/5/EC Low Voltage Directive 2006/95/EC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, please see your Aruba representative.

  CERTIFICATIONS
  CB Scheme Safety, cTUVus Wi-Fi Alliance certified 802.11a/b/g/n/ac

  MINIMUM SOFTWARE VERSIONS
  ArubaOS 6.4 (AP-274, AP-275) Aruba OS 6.4.3 (AP-277) Aruba Instant 4.1 (AP-274, AP-275) Aruba Instant 4.2.0 (AP-277)
