HPE JX966A - Aruba Access Point
Aruba AP-365 (RW) Outdoor AP
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Multifunctional 360 Series outdoor 802.11ac Wave 2 access points deliver cost-effective, wireless connectivity for mobile and IoT devices in educational, enterprise, retail, and industrial settings.
Able to survive in harsh outdoor environments, the 360 Series can withstand exposure to high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.
UNIQUE BENEFITS - Delivers 1.17 Gbps aggregate throughput
- Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment
- Quality of service for unified communication apps
- Supports priority handling and policy enforcement for unified communication apps, including cellular Wi-Fi calling and Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
- Best-in-class RF management
- Integrated Adaptive Radio Management™ technology manages the 2.4-GHz and 5-GHz radio bands and ensures that APs stay clear of RF interference
- Built-in Bluetooth Low-Energy (BLE) radio
- Enables proximity-based push notifications and location-based services for BLE-enabled mobile devices
- Enables management for deployment of battery powered Aruba Beacons
- Spectrum analysis
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference
- Wireless mesh
- Wireless mesh connections are convenient where Ethernet drops are not available
CHOOSE YOUR OPERATING MODE The 360 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.
- Controller-managed AP or Remote AP (RAP) running ArubaOS™ – When managed by Aruba Mobility Controllers, 360 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Aruba Mobility Controller data sheets for more details.
- Aruba 360 Series APs running InstantOS™ – In Aruba Instant mode, a single AP automatically distributes the network configuration with other APs in Instant mode in the WLAN.
- Air monitor
- Hybrid WLAN AP and air monitor
- Secure enterprise mesh
For large installations across multiple sites, the Aruba Activate™ service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Aruba APs in Instant mode are factory shipped to any site and configure themselves when powered up.
If WLAN and network requirements change, a built-in migration path allows 360 Series APs in Instant mode to become part of a WLAN that is centrally managed by a Mobility Controller.
SPECIFICATIONS - AP-365
- 2.4-GHz (300 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2x2 MIMO and integrated omni- directional antennas.
- AP-367
- 2.4-GHz (300 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2x2 MIMO and integrated directional antennas.
WIRELESS RADIO SPECIFICATIONS - AP type: outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n
- 2x2 MIMO with two spatial streams and up to 1,266 Mbps wireless data rate
- Supported frequency bands (country-specific restrictions apply):
- 2.4000 GHz to 2.4835 GHz
- 5.150 GHz to 5.250 GHz
- 5.250 GHz to 5.350 GHz
- 5.470 GHz to 5.725 GHz
- 5.725 GHz to 5.875 GHz
- Available channels: Dependent upon configured regulatory domain
- Dynamic Frequency Selection (DFS) compliant to radar coexistence requirements
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-pision multiplexing (OFDM)
- 802.11n/ac: 2x2 MU-MIMO with up to two spatial streams
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- Transmit power: Configurable in increments of 0.5 dBm
- Maximum (conducted aggregate) transmit power (limited by local regulatory requirements):
- 2.4-GHz band: +26 dBm (23 dBm per chain)
- 5-GHz bands: +25 dBm (22 dBm per chain)
- Advanced cellular coexistence (ACC) feature to effectively deal with interference from cellular systems
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay persity (CDD) for improved downlink RF performance
- Short guard interval for 20-MHz, 40-MHz and 80-MHz channels
- Space-time block coding (STBC) for increased range and improved reception
- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
- Transmit beam-forming (TxBF) for increased reliability in signal delivery
- 802.11ac wave 2 MU-MIMO
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11ac very high throughput (VHT) support: VHT 20/40/80
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU Power
- Maximum power consumption: 12.5 watts
- Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af-compliant source
ANTENNAS Supports 802.11ac TxBF which provides an effectively infinite variety of antenna patterns
- AP-365: Integrated Omni antennas (H and V polarized)
- 2.7 dBi @ 2.4 GHz
- 4.3 dBi @ 5.x GHz
- AP-367: Integrated Directional antennas (+/-45 polarized)
- 6.3 dBi @ 2.4 GHz (90° Vertical x 90° Horizontal)
- 6.5 dBi @ 5.x GHz (90° Vertical x 100° Horizontal)
- AP-365: Integrated Omni antennas (H and V polarized)
OTHER INTERFACES - One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 802.3af PoE
- Serial console interface (micro USB)
- Reset button
- Visual indicator (LED):
- Power/system status

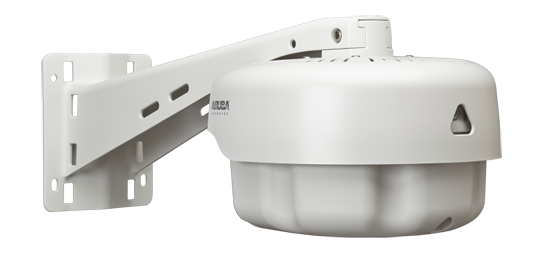

MOUNTING - Ordered separately
- Optional mounting kits:
- AP-270-MNT-V1: Outdoor AP long mount kit for pole/wall mounting. Reduces impact of obstruction by pole or extends away from corner
- AP-270-MNT-V2: Outdoor AP short mount kit for pole/wall mounting
- AP-270-MNT-H1: Outdoor AP mount kit for hanging from inclined/horizontal structures
- AP-270-MNT-H2: Outdoor AP flush mount kit for hanging from inclined/horizontal structures
MECHANICAL - Dimensions/weight (unit, excluding mount accessories):
- 165mm (W) x 165mm (D) x 110mm (H), 6.5" (W) x 6.5" (D) 4.3" (H)
- 807g/1.78lbs (AP-365)
815g/1.80lbs (AP-367)
- Dimensions/weight (shipping):
- 198mm (W) x 200mm (D) x 128mm (H), 7.8" (W) x 7.9" (D) x 5.0" (H)
- 1,115g/2.46lbs (AP-365)
1,123g/2.48lbs (AP-367)
ENVIRONMENTAL - Operating:
- Temperature: -40° C to +55° C (-40° F to +131°F) ambient in full sun
- Humidity: 5% to 95% non-condensing
- Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158°F)
- EN 300 019 Storage and Transportation
- Shock, vibration, and earthquake
- IEC 60068-2-64/-27/-6
- Weather resistance
- IP66/67
- ASTM B117-07A: Salt spray testing per UL50 NEMA 4x
- EN 300 019 Environmental testing
- Non-weather protected locations
- Full solar exposure
REGULATORY - FCC/Industry of Canada
- CE Marked
- R&TTE Directive 1995/5/EC
- Low Voltage Directive 72/23/EEC
- EN 300 328
- EN 301 489
- EN 301 893
- UL/IEC/EN 60950
- EN 60601-1-1, EN60601-1-2
For more country-specific regulatory information and approvals, please see your Aruba representative.
REGULATORY MODEL NUMBERS - AP-365: APEX0365
- AP-367: APEX0367
CERTIFICATIONS - CB Scheme Safety, cTUVus
- Wi-Fi CERTIFIED™ a,b,g,n
- Wi-Fi CERTIFIED™ ac (with wave 2 features)
WARRANTY Aruba limited lifetime warranty MINIMUM SOFTWARE VERSIONS - Unified ArubaOS and Instant 6.5.2.0 and 8.2.0
