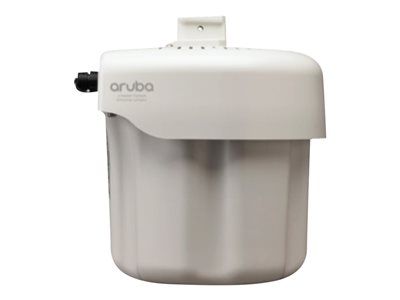

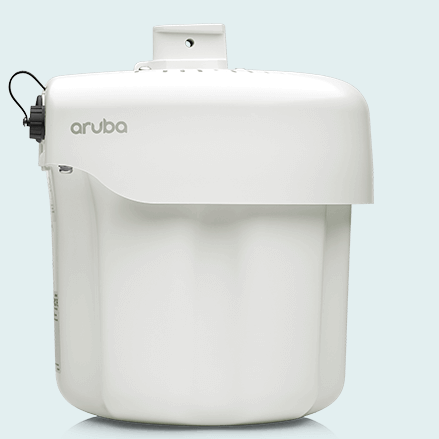

Aruba AP-374

Thương hiệu: Aruba Networking

Loại: Aruba Instant

Giá: (chưa bao gồm VAT)

Aruba AP-374 (RW) 802.11n/ac Dual 2x2:2/4x4:4 Radio 6xNf Connectors Outdoor AP

Văn Phòng Công Ty

HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM

0907771575

(Xem bản đồ)

HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM

0987229729

(Xem bản đồ)

VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

0987229729

(Xem bản đồ)

MIỄN PHÍ VẬN CHUYỂN

THANH TOÁN ĐẢM BẢO

HỖ TRỢ 24/7

HOÀN TRẢ MIỄN PHÍ

Weatherproof and temperature hardened, Aruba 370 series access points deliver 802.11ac Wave 2 Gigabit Wi-Fi to outdoor and environmentally challenging locations.

Delivers 4x4:4SS MU-MIMO capability, Aruba’s advanced ClientMatch and an integrated Bluetooth beacon to enable Aruba location services. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

UNIQUE BENEFITS
Dual Radio 802.11ac access point with Multi-User MIMO Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients). Built-in Bluetooth Low-Energy (BLE) radio Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time. Advanced Cellular Coexistence (ACC) Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment. Industrial design for harsh indoor and outdoor environments Sealed connector interfaces to lock out dust and moisture Quality of service for unified communication apps Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat, and desktop sharing. Best-in-class RF management Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment including channel width, channel selection and transmit power. Spectrum analysis Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference. Wireless mesh Wireless mesh connections are convenient where Ethernet drops are not available. Intelligent app visibility and control AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for 1,000's of enterprise apps or groups of apps. Aruba Secure Core Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as secure boot Integrated wireless intrusion protection offers threat protection and mitigation and eliminates the need for separate RF sensors and security appliances. IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing comprehensive protection against advanced online threats. Encrypted IPsec VPN tunnels securely connect remote users to corporate network resources.

UNIQUE BENEFITS

Dual Radio 802.11ac access point with Multi-User MIMO
- Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients).
Built-in Bluetooth Low-Energy (BLE) radio
- Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.
Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.
Industrial design for harsh indoor and outdoor environments
- Sealed connector interfaces to lock out dust and moisture
Quality of service for unified communication apps
- Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat, and desktop sharing.
Best-in-class RF management
- Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment including channel width, channel selection and transmit power.
Spectrum analysis
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference.
Wireless mesh
- Wireless mesh connections are convenient where Ethernet drops are not available.
Intelligent app visibility and control
- AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for 1,000's of enterprise apps or groups of apps.
Aruba Secure Core
- Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as secure boot
- Integrated wireless intrusion protection offers threat protection and mitigation and eliminates the need for separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing comprehensive protection against advanced online threats.
- Encrypted IPsec VPN tunnels securely connect remote users to corporate network resources.

CHOOSE YOUR OPERATING MODE
As unified APs, the Aruba 370 Series can be deployed with or without a controller and can be readily switched to accommodate changing network needs. Controller mode: When managed by Aruba Mobility Controllers, Aruba 370 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding or, Controllerless (Instant) mode: In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – Instant Network. Other functional modes include: Remote AP (RAP) mode for branch deployments Air monitor (AM) for wireless IDS, rogue detection and containment Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference Secure enterprise mesh Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Unified APs are factory-shipped to any site and configure themselves when powered up.

CHOOSE YOUR OPERATING MODE

As unified APs, the Aruba 370 Series can be deployed with or without a controller and can be readily switched to accommodate changing network needs.
- Controller mode: When managed by Aruba Mobility Controllers, Aruba 370 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding or,
- Controllerless (Instant) mode: In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – Instant Network.
Other functional modes include:
- Remote AP (RAP) mode for branch deployments
- Air monitor (AM) for wireless IDS, rogue detection and containment
- Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
- Secure enterprise mesh
- Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Unified APs are factory-shipped to any site and configure themselves when powered up.

AP-370 SERIES SPECIFICATIONS
AP-374 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Four Nf connectors for external antenna operation 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Two Nf connectors for external antenna operation at 2.4 GHz AP-375 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Internal Omni Antennas 4.6 dBi 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Internal Omni Antennas 4.0 dBi AP-377 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) Internal 80°H x 80°V Directional Antennas 6.3 dBi 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios Internal 80°H x 80°V Directional Antennas 6.4 dBi

AP-370 SERIES SPECIFICATIONS

AP-374
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
  - Four Nf connectors for external antenna operation
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
  - Two Nf connectors for external antenna operation at 2.4 GHz
AP-375
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
  - Internal Omni Antennas 4.6 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
  - Internal Omni Antennas 4.0 dBi
AP-377
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
  - Internal 80°H x 80°V Directional Antennas 6.3 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
  - Internal 80°H x 80°V Directional Antennas 6.4 dBi

WI-FI RADIO SPECIFICATIONS
AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to inpidual 4x4 VHT80 or 2x2 VHT160 client devices 2.4 GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to inpidual 2x2 HT40 client devices Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio Supported frequency bands (country-specific restrictions apply): 2.400 to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz Available channels: Dependent on configured regulatory domain. Dynamic frequency selection (DFS) maximizes the use of available RF spectrum. Supported radio technologies: 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-pision multiplexing (OFDM) Supported modulation types: 802.11b: BPSK, QPSK, CCK 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM Transmit power: Configurable in increments of 0.5 dBm Maximum (conducted) transmit power (limited by local regulatory requirements): 2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2x2) 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4) Note: conducted transmit power levels exclude antenna gain. Maximum EIRP (limited by local regulatory requirements): 2.4 GHz band: 374: 25 + Antenna Gain 375: 29 dBm EIRP 377: 31.4 dBm EIRP 5 GHz band: 374: 28 + Antenna Gain + TxBF Gain 375: 35.6 dBm EIRP 377: 36 dBm EIRP Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks. Maximum ratio combining (MRC) for improved receiver performance. Cyclic delay/shift persity (CDD/CSD) for improved downlink RF performance. Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels. Space-time block coding (STBC) for increased range and improved reception. Low-density parity check (LDPC) for high-efficiency error correction and increased throughput. Transmit beam-forming (TxBF) for increased signal reliability and range. Supported data rates (Mbps): 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15) 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31) 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160) 802.11n high-throughput (HT) support: HT 20/40 802.11ac very high throughput (VHT) support: VHT 20/40/80/160 802.11n/ac packet aggregation: A-MPDU, A-MSDU

WI-FI RADIO SPECIFICATIONS

AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5 GHz:
- Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
- Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to inpidual 4x4 VHT80 or 2x2 VHT160 client devices
2.4 GHz:
- Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to inpidual 2x2 HT40 client devices
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain.
Dynamic frequency selection (DFS) maximizes the use of available RF spectrum.
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-pision multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2x2)
- 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4)
- Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
- 2.4 GHz band:
  - 374: 25 + Antenna Gain
  - 375: 29 dBm EIRP
  - 377: 31.4 dBm EIRP
- 5 GHz band:
  - 374: 28 + Antenna Gain + TxBF Gain
  - 375: 35.6 dBm EIRP
  - 377: 36 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
Maximum ratio combining (MRC) for improved receiver performance.
Cyclic delay/shift persity (CDD/CSD) for improved downlink RF performance.
Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels.
Space-time block coding (STBC) for increased range and improved reception.
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.
Transmit beam-forming (TxBF) for increased signal reliability and range.
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU
