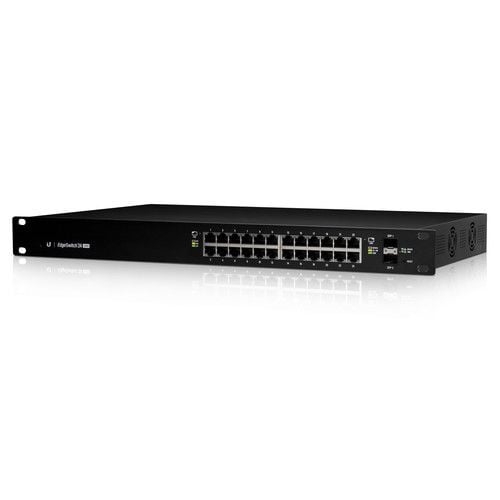

Thiết bị chuyển mạch - Ubiquiti EdgeSwitchTM24 500W Model: ES-24-500W
• (24) Cổng mạng tốc độ 1G
• (2) Cổng quang SFP
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Powerful enterprise switch models
The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Enterprise-class features
The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical fiber backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ support
The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Breakthrough value
The EdgeSwitch provides top price/performance value: a full-featured, enterprise-class switch.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Non-blocking switching capacity: 26 Gbps | Switching capacity: 52 Gbps | Forwarding performance: 38.69 Mpps |
| Capacity | VLANs supported: 255 | ACL rules: 100 | LAG groups: 6 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI |
| Features | Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Status Indicators | Port transmission speed, PoE, link/activity |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 34.2 W | 2 x 1000Base-X SFP |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 500 Watt |
| Miscellaneous | |
|---|---|
| Compliant Standards | IC, FCC, ETSI 300 019 |
| Dimensions & Weight | |
|---|---|
| Width | 19.1 in |
| Depth | 11.2 in |
| Height | 1.7 in |
| Weight | 8.16 lbs |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
