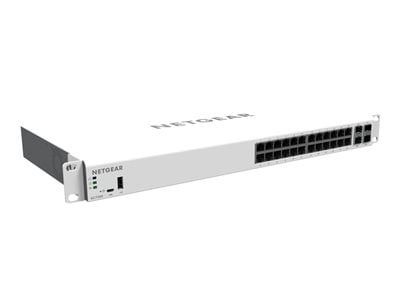

GC728X: Insight Managed 28-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP and 2 SFP+ Fiber Ports
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ
Insight Managed 28-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP and 2 SFP+ Fiber Ports:
. CPU/RAM/Flash: 400 MHz Cortex-A9 Single Core/512MB RAM/8MB SPI + 256 NAND FLASH
. 24 port 100/1000 RJ-45 + 2 1G SFP (dedicated) + 2 1G/10G SFP+ (dedicated)
. Bandwidth: 92 Gbps
. MAC/VLAN/Buffer/Jumbo: 16K/256/1,5MB/Up to 9,216 packet size
. Feature Set: L2+, Static Routes IPv4: 32 & IPv6: 31
. PoE Budget: No
. PSU: Internal 100-240VAC ~ 50-60Hz, 1A Max
. Form Factor: Rackmount, Desktop
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 24 ports - L3 - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink) |
| Performance | Fabric throughput: 92 Gbps | Forwarding performance (64-byte packet size): 68.5 Mpps |
| Capacity | ACL: 100 | VLANs supported: 256 | Priority queues: 8 | IGMP multicast groups: 512 | IPv4 routes (static): 32 | IPv6 routes (static): 31 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Encryption Algorithm | MD5, TLS 1.0, SSL 3.0, PEAP |
| Authentication Method | RADIUS, TACACS+, Extensible Authentication Protocol (EAP) |
| Features | ARP support, IGMP snooping, Syslog support, Stateful Packet Inspection (SPI), DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), LACP support, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), loop prevention, security lock slot (cable lock sold separately), Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, cable test, administrator's password, ICMP Router Discovery Protocol (IRDP), DNS client, 1 fan, guest access, Weighted Round Robin (WRR), loopback detection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor | 1 Cortex-A9: 400 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Power, status, fan, link/activity/speed |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 | 2 x 1000Base-X SFP | 2 x 10GBase-X SFP+ | USB |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 18.5 Watt |
| Miscellaneous | |
|---|---|
| Included Accessories | Rubber feet |
| Rack Mounting Kit | Included |
| MTBF | 1,874,356 hours |
| Compliant Standards | CCC, UL 60950-1 Second Edition, KCC, K60950-1, GB4943.1-2011, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, EN 55024:2010+A1:2015, KN32, KN35, BSMI CNS13438:2006 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localization | Latin America, North America |
| Dimensions & Weight | |
|---|---|
| Width | 17.3 in |
| Depth | 8.8 in |
| Height | 1.7 in |
| Weight | 6.19 lbs |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - replacement - 5 years - response time: next business day | Technical support - 90 days |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% (non-condensing) |
