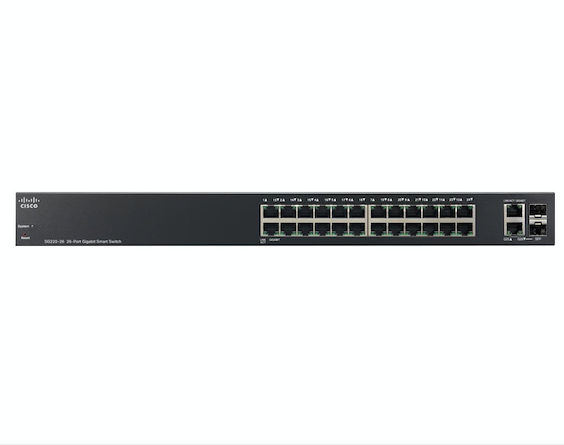

SG220-26P 26-Port Gigabit PoE Smart Switch
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Value
Enjoy the affordability of smart switches while getting the higher levels of security, management, and scalability only found in managed switches.
Enhanced security
The switches offer several security capabilities, including advanced threat defense, access control lists (ACLs), 802.1x, and many others. You can be confident that you have the protection you need.
Easy setup and management
Intuitive browser - based tools simplify setup and configuration. Advanced command line interface (CLI) management options are also available.
Power over Ethernet (PoE)
PoE and PoE+ streamline the deployment for wireless access points, IP telephony, and video surveillance by allowing power and data to run over a single network cable
Product Specifications
General | |
---|---|
Device Type | Switch - 26 ports - managed |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE+) + 20 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 180 W |
Performance | Forwarding performance (64-byte packet size): 38.69 Mpps | Switching capacity: 52 Gbps |
MAC Address Table Size | 8192 entries |
Jumbo Frame Support | 9216 bytes |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI |
Authentication Method | RADIUS, TACACS+ |
Features | Flow control, layer 2 switching, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, reset button, LLDP support, DHCP relay, DHCP client, Energy Efficient Ethernet, Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Type of Service (ToS), 2 fans, 4.1MB packet buffer |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
RAM | 128 MB |
Flash Memory | 32 MB |
Status Indicators | Port transmission speed, system, PoE, link/activity |
Expansion / Connectivity | |
---|---|
Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W | 20 x 1000Base-T RJ-45 PoE - 15.4 W | 2 x 1000Base-T RJ-45 | 2 x SFP |
Power | |
---|---|
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
---|---|
Cables Included | 1 x console cable |
Rack Mounting Kit | Included |
MTBF | 343,684 hours |
Compliant Standards | C-Tick, UL 60950, FCC CFR47 Part 15, CSA 22.2 |
Localization | North America |
Dimensions & Weight | |
---|---|
Width | 17.3 in |
Depth | 9.8 in |
Height | 1.7 in |
Weight | 8.16 lbs |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty - replacement - lifetime | Technical support - web support - 1 year | Technical support - phone consulting - 1 year | Limited warranty - power supply and fans - 1 year | Limited warranty - software - 90 days |
Environmental Parameters | |
---|---|
Min Operating Temperature | 32 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
