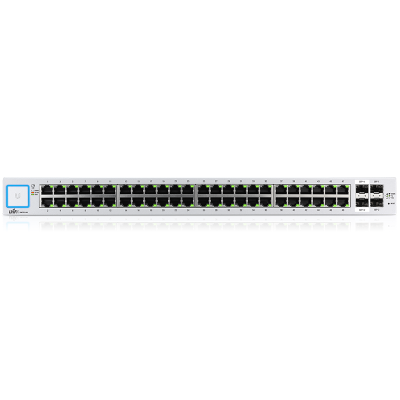

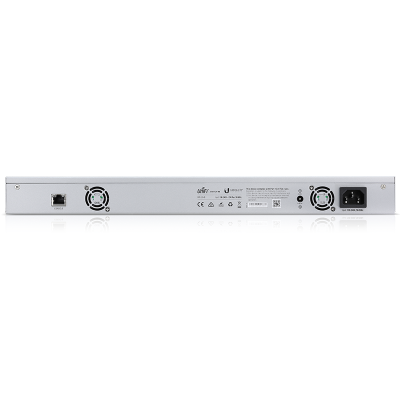

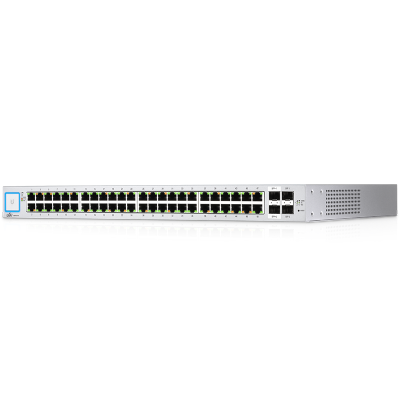

Ubiquiti UniFi Switch US-48 - Switch - managed - 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP - rack-mountable
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Multi-site management
A single instance of the UniFi controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Optical fiber backhaul
The SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Non-blocking throughput
For its total, non-blocking throughput, the 48-port model supports up to 70 Gbps.
Switching capacity
The UniFi switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Seamless integration
The UniFi switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations - all controlled from a single interface.
Product Specifications
| General | |
|---|---|
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP |
| Performance | Non-blocking switching capacity: 70 Gbps | Switching capacity: 140 Gbps | Forwarding performance: 104.16 Mpps |
| Remote Management Protocol | HTTP |
| Status Indicators | Port transmission speed, PoE, link/activity |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 48 x 1000Base-T RJ-45 | 2 x 1000Base-X SFP | 2 x 10GBase-X SFP+ | 1 x console RJ-45 |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 56 Watt |
| Miscellaneous | |
|---|---|
| Compliant Standards | IC, FCC, WEEE |
| Dimensions & Weight | |
|---|---|
| Width | 17.4 in |
| Depth | 11.3 in |
| Height | 1.7 in |
| Weight | 7.85 lbs |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
