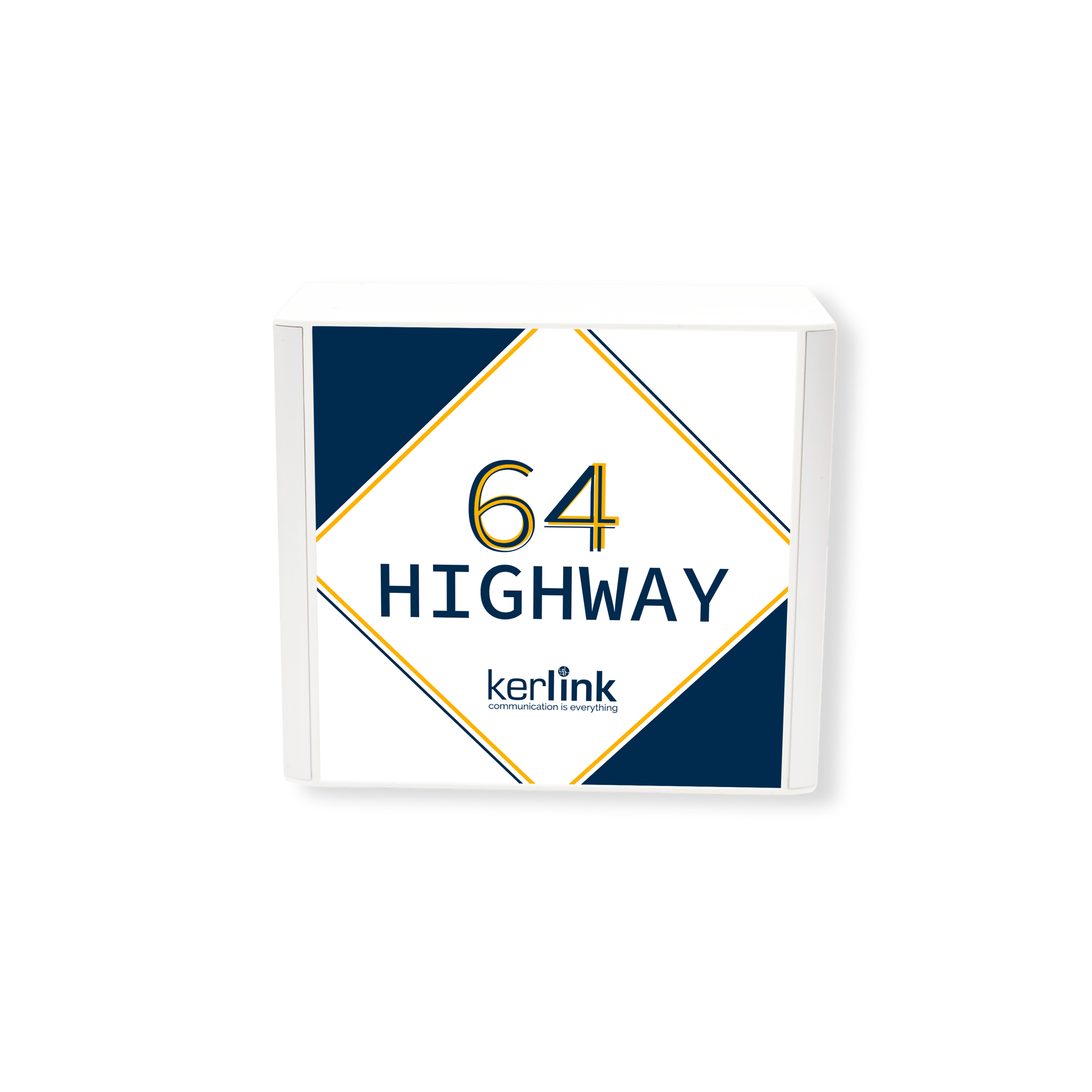

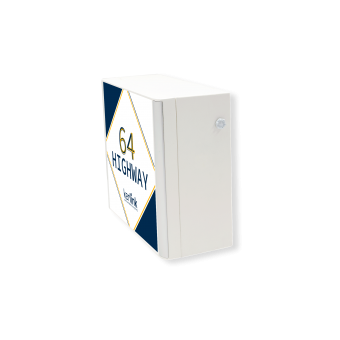

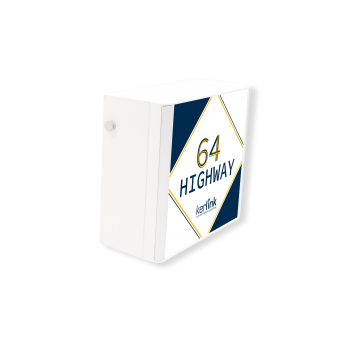

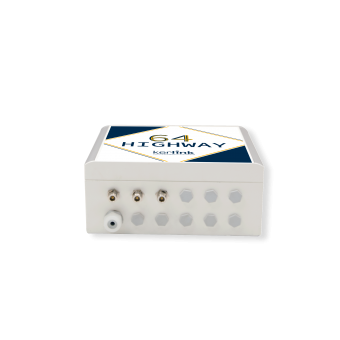

Wirnet iBTS 64 Highway

Based on the iBTS architecture and components widely deployed worldwide, it offers a Full-Duplex carrier grade LoRaWAN solution that meets Ultra-secure HW and SW requirements.

Its 64 Rx channels (multi Spreading Factor) + 8 Rx channels (mono Spreading Factor) allow to connect the maximum of your LoRa sensors:

This LoRaWAN gateway is fully compatible with LoRa® native sensors geolocation  and can be remotely monitored and easily managed with Kerlink network operations solution : the Wanesy™ Management Center.

Strengths

CPU & Memory:

• Powerful ARM Cortex A9 core processor (up to 800MHz) with hardware watchdog and optimized power consumption management
• DDRAM 256 MB / 8 GB eMMC

Operating System:

• LoRa® Packet Forwarder, Linux OS, embedded base station controller (Wanesy Management Center remote management)
• Software packages and development tools included

Networking:

• Firewalling, routing, networking and tunneling features

Security:

• Secure boot, trust zone, firewall, software auto-recovery and secure firmware remote upgrade.

GPS:

• Integrated high sensitivity GNSS module
• GPS L1C/A, GLONASS L1OF, BeiDou B1, QZSS L1C/A, SBAS L1C/A and Galileo E1B/C-ready

Mechanical:

Casing:

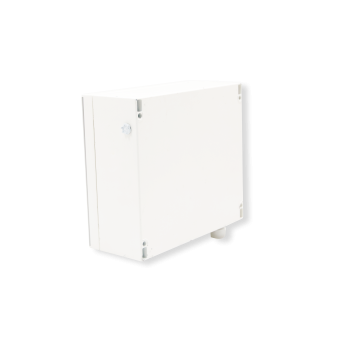

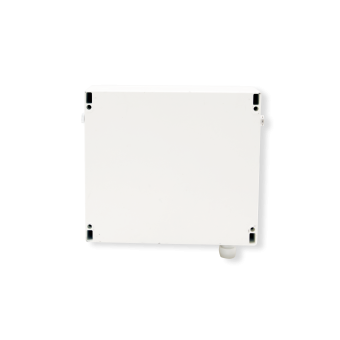

• Robust and waterproof aluminium casing : 9Kg (including mounting kit)

Power:

• PowerOverEthernet supply: 48V class 4, 60W
• DC power supply (ex: solar panel use): 11V to 56V DC
• Power control: ignition detection, software OFF switching, ON/OFF button
• Back-up battery

Communication:

• LoRa® RF module (64 + 8 channels)
  • 64ch RX (125 kHz, multi Spreading Factor) + 8 ch RX (500kHz, mono Spreading Factor) to get 72ch. RX + 4ch TX (without antenna persity)
  • (32ch + 32ch) RX (125 kHz, multi Spreading Factor), + (4ch + 4ch) TX (with antenna persity)

• Bidirectional communications, range of 15+ km in sub-urban areas, and of 2 km in urban areas.
• Supported ISM bands: ISM 915 band : 902-915 MHz (Rx), 923-928 MHz (Tx)
• Backhaul connectivity over GPRS/EDGE/HSPA/LTE or Ethernet

Environment and sensors:

• Large operating range, high humidity tolerance
• Certified for Ingress protection / Impact resistance / UV resistance / Flammability rating
• Embedded sensors for remote secure monitoring and management using Wanesy Management Center .

Geolocation:

• Ready for LoRa® geolocation combining RSSI and Time Difference on Arrival (TDoA).
• Available for outdoor and indoor environments
• Compatible with Wanesy Geolocation

Remote management:

• Remote alarm notification, firmware upgrade, file transfer, configuration, radio monitoring and statistics (Wanesy Management Center)

Certification:

• FCC / UL / RSS/ CAN-CSA certified.

Compatible accessories:

• LoRa Antennas
• Antennas mounting kit
• Surge protections
