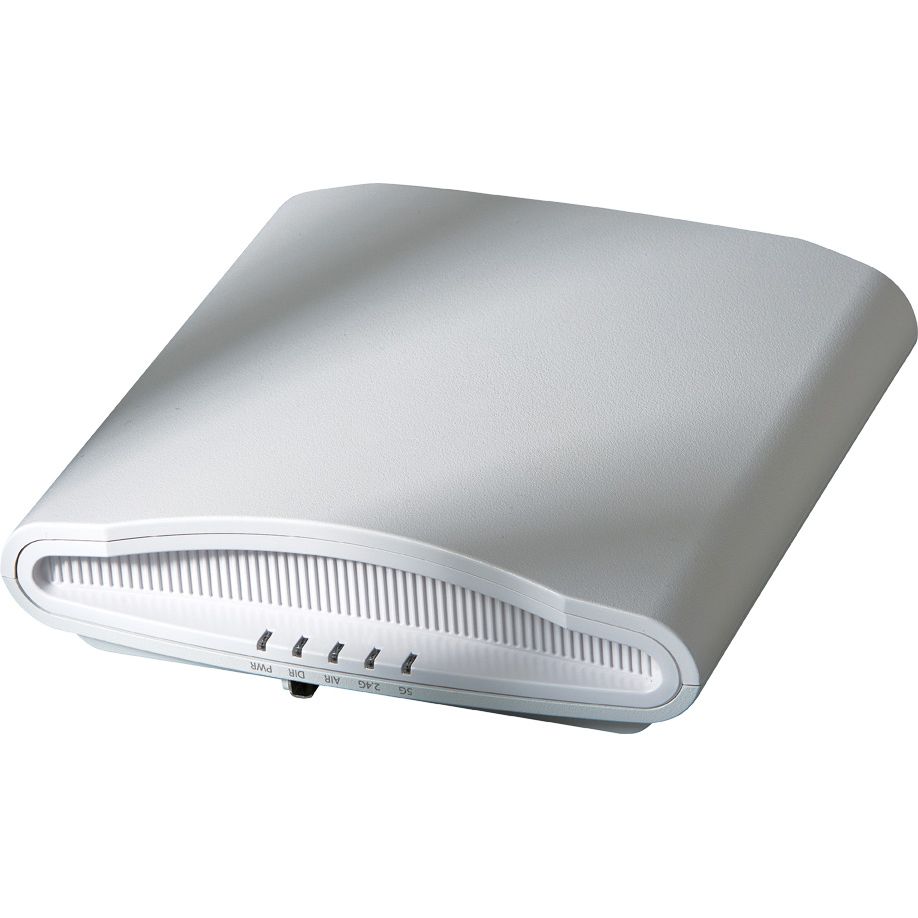

ZoneFlex R710 802.11AC indoor AP, supporting 2.4GHz and 5GHz dual-band, 4X4:4, MU-MIMO, 2x10/100/1000Mbps Ethernet port, 802.3af/at POE, excluding power adapter and POE module
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Features and Benefits
With more devices, more users, and more bandwidth-hungry applications, busy indoor spaces can make challenging wireless environments. If you need more from your Wi-Fi, step up to the RUCKUS R710 indoor access point.
The R710 delivers industry-leading performance and reliability in the most demanding high-density locations. With four streams of MU-MIMO connectivity, it can simultaneously transmit to multiple Wave 2 clients in the widest available channels, drastically improving RF efficiency while providing the highest available throughput for Wi-Fi clients. The perfect choice for streaming multimedia applications, it delivers picture-perfect HD-quality IP video and crystal clear voice services.
Give your users a consistently great wireless experience with the best enterprise Wi-Fi in the business.
General Specifications
| Antenna Gain | Up to 3 dBi |
| Antenna Patterns, per band | 4000+ |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 512 |
| Controller Support | SmartZone | Standalone | Unleashed | ZoneDirector |
| Ethernet Ports | 2 x 1GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 600 Mb/s |
| PHY Rate at 5 GHz, maximum | 1733 Mb/s |
| Radio Chains:Streams | 4x4:4 SU-MIMO 4x4:3 MU-MIMO |
| Rx Sensitivity at 2.4 GHz | -104 dBm |
| Rx Sensitivity at 5 GHz | -104 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Venue Type | Hospitality |
| Venue Sub-Type | Lobby/Common Spaces |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac Wave 2 |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11n |
| Wi-Fi Interface Standard at 5 GHz | 802.11ac |
Environmental Specifications
| Operating Temperature | -4 °C to +60 °C (-14 °F to +140 °F) |
Specifications:
| ||||
|---|---|---|---|---|
|  |  |  |  |
Feature/Description | High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul | High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul | High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul | High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
Maximum PHY rate | 2400 Mbps (5GHz) 1148 Mbps (2.4GHz) | 4800 Mbps (5GHz) 1148 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ax (2.4 GHz, 5GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) |
Concurrent users | 1024 | 1024 | 512 | 512 |
Radio chains:streams |
4x4:4 |
8x8:8 |
4x4:4 | 4x4:4 SU-MIMO 4x4:3 MU-MIMO |
Antenna patterns (per band) | 4,000+ | 4,000+ | 4,000+ | 4,000+ |
Antenna gain | Up to 3dbi | Up to 2dBi | Up to 3dBi | Up to 3dBi |
PD-MRC | ||||
Rx sensitivity (2.4/5GHz) | -102dBm | -103/-101dBm | -104dBm | -104dBm |
ChannelFly | ||||
SmartMesh | ||||
USB (IoT Ready) | ||||
Ethernet ports | 1x1GbE 1x2.5GbE | 1x 1/2.5/5 Gbps 1x 10/100/1000 Mbps | 1 x 1GbE and 1 x 2.5GbE |
2 x 1GbE |
Integrated BLE/ZigBee | — | — | ||
WLAN Control and Management | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
