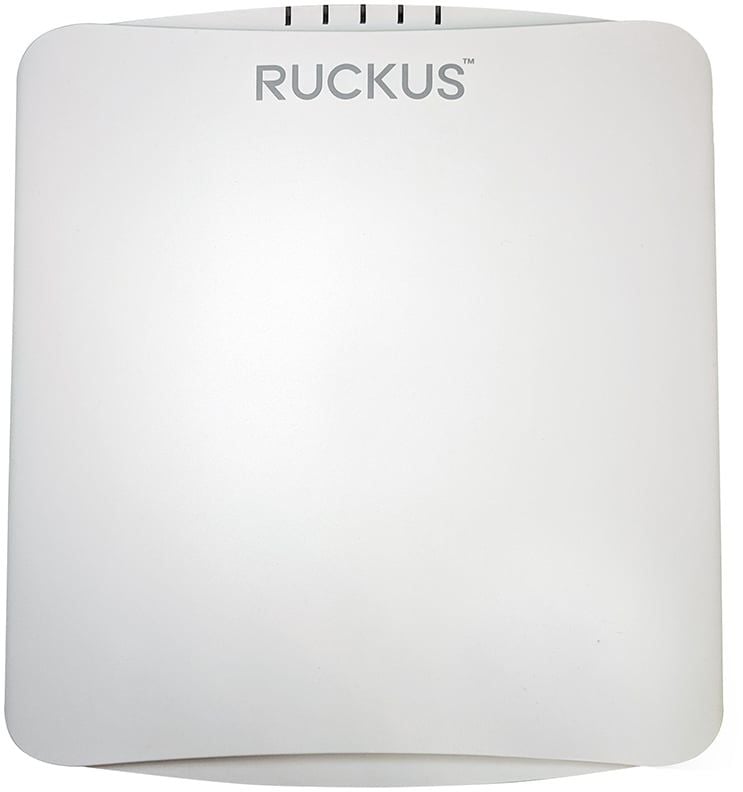

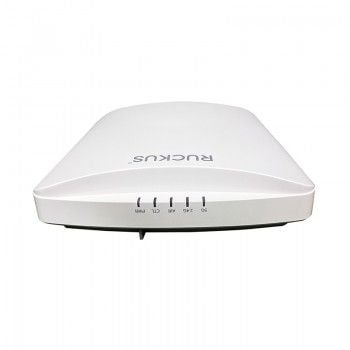

R750 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4x4:4 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Features and Benefits
The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with BLE, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
Specifications
General Specifications
| Antenna Gain | Up to 3 dBi |
| Antenna Patterns, per band | 4000+ |
| BeamFlex | Yes |
| ChannelFly | Yes |
| Concurrent Users | 1024 |
| Controller Support | SmartZone | Standalone | Unleashed | ZoneDirector |

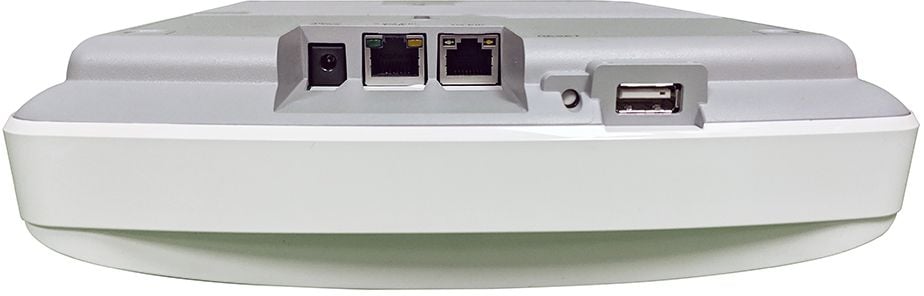

| Ethernet Ports | 1x1GbE | 1x2.5GbE |
| IoT Ready | Yes |
| PD-MRC | Yes |
| PHY Rate at 2.4 GHz, maximum | 1148 Mb/s |
| PHY Rate at 5 GHz, maximum | 2400 Mb/s |
| Radio Chains:Streams | 4x4:4 |
| Rx Sensitivity at 2.4 GHz | -102 dBm |
| Rx Sensitivity at 5 GHz | -102 dBm |
| SmartMesh | Yes |
| USB | USB 2.0 |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Interface Standard at 2.4 GHz | 802.11ax |
| Wi-Fi Interface Standard at 5 GHz | 802.11ax |
Environmental Specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
Specifications:
| ||||
|---|---|---|---|---|
|  |  |  |  |
Feature/Description | High-end 802.11ax 4x4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul | High-end 802.11ax 8x8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul | High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul | High-end 802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
Maximum PHY rate | 2400 Mbps (5GHz) 1148 Mbps (2.4GHz) | 4800 Mbps (5GHz) 1148 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) | 1733 Mbps (5GHz) 600 Mbps (2.4GHz) |
Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
802.11ax (2.4 GHz, 5GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) | 802.11ac (5GHz) 802.11n (2.4GHz) |
Concurrent users | 1024 | 1024 | 512 | 512 |
Radio chains:streams |
4x4:4 |
8x8:8 |
4x4:4 | 4x4:4 SU-MIMO 4x4:3 MU-MIMO |
Antenna patterns (per band) | 4,000+ | 4,000+ | 4,000+ | 4,000+ |
Antenna gain | Up to 3dbi | Up to 2dBi | Up to 3dBi | Up to 3dBi |
PD-MRC | ||||
Rx sensitivity (2.4/5GHz) | -102dBm | -103/-101dBm | -104dBm | -104dBm |
ChannelFly | ||||
SmartMesh | ||||
USB (IoT Ready) | ||||
Ethernet ports | 1x1GbE 1x2.5GbE | 1x 1/2.5/5 Gbps 1x 10/100/1000 Mbps | 1 x 1GbE and 1 x 2.5GbE |
2 x 1GbE |
Integrated BLE/ZigBee | — | — | ||
WLAN Control and Management | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud | · ZoneDirector · SmartZone · Unleashed · RUCKUS Cloud |
