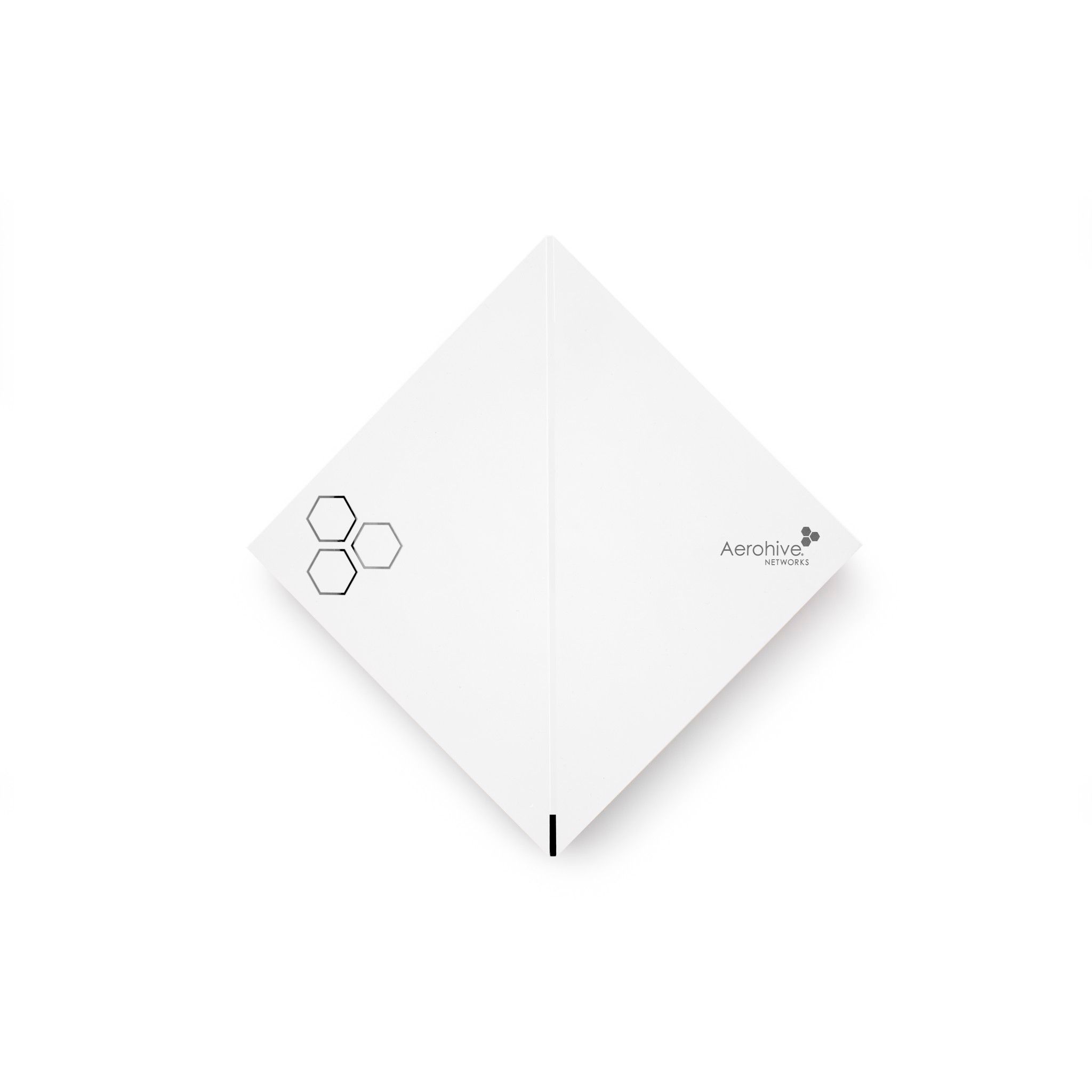

AH-AP-250-AC-W

Thương hiệu: Extreme Networks
Loại: Aerohive Indoor AP
Giá: (chưa bao gồm VAT)
Giá so sánh: 16,038,000₫

AP250 Indoor plenum rated AP 2 radio 3x33 WiFi 5 MU-MIMO 2 GE Ethernet ports  configurable regulatory domain without power supply (Internal Antenna only). Includes ExtremeCloud IQ (formerly HiveManager)

AP 250
Số lượng

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

Overview:

AP250 features 3x3:3 MU-MIMO, providing full 802.11ac technology performance with data rates up to 2.6 Gbps per access point using existing 802.3af PoE infrastructure. Software configurable radio allows IT managers to enable dual 5 GHz 802.11ac performance on both radios to provide the best of coverage and capacity Wi-Fi design and maximize ROI. Built-in BLE (Bluetooth Low Energy) radio enables proximity, indoor location tracking, and other location-based mobile engagement services.

Highlights

  • Software selectable radio allows either two 5 GHz radios (for high density-high capacity deployments) or concurrent 2.4 GHz and 5 GHz radios
  • Full 3x3:3 Wave 2 802.11ac MU-MIMO and dual 5 GHz performance
  • Built-in BLE for iBeacon and other beacon technologies
  • IoT readiness with USB port for other wireless technologies to connect seamlessly

AP250 is an excellent choice to provide instant adaption to ever-changing capacity needs. AP250 features dual radio, 3x3:3 MU MIMO, providing full 802.11ac technology performance with data rates up to 2.6 Gbps per access point using existing 802.3af PoE infrastructure.

While AP250 inherits the signature elements of Aerohive access points such as the powerful HiveOS and innovative distributed Cooperative Control architecture, it also includes new features such as built-in BLE and software-defined radio. Built-in BLE (Bluetooth Low-Energy) radio enables proximity, indoor location tracking and other location-based mobile engagement services. Software defined radio allows IT managers to enable 802.11ac performance on both radios to provide the best of coverage and capacity

AP250 is a key component of the Aerohive Connect solution. Connect provides cloud-managed connectivity built on Aerohive’s industry-first cooperative control Wi-Fi focused on optimizing speed and resilience. Connect is centrally managed from the cloud, allowing for simple, fast, and powerful management.

Specifications:

Specifications
Radio Specifications—802.11a
  • 5.150–5.850 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11b
  • 2.4–2.5 GHz Operating Frequency
  • Direct-Sequence Spread-Spectrum (DSSS) Modulation
  • Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
Radio Specifications—802.11g
  • 2.4–2.5 GHz Operating Frequency
  • Orthogonal Frequency Division Multiplexing (OFDM) Modulation
  • 20 dBm (100 mW) Transmit Power
  • Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
Radio Specifications—802.11n
  • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
  • 802.11n Modulation
  • Rates (Mbps): MCS0–MCS23 (6.5Mbps - 450Mbps)
  • 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
  • HT40 High-Throughput (HT) Support for 5 GHz
  • A-MPDU and A-MSDU Frame Aggregation
Radio Specifications—802.11ac
  • 5.150–5.850 GHz Operating Frequency
  • 802.11ac Modulation (256-QAM)
  • Rates (Mbps): MCS0–MCS9 (6.5Mbps - 1300Mbps), NSS = 1-3
  • 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
  • VHT20/VHT40/VHT80 support
Included Mounting Options
  • Wall Mount
  • Ceiling Tile flush 15/16” and Wall Mount locking accessory included with AP
Mounting
  • Desktop
  • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
  • Ceiling Tile flush 3/8”, 9/16” sold as an accessory
  • Suspend Mount sold as an accessory
  • Plenum Mount sold as an accessory
  • Silhouette and Interlude sold as an accessory
Antennas
  • 6 + 2 internal Wi-Fi antennas for spatial and polarization persity
  • 1x BLE internal antenna
Interfaces
  • Two Autosensing 10/100/1000 Base-T Ethernet ports. PoE/PoE+ capability on one of the ports
  • RJ-45 console port
  • Standard USB port
Physical
  • WxDxH: 7.25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm)[plus .25”, mounting hardware – 2.12” (5.4 cm) H total ]
  • Weight: 1.8 lb ( 0.81 kg)
Environmental
  • Operating: 0 to +40°C, Storage: -40 to +70°C
  • Humidity: 95%
Environmental Compliance
  • UL2043
Power Specifications
  • IEEE 802.3af PoE Power: Full 3x3:3 802.11ac MU-MIMO performance, BLE and Dual 5 GHz. No USB port, no 2nd Ethernet port.
  • IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port).
Power Options
  • Power Draw: Typical PoE 11.75W, Max PoE 16.07W
Certifications
  • WPA/WPA2
  • Voice-Enterprise
