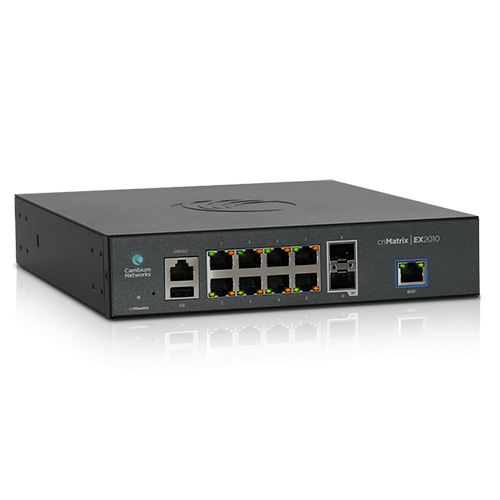

CnMatrix EX2010

Thương hiệu: Cambium Networks
Loại: Cambium Switch
Giá: Liên hệ0₫ (chưa bao gồm VAT)

CnMatrix EX2010 8 1G and 2 SFP

CnMatrix EX2010

Văn Phòng Công Ty

MIỄN PHÍ VẬN CHUYỂN
THANH TOÁN ĐẢM BẢO
HỖ TRỢ 24/7
HOÀN TRẢ MIỄN PHÍ

Overview

IT teams, MSPs and ISPs need to rapidly provide an optimal network experience for users and devices. Network operators are seeking simplicity, flexibility and automation to improve performance. Cloud Networking solutions with cnPilot™ Wi-Fi, cnMatrix™ switching, and cnMaestro™ cloud management from Cambium Networks deliver an optimal client experience while maintaining robust security and reducing cost.

A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution. The cnMatrix™ platform of switches provides:

  • Easy and simple free cloud management with cnMaestro
  • Zero touch deployment of switches makes deployment easy
  • Zero touch policy based configuration enables automation, reduces errors and network downtime
  • Device profiling, automatic port configuration and network segmentation improves security posture of the network
  • Wireless Aware: Together with Cambium Networks cnPilot Wi-Fi solution, enables a simple, easy-to-use cloud managed Unified Wired-Wireless access solution
  • Affordable, high quality and enterprise grade Layer 2, Layer 3 feature set

The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 – 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 - 1Gbps (SFP) uplink ports on the 10 port models.

cnMatrix EX2010 Specifications

Features

Throughput

20 Gbps

Non-Blocking



PoE enabled ports

n/a

PoE power budget units (watts)

n/a

10/100/1000 ports

8

Uplink ports

2 SFP

Serial console



USB



OOB ports



Rack mount kit

Optional

Internal fans

Fanless

Maximum routes (Static)

64

Dynamic routing

512

LACP/trunking

8 LAGs/8 links per 9216

QoS priority queues

8

Maximum IGMP multicast groups

256

Max PVRST

32

Cambium Auto Edge

Yes

MTBF (hours)

806,354.10

Power budget

n/a

Power supply

AC/Internal

Weight

1.6 kg (3.5375 lb)

Dimensions

21 x 4.4 x 25 cm
(8.26 x 1.75 x 9.85 in)

LEDs per port

Link/activity Poe

Rack mountable

Yes 1U

Temperature ranges

-0°C to +50°C (+32°F to +122°F)

Operating humidity

+55° at 95% RH

Storage temperature

-40°C to +70°C (-40°F to +158°F)

cnMatrix All Models

Quality of Service

ACL mapping and marking of ToS/DSCP (COS)
ACL mapping to priority queue
Honoring DSCP and 802.1p(CoS)
Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP
ACL mapping marking of 802.1p
DiffServ support
Traffic shaping/metering

Traffic Management

ACL-based inbound rate limiting policies
Inbound rate limiting per port
Broadcast, multicast and unknown unicast rate limiting
Outbound rate limiting per port/queue

Security

802.1x authentication
DHCP snooping
Neighbor Discovery (ND) inspection
Radius/Tacacs/Tacacs+
Secure shell
MAC authentication
RADIUS authentication/authorization
Authentication, Authorization, and Accounting (AAA)
Secure copy (SCP)
Local username/password

Management

cnMaestro (cloud management)
DHCP autoconfiguration
Embedded DHCP server
Industry standard Command Line Interface (CLI)
Embedded web management (HTTP/HTTPS)
Out of band Ethernet management client/server
SSH /SSH v2
SNMP v1v2
System Network Time Protocol (SNTP)
Auto Edge / Auto Attach
Display log messages multiple terminals
Telnet client/server

Layer 2 Feature Set

802.1s multiple spanning tree
VLAN, Port, Protocol, 802.1q
Auto MDI/MDIX
IGMP Snooping V1v2
Per VLAN STP (PVST/PVRST)
IGMP Proxy
Flow Control per port/per queue
Broadcast/Multicast/Unlearned Unicast (Storm Control)
Ping/TraceRoute/ICMPv6
Bpdu guard, Root Gard
LLDP/LLDP Med
Port Mirroring: port based, ACL based, VLAN based
Link Aggregation Groups (Static/LACP)
Jumbo frame support
BPDU filtering
DoS Protection (Port, CPU)
