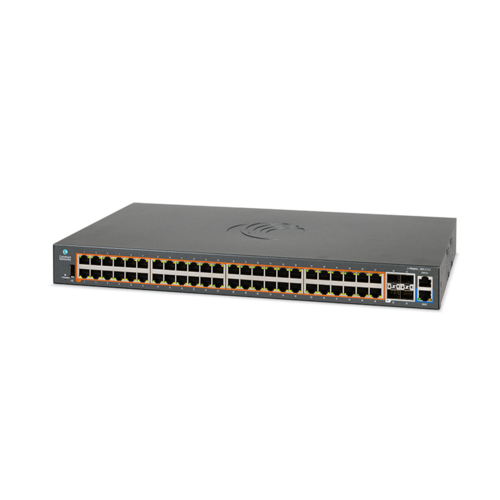

cnMatrix EX2052

Thương hiệu: Cambium Networks

Loại: Cambium Switch

Giá: Liên hệ0₫ (chưa bao gồm VAT)

CnMatrix EX2052 48 1G and 4 SFP+

48 10/100/1000 ports

No PoE

4 SFP+ Uplinks

Free Could Manager

3 Years Warranty

Văn Phòng Công Ty

HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM

0907771575

(Xem bản đồ)

HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM

0987229729

(Xem bản đồ)

VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội

0987229729

(Xem bản đồ)

MIỄN PHÍ VẬN CHUYỂN

THANH TOÁN ĐẢM BẢO

HỖ TRỢ 24/7

HOÀN TRẢ MIỄN PHÍ

Overview

IT teams, MSPs and ISPs need to rapidly provide an optimal network experience for users and devices. Network operators are seeking simplicity, flexibility and automation to improve performance. Cloud Networking solutions with cnPilot™ Wi-Fi, cnMatrix™ switching, and cnMaestro™ cloud management from Cambium Networks deliver an optimal client experience while maintaining robust security and reducing cost.

A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution. The cnMatrix™ platform of switches provides:

Easy and simple free cloud management with cnMaestro
Zero touch deployment of switches makes deployment easy
Zero touch policy based configuration enables automation, reduces errors and network downtime
Device profiling, automatic port configuration and network segmentation improves security posture of the network
Wireless Aware: Together with Cambium Networks cnPilot Wi-Fi solution, enables a simple, easy-to-use cloud managed Unified Wired-Wireless access solution
Affordable, high quality and enterprise grade Layer 2, Layer 3 feature set

The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 – 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 - 1Gbps (SFP) uplink ports on the 10 port models.

cnMatrix EX2052 Specifications
Features
Throughput	176 Gbps
Non-Blocking Throughput
Forwarding Rate in Mpps (64 Byte Packets)	120
10/100/1000 ports	48
Uplink ports	4 SFP+
PoE+ Enabled Ports (802.3af/at)	N/A
Serial console
USB
Out-of-Band Management Port
Rack mount kit
Internal fans	2
Reset Button	Yes
MAC Address Table Size	16K
Flash Storage	128MB
DRAM	512MB
VLANs	4K
Port Based VLANs	4K
LACP/Trunking	8 LAGs / 8 links per LAG
QoS Priority Queues	8
PVRST	32
Ingress/Egress ACL	128
Static Arp Entries	512
ARP Entries	512
Static Routes	64
Dynamic Routing	512
IGMP Multicast Groups	256
Policy Based Automation	Yes
Power Supply	100-240VAC
Max Switch Power (with Traffic)	38.88W
MTBF (Hours)	393,648
Weight	3.6kg (7.93lb)
Dimensions	44 x 4.4 x 25 cm (17.3 x 1.75 x 9.85 in)
CPU Speed	800Mhz
LEDs Per Port	Link/Activity
PoE+ Power Budget	N/A
PoE+ Voltage	N/A
Max PoE+ Power Per Port	N/A
Rack Mountable	Yes 1U
Acoustic Noise dBA Per Switch (Ambient Temperature)	40.9dB - < 33°C 44.2dB - 30°C-40°C 47.3dB - >43°C
Temperature ranges	-0°C to +50°C (+32°F to +122°F)
Operating humidity	+55° at 95% RH
Storage temperature	-40°C to +70°C (-40°F to +158°F)
cnMatrix All Models
Quality of Service	ACL mapping and marking of ToS/DSCP (COS) ACL mapping to priority queue Honoring DSCP and 802.1p(CoS) Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP ACL mapping marking of 802.1p DiffServ support Traffic shaping/metering
Traffic Management	ACL-based inbound rate limiting policies Inbound rate limiting per port Broadcast, multicast and unknown unicast rate limiting Outbound rate limiting per port/queue
Security	802.1x authentication DHCP snooping Radius/Tacacs/Tacacs+ Secure shell Local username/password MAC authentication RADIUS authentication/authorization Authentication, Authorization, and Accounting (AAA) Secure copy (SCP)
Management	cnMaestro (cloud management) DHCP autoconfiguration Embedded DHCP server Industry standard Command Line Interface (CLI) Embedded web management (HTTP/HTTPS) Out of band Ethernet management client/server SSH /SSH v2 SNMP v1v2 System Network Time Protocol (SNTP) Auto Edge / Auto Attach Display log messages multiple terminals Telnet client/server
Layer 2 Feature Set	802.1s multiple spanning tree VLAN, Port, Protocol, 802.1q 802.1d 802.1x authentication Auto MDI/MDIX Bpdu Guard, Root Guard IGMP Snooping v1/v2/v3, Fast Leave LLDP/LLDP Med IGMP Proxy Static MAC Flow Control per port Per VLAN STP (PVST/PVRST) Port Mirroring: port based, ACL based, VLAN based Port Isolation/Private VLAN Edge Link Aggregation Groups (Static/LACP) Rate Limiting/Storm Control Jumbo frame (9k) DHCP Snooping BPDU filtering Broadcast/Multicast/Unlearned Unicast (Storm Control) DoS Protection Ping/TraceRoute/ICMPv6
Layer 3 Feature Set	Inter Vlan Routing Static ARPs Static Routes DHCP Relay RIPv1/v2 OSPFv2 Route Redistribution
Management	cnMaestro (cloud management) Industry standard Command Line Interface (CLI) DHCP Client Embedded web management (HTTP/HTTPS) Embedded DHCP server USB file management and storage Out of Band Ethernet Management SSH /SSH v2 SNMP v1/v2/v3 DHCP relay Simple Network Time Protocol (SNTP) Local/remote system logging Policy Based Automation Display log messages multiple terminals TFTP/SFTP Telnet client/server IPv6 management Password management Autoinstall support for firmware images and config files
Core Switching Features	IEEE 802.1AB—Link Layer Discovery Protocol (LLDP) IEEE 802.1D—Spanning tree compatibility IEEE 802.1p—Ethernet priority with user provisioning and mapping IEEE 802.1s—Multiple spanning tree compatibility IEEE 802.1Q—Virtual LANs with port-based VLANs IEEE 802.1X—Port-based authentication
VLAN Support	IEEE 802.1W—Rapid spanning tree compatibility IEEE 802.3—10BASE-T IEEE 802.3u—100BASE-T IEEE 802.3ab—1000BASE-T Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol IEEE 802.3ac—VLAN tagging IEEE 802.3ad—Link aggregation IEEE 802.3x —Flow control Static Routing
IEEE 802.1Q-2003	RFC 4541—Considerations for Internet Group Management Protocol (IGMP) Snooping Switches ANSI/TIA-1057—LLDP-Media Endpoint Discovery (MED)
Advanced Layer-2 Features	Authentication, Authorization, and Accounting (AAA) Broadcast/Multicast/Unknown unicast storm recovery DHCP Snooping IGMP Snooping Querier Independent VLAN Learning (IVL) support Jumbo Ethernet frame support Port MAC locking Port mirroring Protected ports Static MAC filtering
Layer-3 Features	RFC 2131 – DHCP Relay RFC 2328 – OSPF Version 2 RFC 2453 – RIP Version 2
