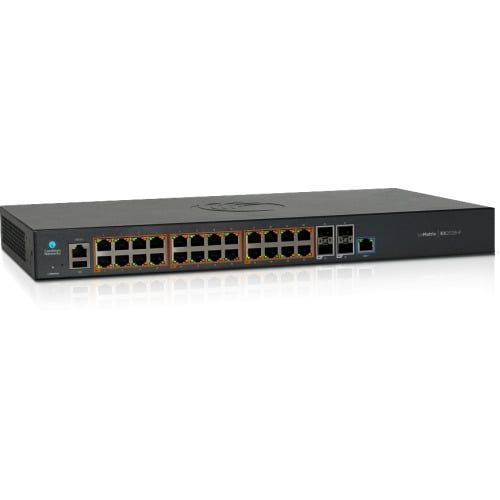

CnMatrix EX2028 24 1G and 4 SFP+
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Overview
IT teams, MSPs and ISPs need to rapidly provide an optimal network experience for users and devices. Network operators are seeking simplicity, flexibility and automation to improve performance. Cloud Networking solutions with cnPilot™ Wi-Fi, cnMatrix™ switching, and cnMaestro™ cloud management from Cambium Networks deliver an optimal client experience while maintaining robust security and reducing cost.
A proven leader in providing global communications solutions, Cambium Networks simplifies network operations. Our Cloud Managed Intelligent Edge Enterprise Access Solution makes the network resilient, easy to operate, high performance, and agile; providing cost effective wired/wireless connectivity for network operators. The entire purpose-built end-to-end network is managed from a “bird’s eye view” by the free cnMaestro management system.
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution. The cnMatrix™ platform of switches provides:
- Easy and simple free cloud management with cnMaestro
- Zero touch deployment of switches makes deployment easy
- Zero touch policy based configuration enables automation, reduces errors and network downtime
- Device profiling, automatic port configuration and network segmentation improves security posture of the network
- Wireless Aware: Together with Cambium Networks cnPilot Wi-Fi solution, enables a simple, easy-to-use cloud managed Unified Wired-Wireless access solution
- Affordable, high quality and enterprise grade Layer 2, Layer 3 feature set
The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 – 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 - 1Gbps (SFP) uplink ports on the 10 port models.
cnMatrix EX2028 Specifications | |
Features | |
Throughput | 128 Gbps |
Non-Blocking | |
PoE enabled ports | n/a |
PoE power budget units (watts) | n/a |
10/100/1000 ports | 24 |
Uplink ports | 4 SFP+ |
Serial console | |
USB | |
OOB ports | |
Rack mount kit | |
Internal fans | Fanless |
Maximum routes (Static) | 64 |
Dynamic routing | 512 |
LACP/trunking | 8 LAGs/8 links per 9216 |
QoS priority queues | 8 |
Maximum IGMP multicast groups | 256 |
Max PVRST | 32 |
Cambium Auto Edge | Yes |
MTBF (hours) | 432,283.26 |
Power budget | n/a |
Power supply | AC/Internal |
Weight | 2.77 kg (6.1 lb) |
Dimensions | 44 x 4.4 x 20.9 cm |
LEDs per port | Link/activity |
Rack mountable | Yes 1U |
Temperature ranges | -0°C to +50°C (+32°F to +122°F) |
Operating humidity | +55° at 95% RH |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
cnMatrix All Models | |
Quality of Service | ACL mapping and marking of ToS/DSCP (COS) |
Traffic Management | ACL-based inbound rate limiting policies |
Security | 802.1x authentication |
Management | cnMaestro (cloud management) |
Layer 2 Feature Set | 802.1s multiple spanning tree |
