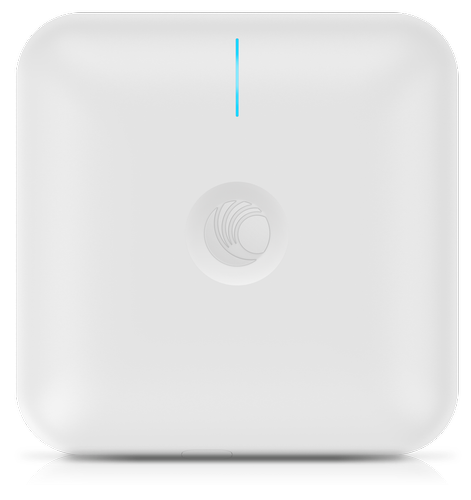

Cambium Networks cnPilot E410 Indoor
Gigabit 802.11ac Wave 2 Dual Band 2x2 Indoor Access Point
Văn Phòng Công Ty
-
HO CHI MINH Văn Phòng Chính: 134/8 Hoàng Hoa Thám, Phường 12, Quận Tân Bình. HCM
-
HO CHI MINH Kho Quận 7: 14 Đường số 1, Phường Bình Thuận, Quận 7, HCM
-
VĂN PHÒNG HÀ NỘI: 18/521 Nguyễn Trãi.Thanh Xuân Nam.Thanh xuân .Hà nội
Overview
The plenum-rated e410 with 2×2 MIMO packs a max transmit power of 25 dBm and is DFS certified to utilize additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage.
The compact low profile 802.11ac Wave 2 Multiuser MIMO (MU-MIMO) beamforming, high speed E410 Enterprise access point future proofs your Indoor access point deployments and is perfect for Schools, Indoor public spaces, Malls, Hotels and Resorts (Hospitality), Coffee shops, Multi-dwelling units (MDUs) or just about any place indoor that needs reliable high performing access points.
High Performance Enterprise
Affordable enterprise-grade high-density 802.11ac Wave 2 indoor access points for schools, indoor public spaces, malls, hotels and resorts, coffee shops, multi-dwelling units (MDUs), or just about any place indoors that needs reliable, high-performance indoor Wi-Fi.
A powerful business wireless internet solution targeted for small and medium-sized enterprises.
- cnMaestro
Cambium’s cnMaestro Cloud-based or on-premises controller offers zero touch onboarding, inventory tracking, monitoring, easy configuration, dashboard views, and more. - Powerful simplicity
No controller. No expensive licensing fees – just seamless controller-less roaming for up to 1,000 clients. - Monetize your Wi-Fi service
Create fast guest access features with semi-customized splash pages, and time- and rate-limited access. Access options like social login and vouchers available with purchase are ideal for guest Wi-Fi in hotels, coffee shops, and offices. - Indoor/Outdoor Wi-Fi mesh for flexibility
Customize and expand networks easily with wireless mesh that can integrate or cover multiples of both the indoor and outdoor modules. - High capacity coverage
The plenum-rated with 256-user capacity and up to 16 SSIDs ensures network adaptability to the dynamics of growing demand, with advanced features like airtime fairness, Automatic Channel Scanning (ACS), and high client device speeds with band steering. - License-free affordable quality
All cnPilot e-series AP sales include a free controller, no AP management license fees, and no hidden charges.
The cnPilot Wi-Fi Network
Specifications
Access Point Specifications | |
Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
MIMO Streams | 2x2 MIMO streams |
Range | 180 m (650 Ft) |
Concurrent Clients | 256 |
Max Data Rates | 1.3 Gbps (1,267 Mbps) |
SSID | 16 SSIDs across 2 radios |
Antenna gain | 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz) |
Multi-Hop Mesh | Yes. Supported on Indoor & Outdoor access points. |
Polarization | Dual-linear |
Antenna Coverage | Omni (360°) |
Ethernet Ports | One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps) |
Frequency bands | 2.4 GHz: 2400-2484 MHz |
Power Supply | Standard 802.3af injector (supplied) or any PoE switch |
Power Consumed | 13W (max) |
Dimensions | 170 x 170 x 41 mm (17 x 17 x 4.1 cm) |
Weight | 384grams (0.384kg) |
Temperature | 0°C to +50°C |
LED | Single LED window with tri color (Amber, Blue, Green) display |
Max TX Power | +25 dBm |
Physical Lock | Kensington key hole |
Wi-Fi Features | |
Controller modes |
|
Secure WLAN |
|
Hotspot 2.0/Passpoint | Yes |
Captive Portal/ Guest Access |
|
Authentication |
|
Accounting | Yes. Supports RADIUS based accounting to multiple AAAs |
Scheduled SSID | Turn SSID ON/OFF on a daily/weekly/time of day basis |
VLAN |
|
Data Limiting | Dynamic rate limiting of client traffic per SSID & per client |
Subscriber QoS | WMM |
Client Isolation | Yes |
Controller-Less Fast Roaming | Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming Disconnect for sticky clients |
Airtime Fairness | Yes |
Meshing | Multi-hop meshing supported (3) |
ACS: Automatic Channel Selection | Yes. Set at start or run periodically |
NAT | Yes |
DHCP Server | Yes |
Firewall | Yes. NAT logging |
ACL, DNS-ACL | Yes. L2, L3 or DNS based access control |
Band Steering Band Balancing | Yes |
Airtime Fairness | Yes |
Tunneling |
|
Tools |
|
Services |
|
APIs | Presence Locationing API |
Certifications | FCC, ETSI, CE |
cnMaestro Wi-Fi Controller | |
Cloud & On-Premises | Available in the Cloud or as a downloadable VMware® image (Onpremises) |
Common Manager | Manage both cnPilot and Cambium’s ePMP and PMP 450 radios |
Troubleshooting | Single screen wireless view, showing Wireless backhaul, Access point & clients |
Frictionless On-Boarding | Secure large scale bulk onboarding |
Device Inventory | Inventory tracking and reporting |
Monitoring | Insightful status monitoring; rich visibility to device lifecycle |
Key Stats Monitoring | 7 day historic stats |
Portal Hosting | Setup Hotspot portals segmented by SSIDs |
Voucher | Time and Rate limited Guest access portals with Vouchers for 1,000 client devices |
Social Login | Facebook, Google |
Site Grouping | Group sets access points for convenient management |
Client Insight | Shows client history with aggregate client manufacturer views |
Multiple Admins | Multiple admin provisioning per account |
Software Upgrade | Ability to upgrade multiple WiFi devices at a time |
