Overview

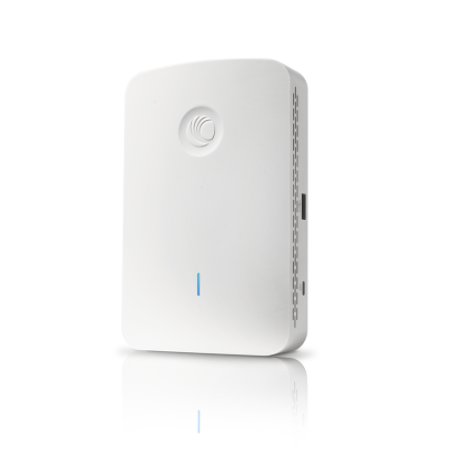

The Cambium Networks cnPilot™ e425H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
High Performance Enterprise
Affordable enterprise-grade high-density 802.11ac Wave 2 indoor access points for schools, indoor public spaces, malls, hotels and resorts, coffee shops, multi-dwelling units (MDUs), or just about any place indoors that needs reliable, high-performance indoor Wi-Fi.
A powerful business wireless internet solution targeted for small and medium-sized enterprises.
- cnMaestro
Cambium’s cnMaestro Cloud-based or on-premises controller offers zero touch onboarding, inventory tracking, monitoring, easy configuration, dashboard views, and more. - Powerful simplicity
No controller. No expensive licensing fees – just seamless controller-less roaming for up to 1,000 clients. - Monetize your Wi-Fi service
Create fast guest access features with semi-customized splash pages, and time- and rate-limited access. Access options like social login and vouchers available with purchase are ideal for guest Wi-Fi in hotels, coffee shops, and offices. - Indoor/Outdoor Wi-Fi mesh for flexibility
Customize and expand networks easily with wireless mesh that can integrate or cover multiples of both the indoor and outdoor modules. - High capacity coverage
The plenum-rated with 256-user capacity and up to 16 SSIDs ensures network adaptability to the dynamics of growing demand, with advanced features like airtime fairness, Automatic Channel Scanning (ACS), and high client device speeds with band steering. - License-free affordable quality
All cnPilot e-series AP sales include a free controller, no AP management license fees, and no hidden charges.
The cnPilot Wi-Fi Network
Specifications:
cnPilot E425H Specifications | |
Access Point Specifications | |
SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
Max Phy Rate | 2.4 GHz radio: 300 Mbps |
Ethernet Ports | Three IEEE Gigabit Ethernet auto sensing One GE is 802.3af PSE port |
Antenna | Integrated dual polarized, omnidirectional 4dBi (2.4GHz) 4.29dBi (5GHz) |
Max EIRP | 2.4 GHz: 25 dBm |
Mount Options | Standard mount single gang J-box bracket included. Dual gang J-box bracket and flush box optional |
Power | Typical, no PSE load: 9w |
Physical Environmental | USB 2.0 |
Certifications | WiFi Alliance 80211a/b/g/n/ac, PP2.0 in process FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
WLAN and Network Specifications | |
Controller modes | Controller-less standalone |
WLAN | 100 clients, 16 SSIDs |
Captive Portal | Hosted on cnMaestro Controller |
Authentication | Hotspot 2.0/Passpoint 2.0 |
Accounting | Yes. Supports RADIUS based accounting to multiple AAAs |
Scheduled SSID | Turn SSID ON/OFF on a daily/weekly/time of day basis |
Guest Access | Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro |
Time/Data Limit | Time, Rate, Throughput limit per SSID |
Subscriber QoS | WMM, client isolation network wide |
Fast Roaming | 802.11r, OKC, Enhanced roaming |
Mesh | Multi-hop, either band |
Channel Selection | autoTune: Manual, or automatic |
Auto Tx Power | AutoRF: controller-less transmit power |
Network | NAT, NAT logging firewall, DHCP server |
Tunnel | L2TP, L2oGRE, PPPoE |
Tools | Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection |
Services | NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure |
API | RESTful management and statistics API |
