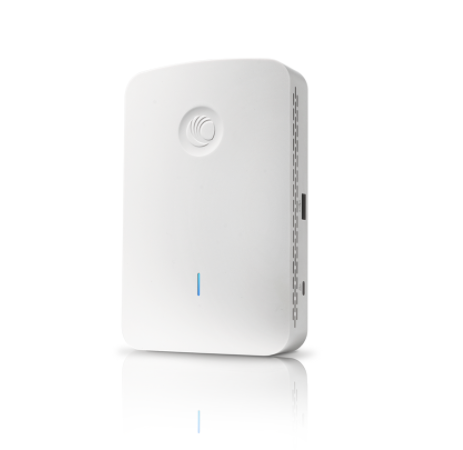

CnPilot E430H

cnPilot e430H Specifications

Access Point Specifications

Standards

IEEE 802.11a/b/g/n/ac Wave2
IEEE 802.11d/e/h/i/k/r/u/v/w
Modulation: BPSK, QPSK, CCK, 16/64/256-QAM
Radio modes : DSSS, OFDM

Frequency Bands

2.400 to 2.2484 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz

MIMO, Streams

2x2:2 MU-MIMO

Power Supply

802.3af PoE Injector, or PoE switch. 48V DC.
802.3at or PoE+ if using PoE-Out

Beamforming

Supported

Dimensions

14.7 x 9.4 x 3.4 cm (5.7 x 3.7 x 1.3 Inch)

Channel Width

20MHz, 40MHz, 80MHz

Weight

390 g (0.86 lb)

Concurrent Clients

256

Operating Temperature

0°C to +45°C (+32°F to +113°F)

SSIDs

16

Operating Humidity

5% to 95% non-condensing

Transmit Power

2.4GHz : 23dBm
5GHz : 21dBm

Power Consumed

9W (typical)
25W (max, with PoE-out)

Antenna Gain

2.4GHz : 3.5dBi
5GHz : 4.9dBi

LED

Tri-color software controlled LED

Max Data Rate

2.4GHz : 400Mbps
5GHz : 867Mbps

Secure Mounting

Kensington Key Slot

Antenna

Omnidirectional, integrated

MTBF

1,025,801 hrs at 50C, 2,828,686 hrs at 25C

Bluetooth

Bluetooth 4 BLE Radio, 3.3dBi antenna

Ethernet Ports

Four auto-sensing MDIX Gigabit Ethernet (10/100/1000 Mbps). One pass-through Port.

Reset Button

Supported

Radio Features

Maximum ratio combining (MRC)
Cyclic delay/shift persity (CDD/CSD)
Space-time blocking coding (STBC)
Low-density parity check (LDPC)
Packet Aggregation: A-MPDU, A-MSDU

Certifications

FCC, CE, IC, UL, WEEE/RoHS compliance

Wi-Fi Alliance

Wi-Fi certified a,b,g,n, ac
WPA2 – Enterprise, Personal
WMM

Mounting Options

In wall single-gang bracket included.
Accessories available: dual gang bracket, on-wall bracket, desktop stand.

Wi-Fi Features

Management Modes

cnMaestro cloud managed
cnMaestro on-premises VM controller managed
Autopilot (AP as controller)
Standalone with AP GUI (http/https), CLI (telnet/ssh)

Wireless Security

WPA-TKIP, WPA2-AES, 802.11i
WPA-PSK, WPA2-PSK, WPA2-Enterprise
802.1x Authentication with various EAP types (EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAPMSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAPAKA, EAP-AKA’, EAP-FAST
Protected Management Frames (802.11w)

RF Management

AutoRF automatically manages channel and power

Dynamic SSID Service

By time/date, by monitored host.

Guest Access Captive Portal

cnMaestro Controller Portal.
Integrates with 3rd party Guest Access Portals.
Built-in Portal on AP.
LDAP & RADIUS authentication.
Walled Garden with DNS whitelist.
Wireless and Wired Clients supported.

MAC Authentication

On-AP MAC filtering list.
On-Controller MAC filtering list.
RADIUS MAC Authentication.
MAC Authentication fallback to Captive Portal

Rate Limiting

Per-client, Per-WLAN static and dynamic rate limiting

Access Control Lists

Layer-2, Layer-3, DNS

Client Isolation

On AP, Network-wide.

3G/4G/LTE Offload

Passpoint (Hotspot 2.0)

Fast Roaming

802.11r, Opportunistic Key Caching, Enhanced Roaming

DHCP Relay

Supported, with Option-82 customization

Airtime

Airtime Fairness, Band Steering, Band Balancing

NMS Monitoring

SNMP v1, v2c, v3

AAA Support

RADIUS Authentication, Accounting, Dynamic Authorization (CoA, DM). Server failover, load-balancing

Client APIs

Client Presence/Location API DNS, NAT and TCP Connecting Logging

QoS

802.11e/WMM QoS. DSCP/ToS mapping.

Time Synchronization

Auto (from controller), NTP

Ethernet (L2) Services

802.1p/802.q, RADIUS assigned VLAN, VLAN per SSID, VLAN pooling. LLDP. IGMP Snooping (V1/V2/V3).

Troubleshooting Tools

Packet Capture, Spectrum Analyzer, Ping, Traceroute, Syslogs

Mesh

WDS Mesh with Single and Multiple radio hops.

Traffic Tunnels

L2TP, L2oGRE, PPPoE

Network Services

NAT, DHCP Server
